Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4500*1550*2600mm
-
Machine Weight:
-
3500 kg
-
Bucket capacity:
-
0.5m³
-
Marketing Type:
-
New Product 2023
-
Product name:
-

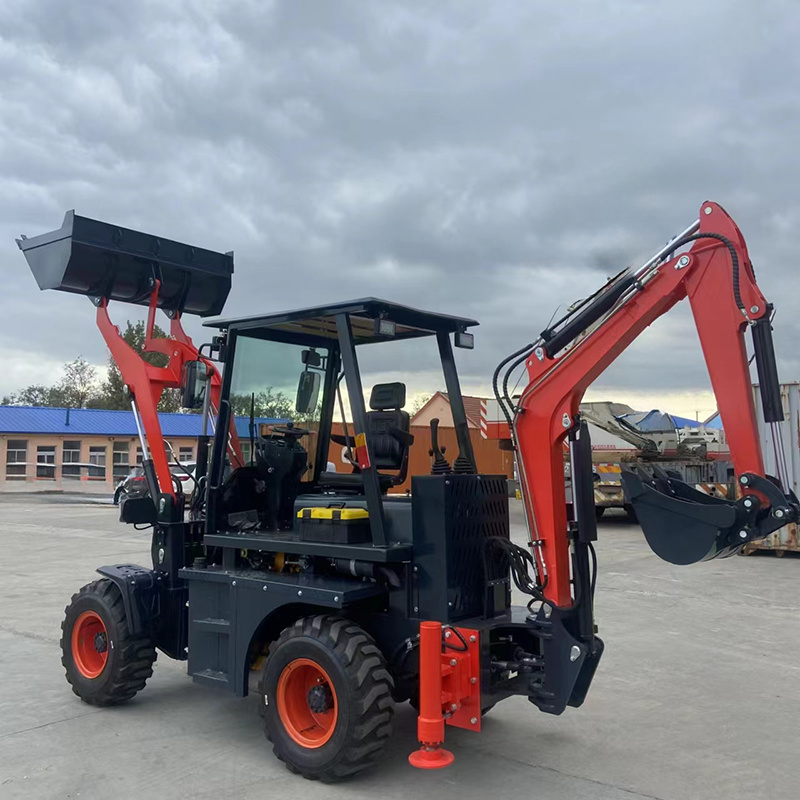

50HP backhoe Loader
-
Wheel Base:
-
2200mm
-
Engine:
-
Yunnei 490
-
Engine power:
-
37kw
-
Operating weight:
-
3500kg
-
Bucket Capacity:
-
0.5CBM
-
Max.digging radius:
-
3920mm
-
Max. Dumping Height:
-
2440mm
-
Tire:
-
12-16.5
-
Certification:
-
CE COC EPA ISO
Quick Details
-
Engine Brand:
-
YUNNEI
-
Power:
-
37 KW
-
Brand Name:
-
GOCHA
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4500*1550*2600mm
-
Machine Weight:
-
3500 kg
-
Bucket capacity:
-
0.5m³
-
Marketing Type:
-
New Product 2023
-
Product name:
-
50HP backhoe Loader
-
Wheel Base:
-
2200mm
-
Engine:
-
Yunnei 490
-
Engine power:
-
37kw
-
Operating weight:
-
3500kg
-
Bucket Capacity:
-
0.5CBM
-
Max.digging radius:
-
3920mm
-
Max. Dumping Height:
-
2440mm
-
Tire:
-
12-16.5
-
Certification:
-
CE COC EPA ISO
Products Description
Why Choose Our
BACKHOE LOADER
？
1. Adopted four wheel drive, hydraulic torque converter, hydraulic steering system
2.It is extensively used in the road maintenance, farms and developments, getting clay for making brick, piping builds, the cable builds, parking virescence and the excavating of the road opens to dig,breaking up.etc.
3.The Yuchai engine: low noise, low exhaust gas, low west, green environmental protection,driving motive, good reliability.
4.The spirit valve control take type brake system and parking brake system move two unite as one,when there is trouble in the gas brake system, it can make in time brake automatically,so it is more safety.
5.Rear and front body,with small rotary radius,hydraulic steering,comfy and convenient to operate.heavy duty hinge joint and hydraulic pipe protection
6.Lifting enlarge operator cabin with secure glass and wide field,comfortable steering wheel,high quality seat and suitable joystick control
7.The boom adopts larger section,improving the rigidity and deformation resistance.standard excavator bucket with strengthened and thicker steel
Details Images
ROPS/FOPS Cabin with Certificates
Equipped with powerful lateral movement and telescopic arm functions.
Deluxe interior, adjustable suspension seat
A highly secure packaging line that will not be easily damaged
Engine configuration
Four-wheel Steering
|
Overall Dimensions
|
|
|
Engine
|
|
|
||||
|
1
|
Dimensions (mm)
|
6150*2350*3763
|
1
|
Model
|
Yudong 4105 booster
|
||||
|
2
|
Wheelbase (mm)
|
2200
|
2
|
Type
|
Turbocharged
|
||||
|
3
|
Wheel base (mm)
|
1850/2000
|
3
|
Rated power (KW)
|
85
|
||||
|
4
|
Minimum ground clearance (mm)
|
300
|
4
|
Rated speed (r/min)
|
2400
|
||||
|
5
|
Minimum turning radius (mm)
|
6580
|
5
|
Number of cylinders-inner diameter
|
4-105
|
||||
|
Performance parameters
|
|
|
Transmission system
|
|
|
||||
|
1
|
System pressure (Mpa)
|
28
|
1
|
Gearbox
|
Fixed shaft power shift
|
||||
|
2
|
Machine weight (kg)
|
8320
|
2
|
Gears
|
Front 2 Rear 2
|
||||
|
3
|
Maximum vehicle speed (Km/h)
|
22/38
|
3
|
Hydraulic torque converter
|
YJ280
|
||||
|
4
|
Maximum gradeability (°)
|
35
|
|
|
|
||||
|
Mining parameters
|
|
|
Bridge
|
|
|
||||
|
1
|
Maximum retractable excavation depth (mm)
|
4000/5500
|
1
|
Type
|
Level 1 wheel-side reduction bridge
|
||||
|
2
|
Excavation unloading height (mm)
|
4500/5500
|
Tire
|
|
|
||||
|
3
|
Maximum digging radius (mm)
|
5800/7100
|
1
|
Size
|
14-17.5/19.5L-24
|
||||
|
4
|
Maximum lifting height (mm)
|
6060/7200
|
2
|
Service brake
|
Air cap oil caliper disc brake
|
||||
|
5
|
Bucket capacity (m3)
|
0.3
|
3
|
Parking brake
|
Handbrake
|
||||
|
6
|
Excavator rotation angle (°)
|
190
|
Oil volume
|
|
|
||||
|
Loading parameters
|
|
|
1
|
Fuel tank (L)
|
100
|
||||
|
1
|
Maximum unloading height (mm)
|
2742
|
2
|
Hydraulic oil tank (L)
|
100
|
||||
|
2
|
Maximum unloading distance (mm)
|
1062
|
Other
|
|
|
||||
|
3
|
Bucket capacity (m3)
|
1
|
|
Drive type
|
four-wheel drive
|
||||
|
4
|
Rated loading capacity (KG)
|
2500
|
|
Transmission type
|
hydraulic transmission
|
||||
