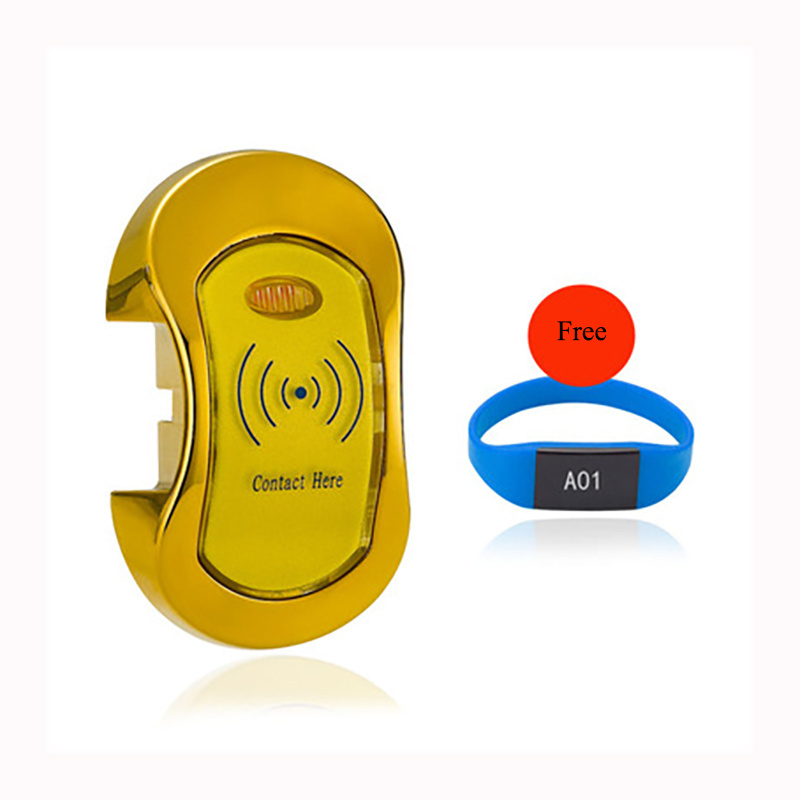

Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106
Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106
Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106
Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106
Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106
Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106
Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106
Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106

Korean Digital RF Door Lock For Metal Cabinet Door Lock EM106

FOB Reference Price: Get Latest Price
≥10 Pieces
US $8.8
≥200 Pieces
US $7.8
≥500 Pieces
US $6.8
≥2000 Pieces
US $5.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
03
Type:
digital lock cabinet
Material:
RESIN FINISH
Warraty:
1 year
Certificate:
CE,FCC
Master key:
EM Card
Name:
Keyless cabinet lock

Quick Details

Door Type:
Wood door
Place of Origin:
Guangdong, China
Brand Name:
ZIYUE
Model Number:
03
Type:
digital lock cabinet
Material:
RESIN FINISH
Warraty:
1 year
Certificate:
CE,FCC
Master key:
EM Card
Name:
Keyless cabinet lock
MASS_APP4_526_BEGIN

MASS_APP4_526_END

Korean Digital RF Door Lock For Metal Cabinet  Door Lock EM 106

Product Description
1.Power Supply: DC6V, use of 4 pieces of  5# AAA battery
2.Warning voltage: <DV4.8V with lack of voltage indications and can use about 200 more times.
3. Static current : < 25uA
4.Dynamic Power Supply: < 150mA.
5.Lifetime of battery: can open more than 100,000  times
6.Latch length: 15mm.
7.Door thickness: 15-30mm.
8.Working temperature: -20 °C ~ +70°C
9. Working humidity:≤95%

10.Colors:  Gold, Silver

11. Password /Card unlock

Cabinet lock   features:

1.Card type: EM contactless card ,the inductive distance is more than 20mm.

2.Two open solution : single card solution and dual card solution

3.Set up management card and guest card just on the cabinet lock but not need from the computer

4.Sound and light indicate when it works ,bule light shinging when low battery

5.Mortise will come back automaticly when there is obstruction and will indicate there is obstruction

6.Deadbolt function

Functions:

Four levels of management: mother card, manager card, service card and guest card.

Mother Card: Only one mother card in the same system, to issue or cancel service card and guest card.

Manager Card: open all locks in the system.

Service Card: open locks in certain area.

Guest Card: open one certain room.

Usage options: service card and guest card open lock independently or have to be used together.

With low voltage indication and provided with power supply.

Password /Card unlock


Emergency openning:
a. Use master card to open
b. Use override mechanical key to pen. Take off the reader panel and find the cylinder inside the panel and open it with mechanical key.
c. Use outside battery box to open the locker when the battery power is low.

Packaging & Shipping

1. FAST SHIPPING from our Factory!

2.Item shipped in 1-5 working days after payment  depends on the quantity of the order.

3.Item shipped by UPS,FedEX,DHL express  or by Air or by Sea, depending on size and weight of total order.

4.Tracking number will be sent to you as soon as we ship the goods.

5.Price term:Ex-work, or FOB shenzhen/Hongkong
6.Payment:T/T, Western Union,MoneyGram,Paypal

Usage:
