Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RuiJie
-
Voltage:
-
380V50Hz or customized
-
Dimension(L*W*H):
-
16*2*2.5M
-
Power (kW):
-
100
-
Weight:
-
8000 KG
-
Size Calibration Means:
-
Vacuum
-
Water consumption:
-
1CBM /H
-
Total power:
-
100KW
-
Processing Type:
-
Extruding Machine
-
Product Type:
-
Plastic Pipe
-
Certification:
-
CO, FORM E
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RuiJie
-
Voltage:
-
380V50Hz or customized
-
Dimension(L*W*H):
-
16*2*2.5M
-
Power (kW):
-
100
-
Weight:
-
8000 KG
-
Size Calibration Means:
-
Vacuum
-
Water consumption:
-
1CBM /H
-
Total power:
-
100KW
-
Processing Type:
-
Extruding Machine
-
Product Type:
-
Plastic Pipe
-
Certification:
-
CO, FORM E
-
Marketing Type:
-
Ordinary Product

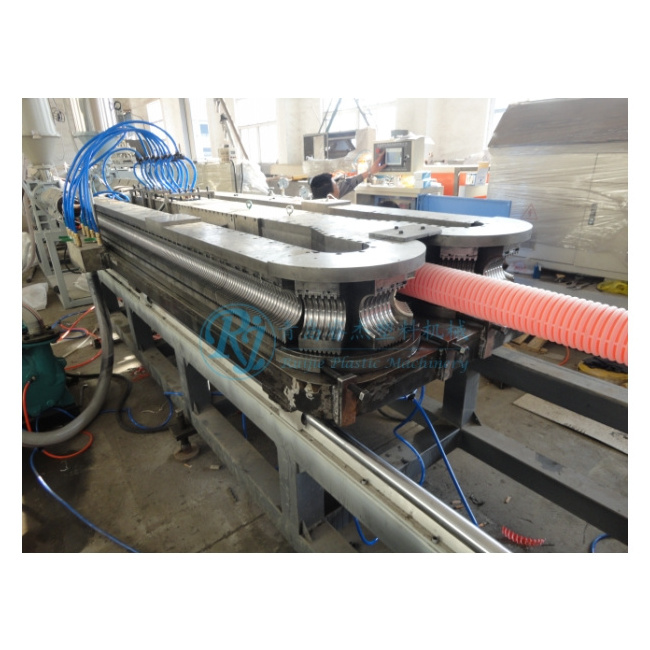

HDPE Double Wall DWC Corrugated Pipe Making Machine Water Pipe Production Line
Production Line Structural Features
1. Two high efficient co-extrusion single screw extruders
2.It adopts excellent screw and new groove sleeve design,which makes the extruder with bellow advantages: high plasticization rate,smooth melt, stable production process, and enable the inside and outside layer of the pipe to use different materials
3. Corrugation forming block is made by special alloy material. It has high precision, intensity and outstanding heat emission.
4. Nitrogen treatment of the mould surface. There is wall thickness adjusting device in the mouth mould and can produce pipes of different raw materials.
5. It has a flaring function, which can reduce the investment and enhance efficiency.
6. The production line adopts advanced Simens PLC control system, with human-machine interface operating system, has high automaticity, easy operation.
Specification
|
Name |
HDPE Double Wall Corrugated Pipe Machine |
||
|
Weight |
Customized |
Dimension |
Customized |
|
Type |
QDRJ |
HDPE Diameter |
50mm- 800mm |
|
Processing Type |
Pipe Extrusion |
Raw Material |
HDPE |
|
Pipe Diameter Spec |
Customized |
Max Speed(m/min) |
10m or Customized |
|
Screw Design |
Single Screw |
Condition |
New |
|
Warranty |
1 Year |
Certificate |
ISO CE SGS UL |
|
Material or other specifications can be according to customers' requirements. |
|||
Pipe Characters
1. Chemical stability:
As lack of polarity in the molecules, the HDPE material has good performance in chemical stability. In spite of few oxidants, most of the chemical medium can not damage. Corrosion resistant and anti stains. The interior flow capacity not be reduced after long time usage. HDPE pipe is a kind of environmental product.
2. Formidable joint strength:
Mainly refer to the thermal welding. For eg. Few joints, no leak.
3. Convenient installation:
Light weight and ease of installation. Can reduce installation cost, especially in bad environment.
4. Higher flow capacity:
Smooth interior walls result in lower pressure loss and higher volume.
5. Better wrap and bend ability:
The vertical allowable bending benefits the construction on fluctuant earth surface.
6. Low temperature preservation:
Anti-embrittlement temperature reaches -70oC,and under common low temperature (-30 oC), no need to adopt special defending or protecting. Convenient to install in winter.
In the mean time, the pressure resistant test can stand 2.5 times nominal pressure by water hammer.
7. Corrosion resistant:
Germany lab ever proofs anti-corrosion of the HDPE material is several times than that of copper.
8. Longevity:
More than 50 years under proper use.
Application
The double wall corrugated pipe is widely used in the fields of highway, railway roadbed, subway engineering, waste landfill, tunnel, green belt, sports field
Our PE PP PVC Single Wall corrugated Pipe Production Line
Contact: +0086-15506393026(Wechat and Whatsapp)
Q: . Why I choose your company?
A: 1) We are one of the leading manufacturers of extruder machinery .
2) Our company has made extruder machine about 14 years with strong experience and advanced techn ology.
3) Best Quality & Best Service with Competitive price . 1 year guarantee and lifetime maintenance
4) We have Professional technical team s , and will supply 24 hours service s.
Q: What should we prepare for Machine ?
A: You should prepare raw material, workshop, water line, electric line, compress air (if you need I can help you buy air compressor) .
We would supply workshop layout drawing for you .
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Qingdao city, Shandong province, you can fly to Qingdao AirPort . When you confirm the flight No. and time, please tell me then we will pick you up at Airport.
Q: If my machine can not work when I receive it, what will your factory do?
A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.
Q: How can I believe your factory and machines.
A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished for your check ing , if it do not reach your demands, we will change, or even give back your deposit.
