The CES-LN-02N series is widely used in the hazardous locations, such as gas station, factory workshop, petrochemical and so on.
It is popular product in our company, widely used in the all kinds of areas, and this product is a high sales volume of our
company every year. As picture showed is Explosion-proof Lighting Project in Canada,
- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
2700-6500, COOL WHITE
-
Input Voltage(V):
-
100-277
-
Product Weight（kg）:
-
10.5
-
CRI (Ra>):
-
73
-
Lamp Luminous Flux(lm):
-
7200
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Lamp Body Material:
-
ADC12 die cast aluminum alloy
-
Other Material:
-
4mm thickness tempered glass+304SS screws
-
Reflector:
-
white reflector/silver reflector
-
Led Driver:
-
Taiwan Meanwell driver
-
OEM:
-
Available
-
Operate Temperature:
-
-50~55
-
Light Efficacy:
-
135lm/w
-
Warranty:
-
5 years
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
120
-
Warranty(Year):
-
5-Year
-
Working Temperature(℃):
-
-40 - 50
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
2700-6500, COOL WHITE
-
Input Voltage(V):
-
100-277
-
Product Weight（kg）:
-
10.5
-
CRI (Ra>):
-
73
-
Lamp Luminous Flux(lm):
-
7200
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Lamp Body Material:
-
ADC12 die cast aluminum alloy
-
Other Material:
-
4mm thickness tempered glass+304SS screws
-
Reflector:
-
white reflector/silver reflector
-
Led Driver:
-
Taiwan Meanwell driver
-
OEM:
-
Available
-
Operate Temperature:
-
-50~55
-
Light Efficacy:
-
135lm/w
-
Warranty:
-
5 years
Product Description

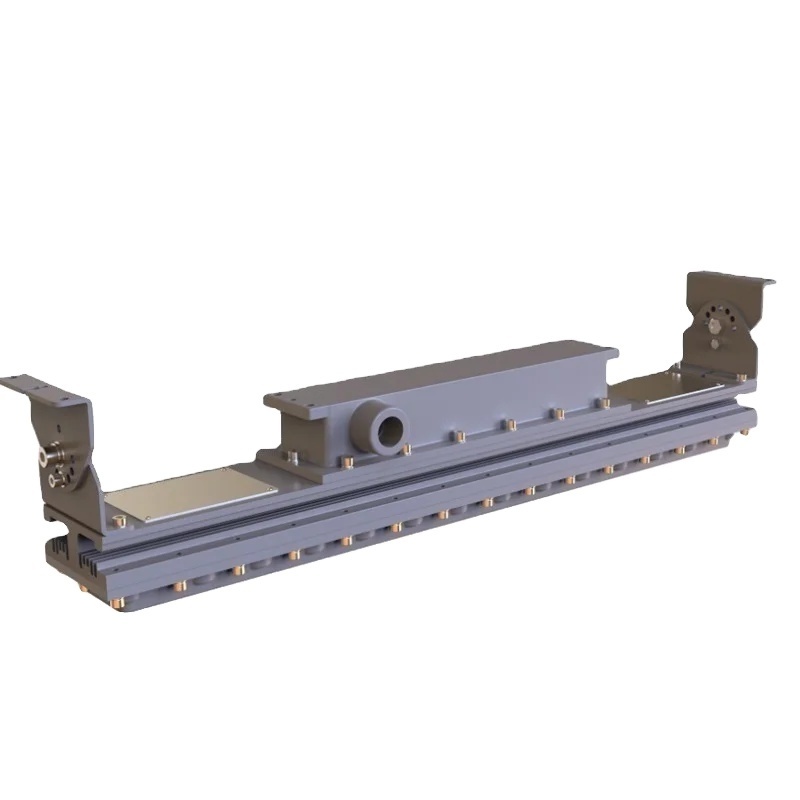

CES-LN-02N Series
Indonesia
- Explosion Proof LED Flood Light
- Explosion Proof LED Flood Light
Netherlands - Seaside Oil Refinery
CESP LED Explosion proof Lights
for Powder Magazine in Chile
for Powder Magazine in Chile
Natural Gas Hanling Facility in Malaysia- 120W Led EX-proof Light Project
Australian Gas Station Lighting - CES-J100
CES-J series is used for
Oil depot lighting
WIDE APPLICATIONS
The CES-LN-02P series is widely used in the hazardous locations, such as gas station, factory workshop, petrochemical plant and so on.
It is the most popular product in our company, this product is a high sales volume of our company every year. As picture showed is LN-02P Linear light for LNG plant in Singapore, it is also used in an China National Offshore Oil Corporation Lighting Engineering Project - CNOOC . The image below is a physical images of all kinds of projects.
It is the most popular product in our company, this product is a high sales volume of our company every year. As picture showed is LN-02P Linear light for LNG plant in Singapore, it is also used in an China National Offshore Oil Corporation Lighting Engineering Project - CNOOC . The image below is a physical images of all kinds of projects.
CES-EX-LN-02P Linear Light replace to the ex-proof fluorescent light in Singapore
Control Room - United States
CES-EX-LN-02P Ex-Proof Linear Light
CES-EX-LN-02P Ex-Proof Linear Light
Italy - these luminaries are installed in explosion-proof boxes
CES-EX-LN-02P
CNOOC -
China National Offshore Oil Corporation Lighting Engineering Project.
Product Paramenters
Parameters
|
Model
|
Power(W)
|
Input voltage : AC 100V-277V; Frequency: 50/60 Hz;
|
|
|
|
|
|
|
||||||
|
|
|
CCT: 3000K/4000K/6500K
|
|
|
|
|
|
|
||||||
|
|
|
Power factor:0.97
|
|
|
|
|
|
|
||||||
|
|
|
Luminous flux (LM)
|
Light efficiency (Lm/W)
|
LEDs Chip
|
LEDs Type
|
LED Driver
Model
|
Weights
(kg)
|
Lengths
(m)
|
||||||
|
CES-EX-LN-02-50A
|
50
|
6000-7000
|
120-140
|
224PCS
|
3030(6V)
|
SS-50H-42HL
|
10
|
0.2
|
||||||
|
CES-EX-LN-02-40A
|
40
|
4800-5600
|
|
|
|
|
|
|
||||||
|
CES-EX-LN-02-36A
|
36
|
4320-5040
|
|
|
|
SS-35H-42HL
|
|
|
||||||
|
CES-EX-LN-02-30A
|
30
|
3600-4200
|
|
|
|
|
|
|
||||||
|
CES-EX-LN-02-36B
|
36
|
4320-5040
|
|
112PCS
|
|
SS-35H-42HL
|
5.5
|
0.6
|
||||||
|
CES-EX-LN-02-30B
|
30
|
3600-4200
|
|
|
|
|
|
|
||||||
|
CES-EX-LN-02-20B
|
24
|
2400-2800
|
|
|
|
|
|
|
||||||
T-Class
|
Ta
Model
|
-40°C ~ 45°C
|
-40°C ~ 50°C
|
-40°C ~ 55°C
|
|
CES-EX-LN-02N-50A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-40A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-36A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-30A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-36B
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-30B
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-20B
|
T6
|
T6
|
T6
|
