Meishuo MPR 0.2W 5A 250vac power mini 5 pin PCB 5v 3a sensitive electronic relay 12v micro 4pins rele for AI robot

Meishuo MPR 0.2W 5A 250vac power mini 5 pin PCB 5v 3a sensitive electronic relay 12v micro 4pins rele for AI robot

FOB Reference Price: Get Latest Price

≥5 Pieces

US $0.2

≥50000 Pieces

US $0.19

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: MPR

Color:: Black

Contact Arrangement:: 1A Normally open

Contact Material:: Silver Alloy

Max Switching Current:: 10A

Approvals:: TUV CQC UL

Mechanical Life:: 1000000 OPS

Ambient Temperature:: -40℃~+105℃

Terminal Form:: PCB

Unit Weight:: Approx 3g

Coil Power:: 0.2 W

Quick Details

Contact Load:: Low Power

Place of Origin:: Zhejiang, China

Brand Name:: MEISHUO

Model Number:: MPR

Color:: Black

Contact Arrangement:: 1A Normally open

Contact Material:: Silver Alloy

Max Switching Current:: 10A

Approvals:: TUV CQC UL

Mechanical Life:: 1000000 OPS

Ambient Temperature:: -40℃~+105℃

Terminal Form:: PCB

Unit Weight:: Approx 3g

Coil Power:: 0.2 W

Product Description

Meishuo MPR 0.2W 5A 250vac power mini 5 pin PCB 5v 3a voltage sensitive electronic relay 12v micro 4pins rele for AI robot

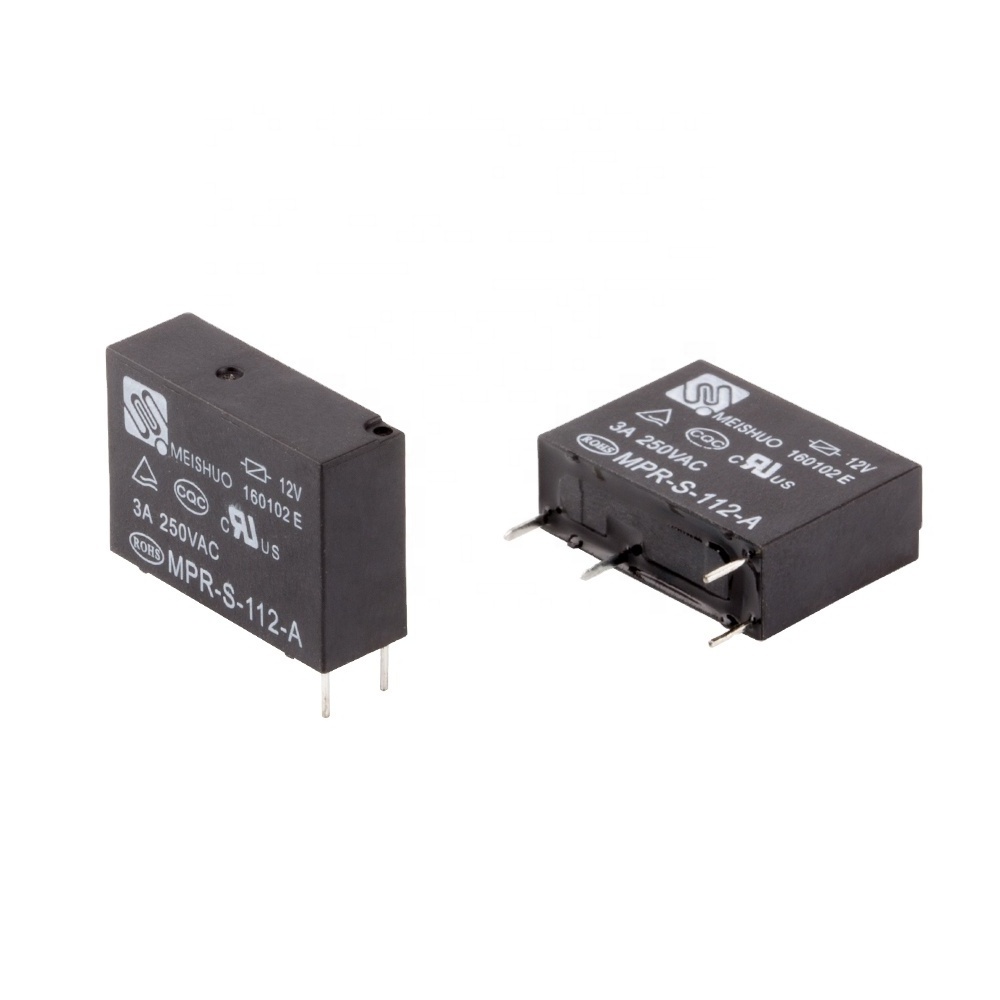

* Model: MPR-S-112-A / MPR-S-105-A/ MPR-S-124-A

* 5A contact switching capability
* Height not exceed 7.2mm
* High sensitive coil powe r only 200mW
* Outline dimensions : 20.5*7.2*15.0 mm

Naming rules

Detailed Images

* 5A and 10A Switching Capability

* 1 form A configuration

* Applicable to Smart Home appliances

* Outline Dimensions: 20.5×7.2×15.0mm

* Rated Load : 10A 250VAC/30VDC

5A 250VAC/30VDC

3A 250VAC/30VDC

* Working current: 10A

* Terminal Form: PCB

* Coil Power: 0.2W

Information Sheet

Product packaging

Package of MPR

100 pcs/plastic box

5 plastic boxes/inner box

4 inner boxes/master box

2000 pcs/ master box

MEAS: 44.5*37*16.5cm

G.W.: 7KGS

N.W.: 6KGS
