Quick Details
-
Warranty:
-
1 Year
-
Color:
-
Customer Specifications
-
Certificates:
-
OIML
-
Flow meter:
-
1-25L/min
-
Voltage:
-
220V/380V
-
LOGO:
-
Customer Specifications
-
Material:
-
Stainless Steel
-
Accuracy:
-
0.5%
-
Application:
-
Gas Station
-
Ambient Temperature:
-
-40C~+55C
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Eaglestar
-
Model Number:
-
EGL1
-
Warranty:
-
1 Year
-
Color:
-
Customer Specifications
-
Certificates:
-
OIML
-
Flow meter:
-
1-25L/min
-
Voltage:
-
220V/380V
-
LOGO:
-
Customer Specifications
-
Material:
-
Stainless Steel
-
Accuracy:
-
0.5%
-
Application:
-
Gas Station
-
Ambient Temperature:
-
-40C~+55C
Maybe you also like:
| 1. Fuel pump and dispenser | 2. Auto tank gauging |
| 3. Fuel management system | 4. Container gas station |
| 5. LPG/CNG/LNG dispenserand skid station | 6. PE pipe |

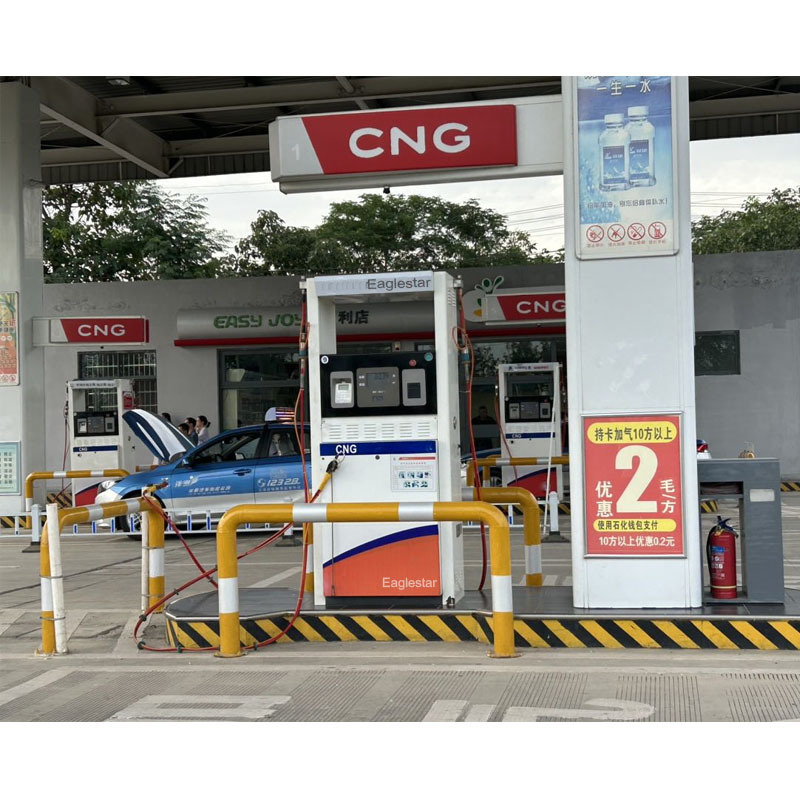

CNG Description
CNG dispenser with function of trade settlement and network management,used for refueling to NGV(Natural Gas Vehicle)in CNG station:
Function
- Display unit price,volume and sum with high brilliance back light in both two-side LCD;
- Operation interface adopts big LCD,display including operator,driver,vehicle type,flow,pressure,temperature,IC card balance and so on;
- Set of all parameters by encryption,parameters protected by password setup function;
- Each hose(motherboard)can save 12,000 transaction,and supporting inquiry and print historical data;
- Refuel by preset volume and sum,stopped by integral sum at any time;
- Inquiry shift total volume,shift total sum and total totalizer;
- Dispenser with IC card has function of IC card management,auto settlement and favorable unit price(Preset IC card interface in dispenser without IC card);
- Monitor malfunction automatically and display Malfunction code with maintenance method;
- Pressure switch automatically,which assures take out CNG from storage system accurately and effectively;
- Shut down solenoid valve and display reason while over pressure,lose pressure and overflow;
- Monitor malfunction of mass flow meter and stop refueling while mass flow meter has malfunction;
- Count and record solenoid valve malfunction lost gas volume by using optional monitor system;
-
Preset communication interface,inspect information including refuel and dispenser performance in real time by using optional management system;
Model
| Standard flow | single line,single hose | single line,dual hose |
| two line,single hose | two line,dual hose | |
| three line,single hose | three line,dual hose | |
| High flow | single line,single hose | single line,dual hose |
| two line,single hose | two line,dual hose | |
| three line,single hose | three line,dual hose |
|
Model |
Eaglestar-cng |
Flow Range |
1~25kg/min |
|
Medium |
CNG(Compressed Natural Gas) |
Rated power |
Around 180W |
|
Accuracy |
0.5% |
Measuring unit |
kg,Nm³ |
|
Power supply |
AC220V+15%,50Hz |
Min.reading value |
0.01kg,0.01Nm³ |
|
Rated pressure |
20MPa |
Single volume range |
0~9999.99 |
|
MAWP |
25MPa |
Total volume range |
0~99999999.99 |
|
Compressive strength |
37.5MPa |
Density preset range |
0.0001~0.9999 |
|
Ambient Temperature |
-40℃~+55℃ |
Packing dimension |
1000x750x2300mm |
|
Intrinsic safe/Expl.Proof: |
Exibdme II AT4 |
Weight |
Around 225kg |
-
Q1: Are you a trading company or manufacturer?
A: Both. Our factory is located in Xingyang,Zhengzhou City,Henan Province.
Q2: Could your company accept my customization?
A: Of course. We can design fuel dispenser according to your demand.But we must assure its usability.
Q3: Do you have foreign local office?
A: Yes. We have local office in some countries, Nigeria, Ghana, Tanzania, Myanmar, Philippines. Contact us and get in touch !!!
Q4: How can i get your quick feedback?
A: IF we are offline, Send inquiry or leave us a message with your specification and detailed requirement, like your whatsApp number and email address, the amount of the product, nozzle amount, petrol type, usage, when you need them, who are you getting them for etc. More specification, quicker feedback.
Q5: Do you have related certification?
A: Yes,we do! OIML,ISO9001 etc.
