Quick Details
-
Size:
-
11000X2500X3800
-
Place of Origin:
-
Shandong, China
-
Product name:
-
bulk portland cement prices
-
Function:
-
Transport Bulk Cement Powder
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
13 Ton Fuwa Brand
-
Landing Gear:
-
Standard 28Ton
-
Tire:
-
11.00R20 /12R20 /315/80R22.5
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Brake:
-
Duel Line Brake System
-
Loading capacity:
-
30T~ 60T
-
Color:
-
Customer's Requirement
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60T
-
Brand Name:
-
ZW
-
Size:
-
11000X2500X3800
-
Place of Origin:
-
Shandong, China
-
Product name:
-
bulk portland cement prices
-
Function:
-
Transport Bulk Cement Powder
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
13 Ton Fuwa Brand
-
Landing Gear:
-
Standard 28Ton
-
Tire:
-
11.00R20 /12R20 /315/80R22.5
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Brake:
-
Duel Line Brake System
-
Loading capacity:
-
30T~ 60T
-
Color:
-
Customer's Requirement
Product Description

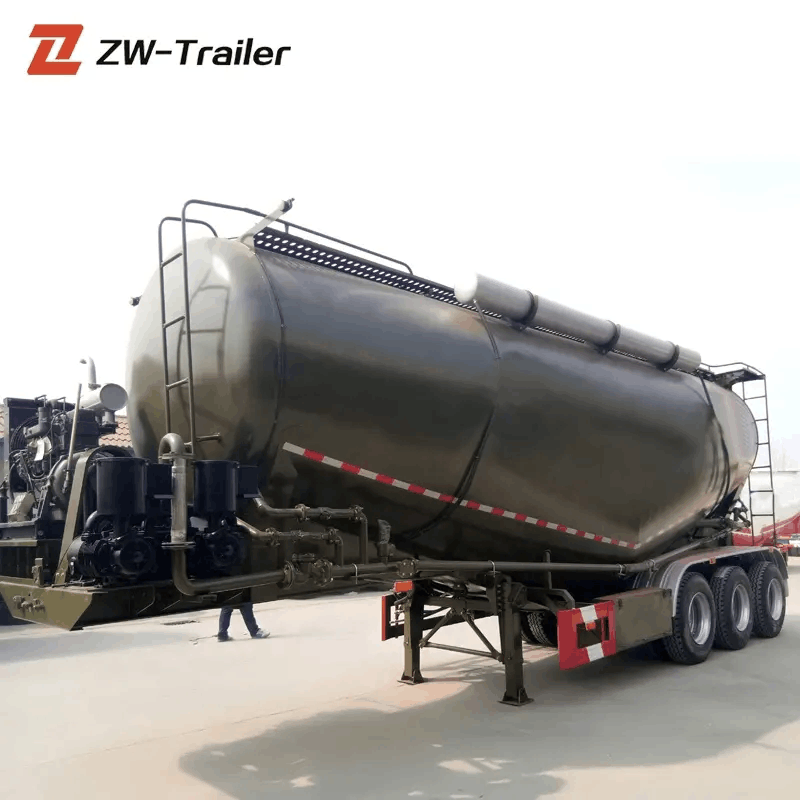

3 axle 40ton 50ton v type bulk cement tank fly ash cement bulker silo tanker semi truck trailer
Cement bulker/bulk cement tank semi trailer / cement bulk trailer / bulk cement semi-trailer / cement tanker trailer / cement transpot vehicle 1. 30m³-80m³ capacity available 2. Unloading speed: 1.2ton / min 3. Residual ratio :<15kg 4. Customized for any type
Details Images
cement bulker improves the loading and unloading efficiency, and reduce material loss. bulk cement trailer also know as bulk feed trailer, v shape cement tanker. cement bulk trailer is widely used in cement factories, cement warehouses，concrete batching plant and large construction sites for cement, fly coal ash and kinds of diameter ≤ 1mm Powder Material Storage and Transporting.
Specification
|
Loading Capacity
|
40CBM
|
|
Axle Weight Load
|
13T
|
|
Axle number
|
3
|
|
Axle Brand
|
FUWA
|
|
Suspension
|
Common mechanical
|
|
King Pin
|
2" or 3.5" traction pin
|
|
Dimensions (LxWxH)
|
11500*2500*3800mm
|
|
Support legs
|
28T
|
|
Wheel Rim
|
9.0-22.5
|
|
Wheelbase
|
7180+1310+1310mm
|
|
Steel Spring
|
10 pieces per axle
|
|
Tank body & end
|
Q235/5mm steel&6mm steel sheet Shape:V type
|
|
Engine
|
Diesel engine:weichai brand model:4102
|
|
Compressor
|
Bohai brand 12m3
|
|
Discharge valve & pipe
|
4” disc valve&4” seamless steel tube
|
|
Air-charging system
|
2” main hole. 2” check valve.1.5” safe valve.0.4Mpa.gauge
|
|
Quadratic blow
|
1” diameter check valve
|
|
Discharge cover
|
2-4 sets of 100mm discharge valves
|
|
Landing Gear
|
Manual operating, Heavy duty landing gear (Brand Optional)
|
|
Manhole cover
|
500mm manhole cover 2 sets with 2 breather valve
|
|
Accessories
|
1 Set standard tool box
|
|
Light
|
Tail lamp with turn signal, brake light & reflector, side lamp etc
|
|
Painting
|
1coat of anti corrosive primer, twice coats of final paint
|
|
Tire spe.
|
12R22.5 (China famous brand)
|
|
Number of Tire
|
12 pieces
|
|
Spare Tire Carriers
|
2 pieces
|
|
Main beam
|
The height of the beam is 500mm;Down plate is 16mm;Middle plate is 8mm.
|
|
Brake Chamber
|
Six big chamber
|
|
Brake system
|
Dual Line Brake system
|
Packing & Delivery
3 axles 50ton V type Fly Ash Carrier bulk portland cement trailer prices is of nude packing.
