Quick Details
-
Color:
-
full color
-
Panel Size:
-
320mmx160mm, 320mmx160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P2.5-ISF24S-SMD1515-96x48
-
Specification:
-
Soft flexible curved LED screen
-
Tube Chip Color:
-
full color
-
Usage:
-
indoor LED display
-
Display Function:
-
Videos, pictures, words
-
Pixels:
-
p1.56 p1.667 p1.875 p2 p2.5 p3 p4
-
Pixel Configuration:
-
SMD1010,,SMD1515,SMD2121
-
Brightness:
-
>1000cd/sqm
-
Input Voltage:
-
AC110V - AC240V
-
Package:
-
Carton
-
Product name:
-
Led display screen paneles
-
Feature:
-
Flexible
Quick Details
-
Application:
-
Advertising
-
Type:
-
LED
-
Brand Name:
-
Eagerled
-
Color:
-
full color
-
Panel Size:
-
320mmx160mm, 320mmx160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P2.5-ISF24S-SMD1515-96x48
-
Specification:
-
Soft flexible curved LED screen
-
Tube Chip Color:
-
full color
-
Usage:
-
indoor LED display
-
Display Function:
-
Videos, pictures, words
-
Pixels:
-
p1.56 p1.667 p1.875 p2 p2.5 p3 p4
-
Pixel Configuration:
-
SMD1010,,SMD1515,SMD2121
-
Brightness:
-
>1000cd/sqm
-
Input Voltage:
-
AC110V - AC240V
-
Package:
-
Carton
-
Product name:
-
Led display screen paneles
-
Feature:
-
Flexible
Product Description
Flexible-Soft Curve Design Screen/Module
* Pixel Pitch:
P1.875/
P2/ P2.5/P3
/P4/P5
*
Modules size :
320
*
160mm/240
*
160mm:
* Panel Weight: 0.3KG/panel
* Brightness: 800-1000 nits
* Weather Rating: For indoor only
* Panel Weight: 0.3KG/panel
* Brightness: 800-1000 nits
* Weather Rating: For indoor only
Flat - High-Resolution Display/Module
*Pixel Pitch:
P1.25/P1.37/P1.83/P1.86/
P2/P2.5/P3
/P4/P5
*Modules size : 320*160mm/250*250 mm / 192*192 mm
*Modules size : 320*160mm/250*250 mm / 192*192 mm
* Panel Weight:
0.3KG/panel
* Brightness: 500-10000 nits
* Weather Rating: indoor&outdoor
* Brightness: 500-10000 nits
* Weather Rating: indoor&outdoor

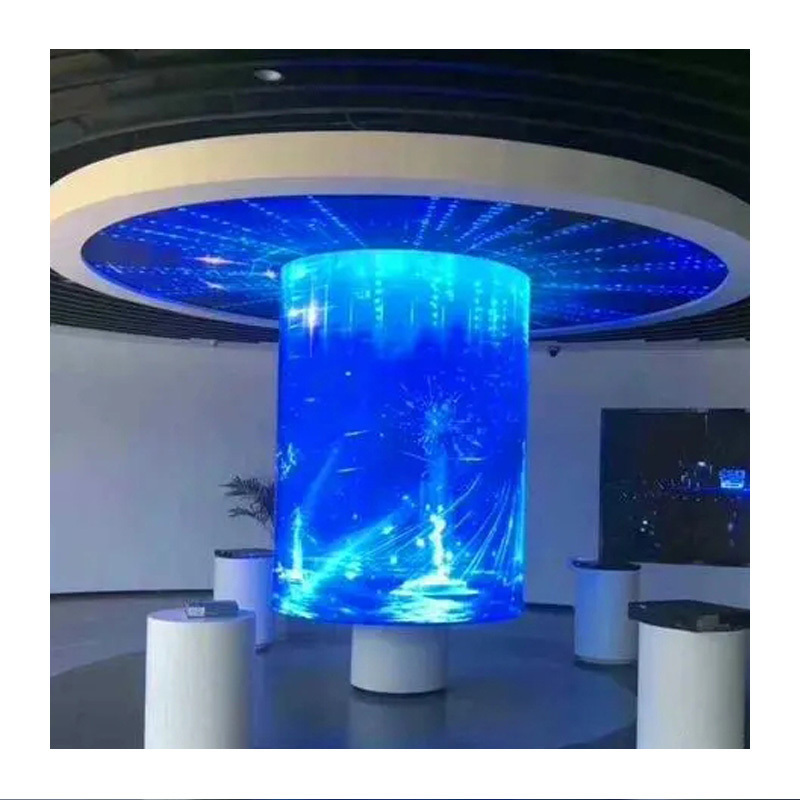

Virtual film Curved big LED wall
We can make curved LED steel cabinet to make curved LED display ,Good sulotion for circle or curved LED wall.
Second：Flexible LED modules
We also provide the flexible LED modules to our customers.
1、Modules size
320x160mm : P1.86/P2/P2.5/P3.07/P4
240x160mm: P1.58/P1.66/P1.87/P2/P2.5/P3/P4
2、
Product Features
●
Large Radian and High Flexibility
●
Ultra-thin And Ultra-light
●
Simple And Quick Installation
●
Magnetic Front Service Design
●
Higher Contrast Ratio And Definition
●
Customized Shape, Wide Application
For specific product parameters, please refer to the form at the bottom of this page
Product Application&Case
Large Radian and High Flexibility
The flexible module LED display uses a flexible material circuit board, and the mask is made of silica gel.The module is flexible. and various screen shapes can be customized at will,such as cylIndrical. arched, wavy, convex, concave etc. to create an amazing and unbellevable vlewing effect.
Product Parameters
|
240x120mm Series Flexible Soft LED LED Display Module
|
|
|
|
|
|
|
|||||
|
Pixel Pitch
|
LED Type
|
Module Size（MM）
|
Module Resolution
|
Driving Mode
|
Refresh Rate(Hz)
|
Brightness(Nits)
|
|||||
|
P1.579mm
|
SMD1010
|
240*120
|
152*76
|
1/38Scan
|
3840
|
≥800
|
|||||
|
P1.667mm
|
SMD1010
|
240*120
|
144*72
|
1/36Scan
|
3840
|
≥800
|
|||||
|
P1.875mm
|
SMD1515
|
240*120
|
128*64
|
1/32Scan
|
3840
|
≥1000
|
|||||
|
P2.5mm
|
SMD1515
|
240*120
|
96*48
|
1/24Scan
|
1920 / 3840
|
≥800
|
|||||
|
P2.mm
|
SMD1515
|
240*120
|
120*60
|
1/30Scan
|
3840
|
≥1000
|
|||||
|
P3mm
|
SMD2121
|
240*120
|
80*40
|
1/20Scan
|
1920 / 3840
|
≥1000
|
|||||
|
P4mm
|
SMD2121
|
240*120
|
60*30
|
1/15Scan
|
1920 / 3840
|
≥700
|
|||||
|
320x160mm Series Flexible Soft LED Screen Module
|
|
|
|
|
|
|
||||||
|
Pixel Pitch
|
LED Type
|
Module Size（MM）
|
Module Resolution
|
Driving Mode
|
Refresh Rate(Hz)
|
Brightness(Nits)
|
||||||
|
P1.86mm
|
SMD1515
|
320*160
|
172*86
|
1/43Scan
|
3840
|
≥800
|
||||||
|
P2.mm
|
SMD1515
|
320*160
|
160*80
|
1/40Scan
|
3840
|
≥800
|
||||||
|
P2.5mm
|
SMD1515
|
320*160
|
128*64
|
1/32Scan
|
1920 / 3840
|
≥800
|
||||||
|
P3.076mm
|
SMD2121
|
320*160
|
104*52
|
1/26Scan
|
1920 / 3840
|
≥800
|
||||||
|
P5mm
|
SMD2121
|
320*160
|
64*32
|
1/16Scan
|
1920 / 3840
|
≥800
|
||||||
|
Other Series Flexible Soft LED Display Panel
|
|
|
|
|
|
|
||||||
|
Pixel Pitch
|
LED Type
|
Module Size（MM）
|
Module Resolution
|
Driving Mode
|
Refresh Rate(Hz)
|
Brightness(Nits)
|
||||||
|
P1.56mm
|
SMD1010
|
250*125
|
160*80
|
1/40Scan
|
3840
|
≥800
|
||||||
|
P2mm
|
SMD1515
|
256*128
|
128*64
|
1/32Scan
|
3840
|
≥1000
|
||||||
|
P4mm
|
SMD2121
|
256*128
|
64*32
|
1/16Scan
|
1920 / 3840
|
≥1000
|
||||||
