Quick Details
-
Product name:
-

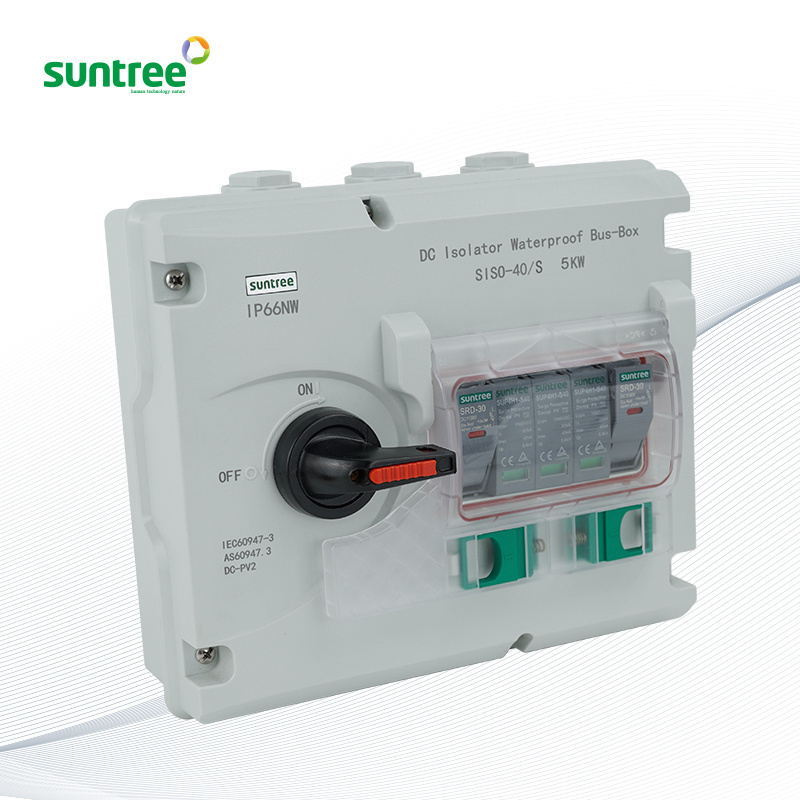

DC isolating switch waterproof bus-box
-
Application:
-
solar system,electric equipment
-
Color:
-
White
-
Certificate:
-
TUV CE
-
Rated Voltage:
-
Under Ue=DC1200V
-
Rated current:
-
In=16A,In=25A,In=32A,In=40A
-
Protection Level:
-
IP66
-
Mechanical life:
-
10000 times
-
Waterproof box resistance strength grade:
-
lK10
-
Web:
-
www.chinasuntree.com
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree Brand
-
Model Number:
-
SHLX-PV
-
Product name:
-
DC isolating switch waterproof bus-box
-
Application:
-
solar system,electric equipment
-
Color:
-
White
-
Certificate:
-
TUV CE
-
Rated Voltage:
-
Under Ue=DC1200V
-
Rated current:
-
In=16A,In=25A,In=32A,In=40A
-
Protection Level:
-
IP66
-
Mechanical life:
-
10000 times
-
Waterproof box resistance strength grade:
-
lK10
-
Web:
-
www.chinasuntree.com
-
Certification:
-
CE
SCOPE OF APPLICATION
When closed, the handle is just placed on the upper end of the transparent cover, which limits the flip of the transparent cover, and the padlock hole is designed on the handle to add a padlock, so as to ensure the personal safety of users ( Only break off the load first, and then split the switch "effectively cut off" the DC isolator,to open the transparent open cover and the components and switches in the transparent cover).Clear marks are provided at the opening and closing locations for easy operation;
▲
Rated current:In=16A、In=25A、In=32A、In=40A
▲
Overvoltage Category:III
▲IP Rating:IP66
▲
Rated short time tolerance current:icw=1.0kA(1s)
▲Waterproof box resistance strength grade:lK10 ▲Rated short circuit capacity;lcm=1.7kA
▲Rated voltage:Under Ue=DC1200V ▲Rated short circuit current:Icn=3kA
▲Rated insulation voltage:Ui=DC1500V ▲Mechanical life:10000 times
▲Rated working current:le=6A.....le=55A
▲
Utilization Category:DC-PV1、DC-PV2(DC-21B)
▲
Rated shock withstand voltage:Uimp=8kV
Products Description
|
DC Isolating Switch Waterproof Bus-box Model
|
SISO-40/F
|
SISO-40/M
|
SISO-40/S
|
SISO-40/FM
|
Customised
|
||||
|
Waterproof Box Material
|
PC/Polvcarhonate
|
|
|
|
|
||||
|
Waterproof Protection Grade
|
IP66
|
|
|
|
|
||||
|
Waterproof Box Resistance Strength Grade
|
IK10
|
|
|
|
|
||||
|
Pole/String
|
5
|
|
|
|
|
||||
|
Size of Photovoltaic Cable connection
|
4mm2=6mm2
|
|
|
|
|
||||
|
Match Power Generation System Capacity
|
2
|
|
|
|
|
||||
|
installation
|
Vertcal installation
|
|
|
|
|
||||
|
|
DC isolating Switch/DC Disconnector
|
|
|
|
|
||||
|
Voltage
|
Ue=DC1200VUe=Dc1000V and bellow
|
|
|
|
|
||||
|
Current
|
le=6A.....le=55A
|
|
|
|
|
||||
|
Pole
|
4P
|
|
|
|
|
||||
|
String
|
2
|
1
|
1
|
1
|
1-2
|
||||
|
|
DC Surge Arrestor
|
|
|
|
|
||||
|
Voltage
|
Ue=DC1500V Ue=DC1200V Ue=DC1000V and bellow
|
|
|
|
|
||||
|
Maximum instantaneous discharge current
|
In=20KA/40KA
|
|
|
|
|
||||
|
Pole
|
2P 3P
|
|
|
|
|
||||
|
|
DC Circuit Breaker
|
|
|
|
|
||||
|
Voltage
|
Ue=DC1200V Ue=DC1000V and bellow
|
|
|
|
|
||||
|
Current
|
In=6A In=10A In=16A In=20A In=25A in=32A In=40A In=50AIn=63A
|
|
|
|
|
||||
|
Pole
|
1P 2P 3P 4P
|
|
|
|
|
||||
|
Auxiliary Us
|
Us:DC12V DC24V DC48V AC230V/415V 1A-2A MX+OF
|
|
|
|
|
||||
|
|
Dc Fuse
|
|
|
|
|
||||
|
Voltage
|
Ue=DC1100V
|
|
|
|
|
||||
|
Current
|
Voltage In=1A in=3A In=5A In=6A In=10A in=16A In=20A In=25A In=30A
|
|
|
|
|
||||
|
Specification
|
10*38mm
|
|
|
|
|
||||
