Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FANGDING
-
Voltage:
-
380V
-
Power:
-
40KW
-
Weight:
-
20000 kg
-
Model:
-
DN3000*6000
-
Max.Glass Size:
-
2600*6000mm
-
Control system:
-
PLC
-
Inner diameter:
-
3000mm
-
Glass length:
-
6000mm
-
Orbital distance:
-
1000mm
-
Heating power:
-
200kw
-
Circulating distance:
-
22~45kw
-
Operating press:
-
1.3Mpa
-
Cooling water volume:
-
40m3
Quick Details
-
Machine Type:
-
Glass Laminating Machine
-
Glass Thickness:
-
Other
-
Production Capacity:
-
90%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FANGDING
-
Voltage:
-
380V
-
Power:
-
40KW
-
Weight:
-
20000 kg
-
Model:
-
DN3000*6000
-
Max.Glass Size:
-
2600*6000mm
-
Control system:
-
PLC
-
Inner diameter:
-
3000mm
-
Glass length:
-
6000mm
-
Orbital distance:
-
1000mm
-
Heating power:
-
200kw
-
Circulating distance:
-
22~45kw
-
Operating press:
-
1.3Mpa
-
Cooling water volume:
-
40m3

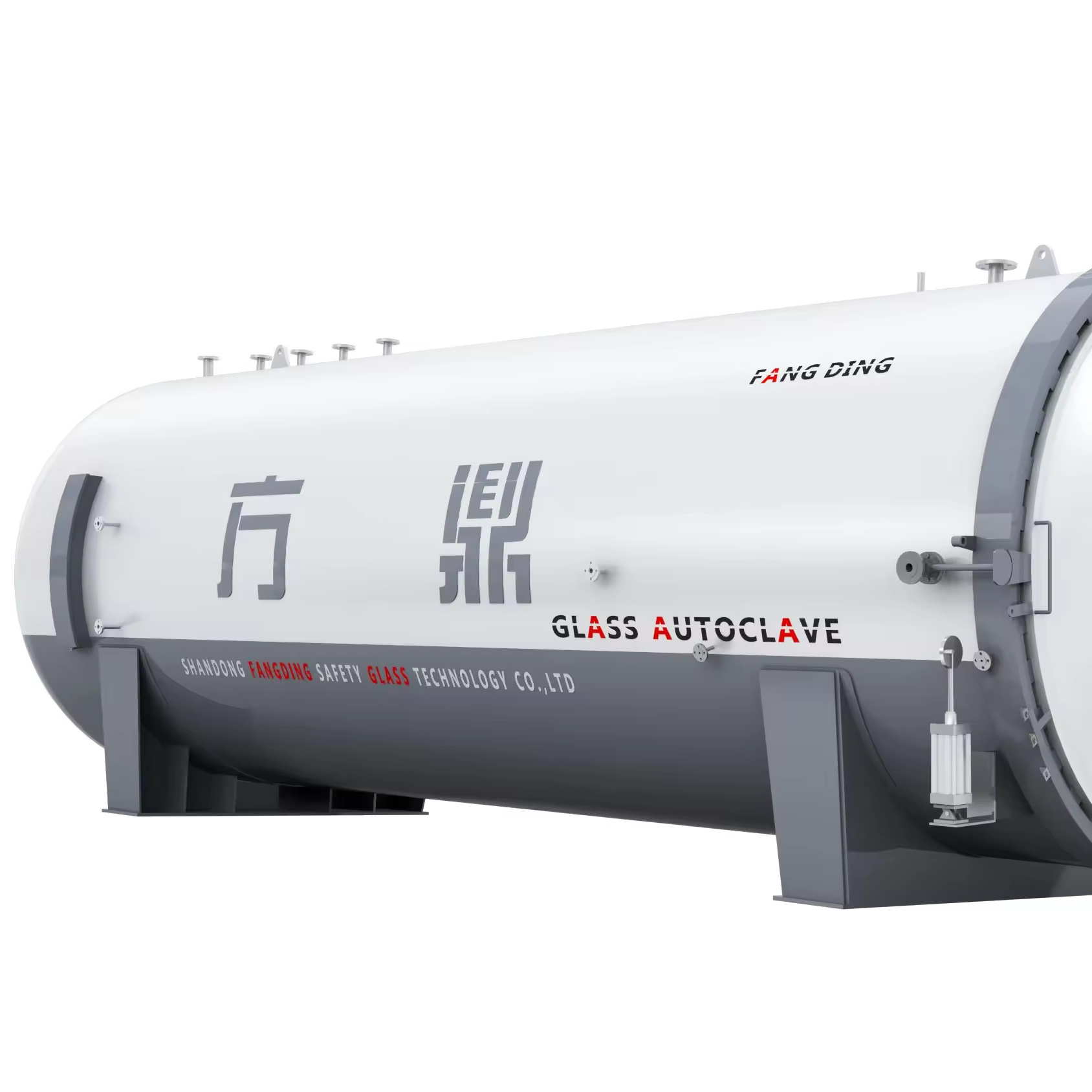

The laminated glass autoclave adopts the pressure vessel with double convection heating of up and down circulation and front and back circulation.The laminated glass autoclave can realize the accurate control of temperature and pressure.And the temperature and pressure can change completely accoding to the design curve.
|
Laminated Glass Autoclave
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Inner diameter(mm)
|
Glass length(mm)
|
Max.glass size(mm)
|
Circulating fan power(kw)
|
Orbital distance(mm)
|
Operation press(Mpa)
|
Operating temp(℃)
|
|||||||
|
DN2100*6000
|
2100
|
6000
|
1700*6000
|
15~30
|
700
|
1.3
|
120~135
|
|||||||
|
DN2600*6000
|
2600
|
6000
|
2200*6000
|
18.5~37
|
800
|
1.3
|
120~135
|
|||||||
|
DN2860*6000
|
2860
|
6000
|
2440*6000
|
18.5~37
|
850
|
1.3
|
120~135
|
|||||||
|
DN3000*6000
|
3000
|
6000
|
2600*6000
|
22~45
|
1000
|
1.3
|
120~135
|
|||||||
|
DN3200*8000
|
3200
|
8000
|
2800*8000
|
22~45
|
1000
|
1.3
|
120~135
|
|||||||
|
DN3600*8000
|
3600
|
8000
|
3200*8000
|
37~75
|
1100
|
1.3
|
120~135
|
|||||||
|
DN3800*8000
|
3800
|
8000
|
3400*8000
|
37~75
|
1100
|
1.3
|
120~135
|
|||||||
|
The equipment can be customized according to customer requirements.
|
|
|
|
|
|
|
|
|||||||
Q: Could your machines laminate bent tempered glass?
Re: Yes. Our machines can laminate large-size bent tempered glass in one step, which is very easy to operate.
Re: Yes. Our machines can laminate large-size bent tempered glass in one step, which is very easy to operate.
Q: How many stages your machines can set?
Re: Normally we set 3 stages. It can be customized for you to 5 stages if needed.
Re: Normally we set 3 stages. It can be customized for you to 5 stages if needed.
Q: When will your machine ready for delivery after our prepayment?
Re: Normally within in 30 days after receiving prepayment.
Re: Normally within in 30 days after receiving prepayment.
Q: What about the terms of payment?
Re: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.
Re: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.
Q: Does your machine have any certifications?
Re: Yes, we do. Our machine have got CE certificate of European union, ISO9001 management system certificate.
Re: Yes, we do. Our machine have got CE certificate of European union, ISO9001 management system certificate.
Q: Could the laminated glass used for exterior?
Re: Yes. The laminated glass with super clear EVA can be totally used for exterior.
Re: Yes. The laminated glass with super clear EVA can be totally used for exterior.
Q: How to operate the machine? Is it difficult?
Re: No, our machine is very easy to operate. The machine will work automatically after you setting the parameters through the PLC touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
Re: No, our machine is very easy to operate. The machine will work automatically after you setting the parameters through the PLC touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
