Quick Details
Quick Details
-
Displacement:
-
70CC, 90CC, 125CC
-
Max. Speed:
-
40 - 60km/h
-
Place of Origin:
-
Zhejiang, China

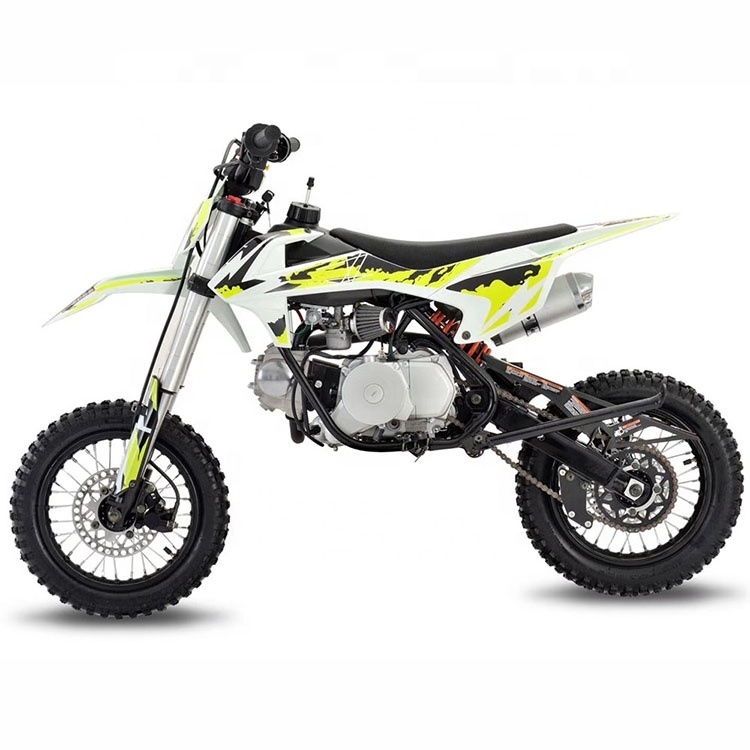

2019 New Type Cross 125cc Sports Dirt Mini Pit Bike
Product details
|
KXP-27 PIT BIKE 125CC WITH EPA APPROVED |
|
|
ENGINE TYPE |
Zongshen 125cc (14"/12") |
|
ENGINE SPECIFICATION |
|
|
DISPLACEMENT |
123.67 ml |
|
DESIGN TYPE |
1-Cylinder, 4-stroke, camshaft upward, with balance shaft |
|
BORE & STROKE |
54 x 54 |
|
Clutch Method |
Manual Clutch |
|
STARTER |
Kick Start |
|
TRANSMISSION |
4-Speed Gear Shift |
|
MUFFLER |
Aluminum Muffler |
|
SUSPENSION |
|
|
FRONT FORK |
Upside down front shock |
|
TRIPLE CLAMP & RISERS |
KTM Style Triple Clamp & Risers |
|
REAR SHOCK |
Coil Shock Absorber |
|
WHEELS |
|
|
RIM |
High Strength Steel Rim |
|
TIRE |
Off Road Knobby Tire |
|
CHAIN |
KMC 420 |
|
MAJOR BODY PARTS |
|
|
FRAME & SUB FRAME |
Tube Cradle Frame, High Strength Steel |
|
REAR SWING ARM |
High Strength Steel made in house |
|
AXLE, BOLT & NUTS |
10.9 grade axles, army green coating for most of bolt & nuts for important parts |
|
BRAKE |
Front and Rear Disc Brake |
|
DIMENSION AND WEIGHT |
|
|
WHEEL BASE |
1050 mm |
|
OVERALL LENGTH |
1515 mm |
|
OVERALL WIDTH |
670 mm |
|
OVERALL HEIGHT |
960 mm |
|
SEAR HEIGHT |
710 mm |
|
MIN. GROUNAD CLEARANCE |
300 mm |
|
DRY WEIGHT |
58.5 kgs |
|
MAX. LOAD |
85 kgs |
|
FUEL TANK CAPACITY |
2.6 L |
|
LOADING QUANTITY (40HQ) |
192 pcs |
|
LOADING QUANTITY (20FT) |
102 pcs |
|
PACKING SIZE |
1400x380x640 mm |
