Over & Under Voltage Relay is a new generation of household electrical equipment protector, made by our company according to current city power condition. The control circuit is made up of imported elements. The product is made according to the modularization standard. It is of excellent and reliable performances and can work normally under abnormal voltage. This series of product is of compact structure and beautiful appearance.
This product is in great demand in the market. The demander can contact with us through telegram or correspondence.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
EBASEE
-
Model Number:
-
BX3PY6
-
Product name:
-
Mini Circuit Breaker
-
Standard:
-
IEC standard
-
Rated current:
-
1-63A
-
Rated voltage:
-
230/400V
-
Poles:
-
4P
-
Breaking capacity:
-
6kA
-
Curve:
-
B
-
Electrical life:
-
6000times/Operations
-
Mechnical Life:
-
20000times/Operations
-
Installation:
-
intalled on 35mm DIN rail
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EBASEE
-
Model Number:
-
BX3PY6
-
Product name:
-
Mini Circuit Breaker
-
Standard:
-
IEC standard
-
Rated current:
-
1-63A
-
Rated voltage:
-
230/400V
-
Poles:
-
4P
-
Breaking capacity:
-
6kA
-
Curve:
-
B
-
Electrical life:
-
6000times/Operations
-
Mechnical Life:
-
20000times/Operations
-
Installation:
-
intalled on 35mm DIN rail
Products Description

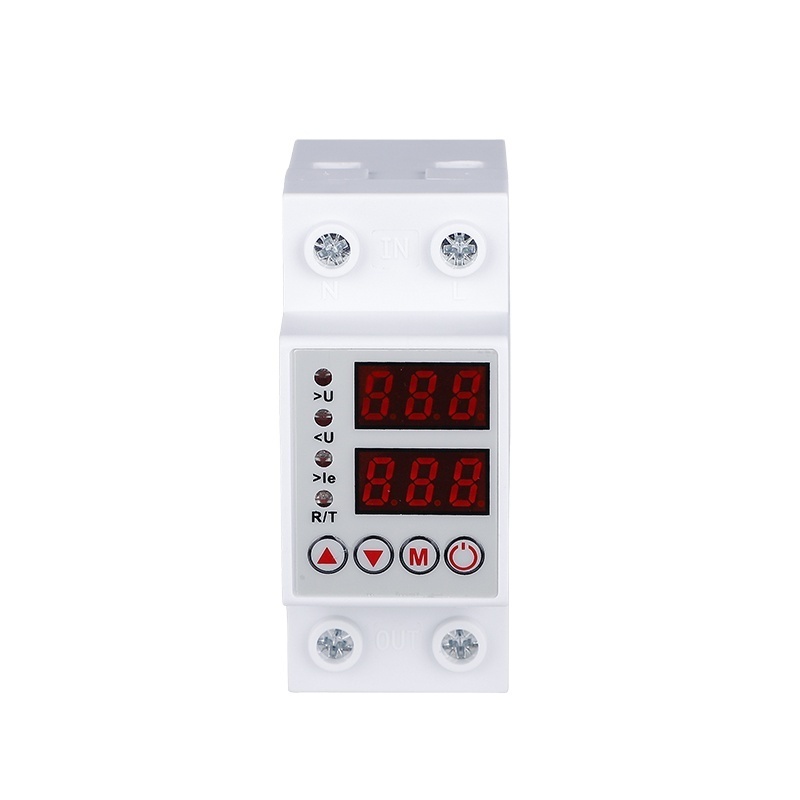

Voltage protector
Technical Parameters
|
Model
|
BX3PY
|
|
Standard
|
IEC60947-2 Rated voltage(V)
|
|
Rated current(A)
|
1-63(A),adjustable (default 63A)
|
|
Under-voltage action cutoff value
|
210V-140V adjustable (default 140V)
|
|
Over-voltage action cutoff value
|
50/60 Hz
|
|
Over voltage action cut of
|
230V-300V adjustable (default 280V)
|
|
Power-off delay after power failure
|
5S
|
|
Delay range
|
1S-600S adjustable (default 30 seconds)
|
|
Electrical and mechanical life
|
≥ 50,000 times
|
