Quick Details
-
Brand Name:
-
GBPI
-
Model Number:
-
W303 2.0
-
Product name:
-
Water Vapor Transmission Rate Tester (WVTR/ MVTR)
-
Test range:
-
0.1~10000 g/(m2*24h)
-
Resolution:
-
0.0001 g/(m2*24h)
-
Number of test sample:
-
3 pieces
-
Sample size:
-
90 mm in diameter
-
Temperature control range:
-
15~55℃
-
Temperature control accuracy:
-
±0.1℃
-
Humidity control range:
-
≤10%RH Desiccant Method
-
Humidity control accuracy:
-
±2%RH
-
Standard:
-
ASTM E96, ASTM D1653, ISO 2528, DIN 53122-1, JIS Z0208, YBB 00092003
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBPI
-
Model Number:
-
W303 2.0
-
Product name:
-
Water Vapor Transmission Rate Tester (WVTR/ MVTR)
-
Test range:
-
0.1~10000 g/(m2*24h)
-
Resolution:
-
0.0001 g/(m2*24h)
-
Number of test sample:
-
3 pieces
-
Sample size:
-
90 mm in diameter
-
Temperature control range:
-
15~55℃
-
Temperature control accuracy:
-
±0.1℃
-
Humidity control range:
-
≤10%RH Desiccant Method
-
Humidity control accuracy:
-
±2%RH
-
Standard:
-
ASTM E96, ASTM D1653, ISO 2528, DIN 53122-1, JIS Z0208, YBB 00092003

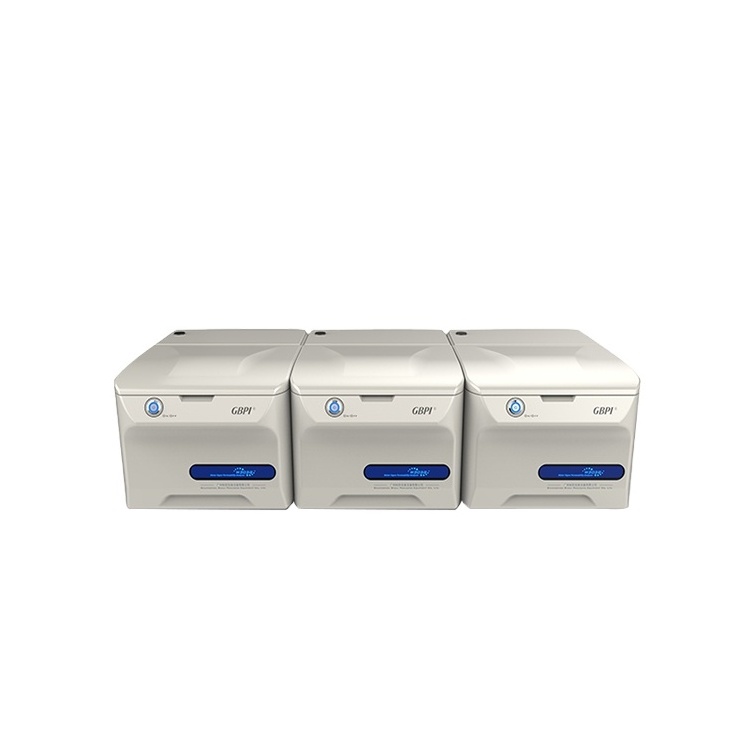

W303 2.0 MVTR Testing Equipment
Functions
To test the water vapor transmission rate (WVTR) of packaging materials, such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, and box. It is widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on and institutions of quality control, drug inspection and science research.
MVTR Testing Equipment
Standards
GB/T 1037 ,GB/T 16928, YBB00092003,ASTM E96,ASTM D1653,ISO 2528,TAPPI T464,DIN 53122-1,JIS Z0208
Application :
* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
Working principle
W303 Water Vapor Permeation Tester was designed with the principle of weighting method to use weight reduction method to test the water transmittance rate (WVTR) of plastic films. Namely in the regulated temperature, relative humidity conditions, the sample two sides keep the vapor different pressure, measuring the vapor volume passed through, figure out the WVTR value. Unit is g/ m 2 ·24h.
Techinical Parameter
| Test range | 0.1~10000 g / (m 2 ·24h) |
|
Test accuracy |
0.0001 g / (m 2 ·24h) |
| Temperature range | 10~50 ℃ |
|
Temperature accuracy |
±0.1 ℃ |
|
Humidity range |
O utside the cup ≤ 10 %RH , inside the cup ≥ 90 % |
|
Humidity accuracy |
±2%RH |
|
T est area |
50.24 cm 2 |
| Sample size |
Φ 90 mm |
| Sample thickness |
≤ 3 mm |
|
Sample amount |
3 pieces |
|
Instrument size |
1150mm×545mm×315mm |
| Weight | 103 kg |
|
Powe |
1300 W |
|
Power supply |
AC 220 V, 50 Hz |
Features:
Precise & Reliable
- High precision sensor, continuous data collecting, accurate and dependable.
- Test accuracy reaches 0.001 g / (m 2 ·24h), which stays in leading position of the industry.
- Adopt the only Standard Films in the industry which are authorized by AQSIQ and developed by GBPI to verify the instrument, and the data are 100% reliable.
- The discreteness of data for the same sample is less than 5%.
Multi-testing Chambers to test samples flexibly and Efficiently
- Three chambers with unique sensor in every chamber. Can stop any one of the chambers to change sample, which can effectively enhance the test efficiency.
- Three chambers can test three different samples.
- Can extend to the maximum of six chambers. Every chamber works independently.
- Fully automatic operation, One-click test, automatic judgment and automatic stop.
- Supported by professional software. Software interface is simple and easy to operate.
- Built-in operating system, can work independently without computer.
- Curves of temperature, humidity, weight and transmission rate, real time display and zoom in/out.
- Professional test report, can be exported in Office or PDF formats easily.
- Temperature control adopts international advanced electromagnetic technology. Program stepping controlling makes the temperature rises and drops automatically.
- Carry cutting-edge ARM controlling system, running independently without computer.
- Automatic over range protection.
- Humidity control utilizes proportioning dry and wet gas, performing excellently.
- Parameters are locked with password automatically.
- Add external fittings for packaging container test, being able to test bag, pouch, bottle, can, bowl,aluminum foil, aluminum-plated film, and many other packaging containers.
- The only tester in the industry that can test High barrier materials like aluminum foil and aluminum-plated film.
- Adopt two calibrating methods: Weight calibration and standard film calibration. Configured with appropriative mouthpiece of temperature and humidity.
After sale Service:
l 1 year warranty
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
About GBPI
GBPI is a professional manufacturer focused on developing
and pro ducing packaging m aterial test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
