Quick Details
-
Brand Name:
-
iBeehive
-
Model Number:
-
iBeehive-warehouse
-
Product name:
-

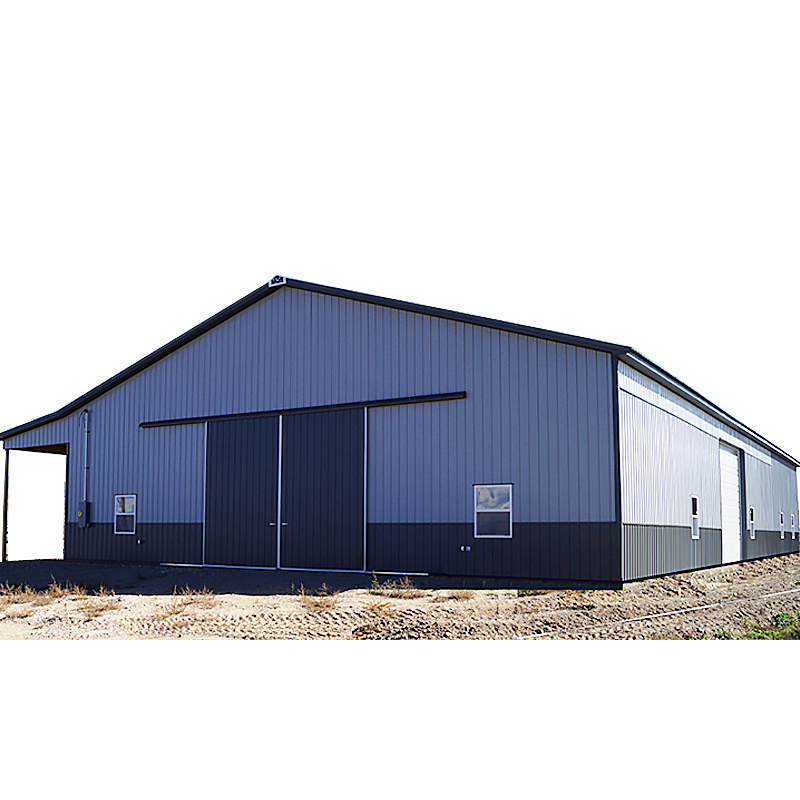

Steel structure warehouse
-
Material:
-
A36)ASTM (Q235B/Q345B)GB S355JR(EN)
-
Main frame:
-
Welded H Steel Beam, Steel Truss
-
Secondary frame:
-
C&Z Purlin, Brace
-
Wall Cladding:
-
Steel color sheet, sandwich panel
-
Roof Cladding:
-
Steel color sheet, sandwich panel glass wool and mesh
-
Window:
-
Sliding Window, PVC window or aluminium window
-
Door:
-
sliding door or rolling door
-
Surface treatment:
-
Hot Dip Galvanized and Painted
-
Performance:
-
Safety, water-proof, sound insulated hear-preservation etc.
Quick Details
-
Grade:
-
Q235 Q345 & Q355B steel
-
Tolerance:
-
±1%
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
iBeehive
-
Model Number:
-
iBeehive-warehouse
-
Product name:
-
Steel structure warehouse
-
Material:
-
A36)ASTM (Q235B/Q345B)GB S355JR(EN)
-
Main frame:
-
Welded H Steel Beam, Steel Truss
-
Secondary frame:
-
C&Z Purlin, Brace
-
Wall Cladding:
-
Steel color sheet, sandwich panel
-
Roof Cladding:
-
Steel color sheet, sandwich panel glass wool and mesh
-
Window:
-
Sliding Window, PVC window or aluminium window
-
Door:
-
sliding door or rolling door
-
Surface treatment:
-
Hot Dip Galvanized and Painted
-
Performance:
-
Safety, water-proof, sound insulated hear-preservation etc.
iBeehive has been specializing in steel structure warehouse, workshop building design, and fabrication for 22 years. You can get the following services.
1. Customized Design
We have a professional design team of about 20 people, with 10 years of design experience. We can meet your individual needs. And the customizable color of steel components, roof, and wall panels.
|
|
|
|
2. Shortest Delivery Time
We have 2 modern factories and 4 production lines with a total area of 150000 square meters to produce. We guarantee a warehouse of 5000 square meters and delivery within 30 days.
|
3. Production Visualization
We can provide you with pictures, and video information of all production links, from raw materials to steel processing, the whole process of visual production. You can even video call us to watch the workshop production.
4. Strict Quality Inspection
With good quality steel material, we have an AWS-D1.1/D1.5 welding quality system and a professional CWI welding inspector to ensure the high quality of the product.
5. Packing and Delivery
Container and pallet packing will protect the surface paint or zinc of the steel structures.
Delivery will be made 23 days after receipt of full payment.
6. Installation Guide
The installation instruction and video will be provided, we can also send our engineers to your site as installation guides, they will teach your people how to build the project.
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar, or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminum Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Finishing Options | Vast array of colors and textures are available | |
| Paint Options |
Alkyd painting, two primary painting, two finished painting
(gray paint, red paint, white paint, epoxy zinc, etc.) Or Galvanized. |
|
