3 Way Neodymium Concert Line Array Speaker with Amplifier Module

3 Way Neodymium Concert Line Array Speaker with Amplifier Module

FOB Reference Price: Get Latest Price

≥4 Pieces

US $530

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: XPA212/PA212

Dimension:: 876*689*356mm

Output Power:: 700W+300W+300W

Product Name:: Line Array Speaker

Type Model:: Active Model/Passive Model

Type:: 3 way line array

Color:: Black

Max SPL:: 148dB

Nominal impedance:: 8 Ohm

Packing:: Carton Box

Net Weight:: 48Kg

Application:: Stage, Concert, Performance,etc

Certification:: CCC

Quick Details

Warranty:: 3months-1year

Place of Origin:: Guangdong, China

Brand Name:: TA

Model Number:: XPA212/PA212

Dimension:: 876*689*356mm

Output Power:: 700W+300W+300W

Product Name:: Line Array Speaker

Type Model:: Active Model/Passive Model

Type:: 3 way line array

Color:: Black

Max SPL:: 148dB

Nominal impedance:: 8 Ohm

Packing:: Carton Box

Net Weight:: 48Kg

Application:: Stage, Concert, Performance,etc

Certification:: CCC

Specification

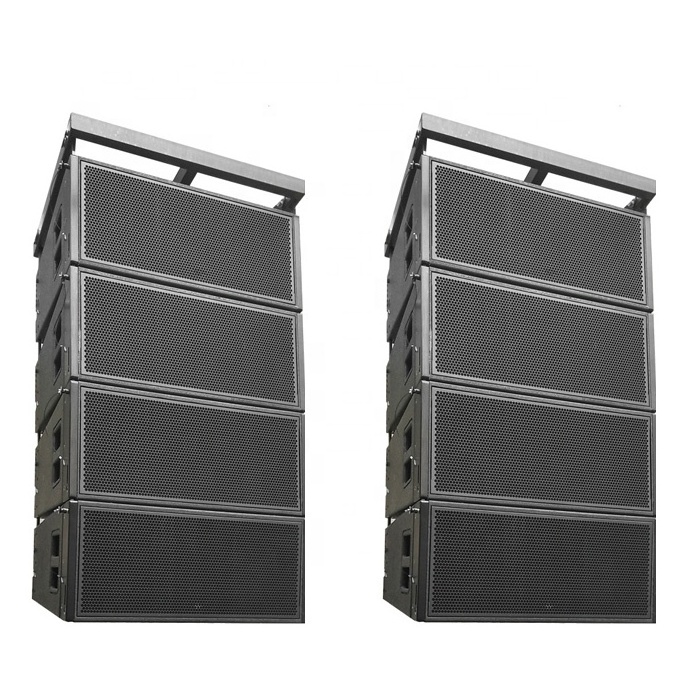

3 Way Dual 12inch Stage Concert Line Array Speaker

XPA212

This item is hot sale 3way dual 12inch active line array speaker. It is satisfy the demand of the high-end market and tailor made audio product, with big power and high output SPL.

It with active model and passive model to choose. And it also can do 2way line array or waterproof function if you need. OEM and ODM are all available.

Recommend to work together with our XPA28 dual 18inch Subwoofer Speaker. Applied to outdoor activities, theater, gymnasium, stage , concert,etc.

Model	XPA212(Active)	PA212(Passive)
Active Amplifier	1200W+450W+450W	/
Nominal Impedance	8Ω		8Ω
Rated Power	700W+300W+300W（LF+MF+HF）		700W+300W+300W（LF+MF+HF）
Peak Power	1400W+600W+600W（LF+MF+HF）		1400W+600W+600W（LF+MF+HF）
Frequency Response	45Hz-18k		45Hz-18K
Sensitivity(1w/1m)	112dB		112dB
Max SPL	148dB		148dB
Nominal Dispersion	H90°x V10°		H90°x V10°
LF Driver	12"x2		12"x2
MF Driver	8''x2		8''x2
HF Driver	1.75"*2		1.75"*2
N.W	48Kg		48Kg
Product Dimension	876689356mm		876689356mm
