Quick Details
-
Mounting Type:
-
thread
-
Description:
-
ultrasonic level sensor, ultrasonic level sensor
-
Manufacturing Date Code:
-
GXUM
-
Model Number:
-
GXUM
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Kacise
-
Theory:
-
ultrasonic sensor, Ultrasonic Sensor
-
Output:
-
digital sensor, Analog SENSOR
-
Usage:
-
Level Sensor
-
Output signal:
-
analog, digital, switch
-
Measuring range:
-
Min. 0.5 m, Max. 60 m
-
Blind zone:
-
Min. 50mm, Max. 200mm
-
Casing:
-
Stainless steel, Plastic(ABS,PTFE)
-
Protection grade:
-
IP67
-
Item name:
-
ultrasonic level sensor
-
Application:
-
Liquid level, Grain level, Distance measuring
Quick Details
-
Use:
-
measuring liquid level
-
Series:
-
GXUM
-
Features:
-
Low power consumption
-
Mounting Type:
-
thread
-
Description:
-
ultrasonic level sensor, ultrasonic level sensor
-
Manufacturing Date Code:
-
GXUM
-
Model Number:
-
GXUM
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Kacise
-
Theory:
-
ultrasonic sensor, Ultrasonic Sensor
-
Output:
-
digital sensor, Analog SENSOR
-
Usage:
-
Level Sensor
-
Output signal:
-
analog, digital, switch
-
Measuring range:
-
Min. 0.5 m, Max. 60 m
-
Blind zone:
-
Min. 50mm, Max. 200mm
-
Casing:
-
Stainless steel, Plastic(ABS,PTFE)
-
Protection grade:
-
IP67
-
Item name:
-
ultrasonic level sensor
-
Application:
-
Liquid level, Grain level, Distance measuring

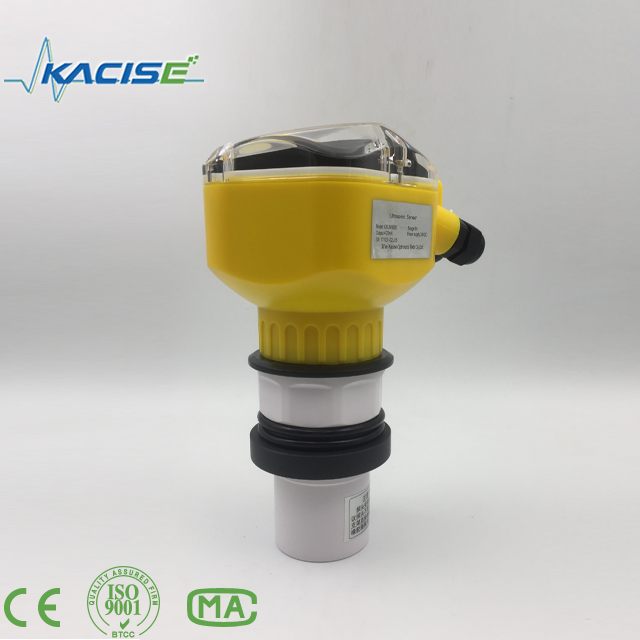

Brief introduction of ultrasonic level sensor
This ultrasonic sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.
Features of long range ultrasonic leve sensor
- High sensitivity
- Designed for outdoor or indoor environments
- 9V-28V supply with very low average current draw
- Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz
- Free run operation can continually measure and output ranger information
- Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
- Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.
|
Function |
Integral type |
Remote type |
|
Measurement range |
5m , 10m , 15m , 20m , 30m , 40m , 50m , 60m |
5m , 10m , 15m , 20m , 30m , 40m , 50m , 60m , 70m |
|
Measurement accuracy |
0.5%~1% |
|
|
resolution |
3mm or 0.1% ( The larger one is effective ) |
|
|
display |
Chinese and English LCD |
|
|
Analog output |
4wires4 ~ 20mA/510Ω load 2wires4 ~ 20mA/250Ω load |
4 ~ 20mA/510Ω load |
|
Relay output |
2 AC 250V/ 8A or DC 30V/ 5A state programmable ( optional ) |
2 for GXUMS series product , 4 for GXUMSD series AC 250V/ 8A or DC 30V/ 5A state programmable ( optional ) |
|
Power supply |
Standard configuration 24VDC(default) 220V AC + 15%@50Hz or 110V AC + 15%@60Hz |
220V AC + 15%@50Hz(default) 24VDC or 12VDC or 110V AC + 15%@60Hz |
|
Environment temperature |
Display instrument-20 ~ +60 ℃ , transducer-20 ~ +80 ℃ |
Display instrument -20 ~ +60 ℃ , transducer-20 ~ +80 ℃ |
|
Communication port |
RS485(default) , RS 232 |
|
|
Protocol |
Modbus-RTU(default) or Modbus-ASCII |
|
|
Protection grade |
Display instrument IP65 , transducer IP68 |
|
|
transducer cable |
no |
10m(default) can be ordered as need but cannot longer than 100m |
|
Transducer installation |
According to the range and transducer select |
According to the range and transducer select |
|
Range |
50...500mm; 100...1000mm; 200...3000mm; 300...5000mm; 500...6000mm |
|
Resolution |
3mm or 0.1% ( which is bigger ) |
|
Response time |
< 200ms |
|
Display |
LED |
|
Emission angle |
20° |
|
Analog output |
4 ~ 20mA/500Ω LOADING |
|
S witch output |
RELAY DC 30V/ 5A , PNP/NPN ( OPTIONAL ) |
|
RS232/485 |
MODBUS protocol or customized protocol (optional ) |
|
Power supply |
Standard 24VDC (± 15% ) |
|
Ambient temperature |
-20 ~ +60℃ |
|
Protection Class |
IP65 (IP66 is selectable) |
|
Installation |
M56*2 |
|
Sensing range |
50...500mm; 70 ... 1000 mm; 80...2000mm; 200...3000mm; 240...4000mm |
|
Standard target plate |
100 mm x 100 mm |
|
Transducer frequency |
approx.255 kHz |
|
Response delay |
approx.125 ms |
|
LED blue |
Power on |
|
LED yellow |
solid : object in the evaluation range |
|
flashing: program function, object detected |
|
|
LED red |
solid: Error |
|
flashing: program function, no object detected |
|
Operating voltage U B |
10 ... 30 V DC , ripple 10 %SS |
|
No-load supply current I 0 |
≤ 45 mA |
|
Output type |
1 analog output 0-10V or 4…20mA. |
|
Resolution |
0.11 mm at max. sensing range |
|
Deviation of the characteristic curve |
± 1 % of full-scale value |
|
Repeat accuracy |
± 0.1 % of full-scale value |
|
Load impedance |
> 1kOhm |
|
Temperature influence |
± 1.5 % of full-scale value |
|
Ambient temperature |
-25 ... 70 °C (-13 ... 158 °F) |
|
Storage temperature |
-40 ... 85 °C (-40 ... 185 °F) |
|
Connection type |
Device connector M12 x 1 , 4-pin |
|
Protection degree |
IP65 (IP66 selectable) |
|
Material |
Housing: nickel plated brass or stainless steel or plastic |
|
Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam |
