Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANDU
-
Model Number:
-
WD19Y
-
Mounting hole diameter:
-
19mm
-
Head shape:
-
Flat head
-
Crust material:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Switch structure:
-
1NO1NC/2NO2NC
-
Operation type:
-
Rotate
-
Switch Rating:
-
3A / 250VAC
-
Certificate:
-
CE RoHS
Quick Details
-
Protection Level:
-
IP67/IK10
-
Max. Current:
-
3A
-
Max. Voltage:
-
12V, 24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANDU
-
Model Number:
-
WD19Y
-
Mounting hole diameter:
-
19mm
-
Head shape:
-
Flat head
-
Crust material:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Switch structure:
-
1NO1NC/2NO2NC
-
Operation type:
-
Rotate
-
Switch Rating:
-
3A / 250VAC
-
Certificate:
-
CE RoHS
Functional description.

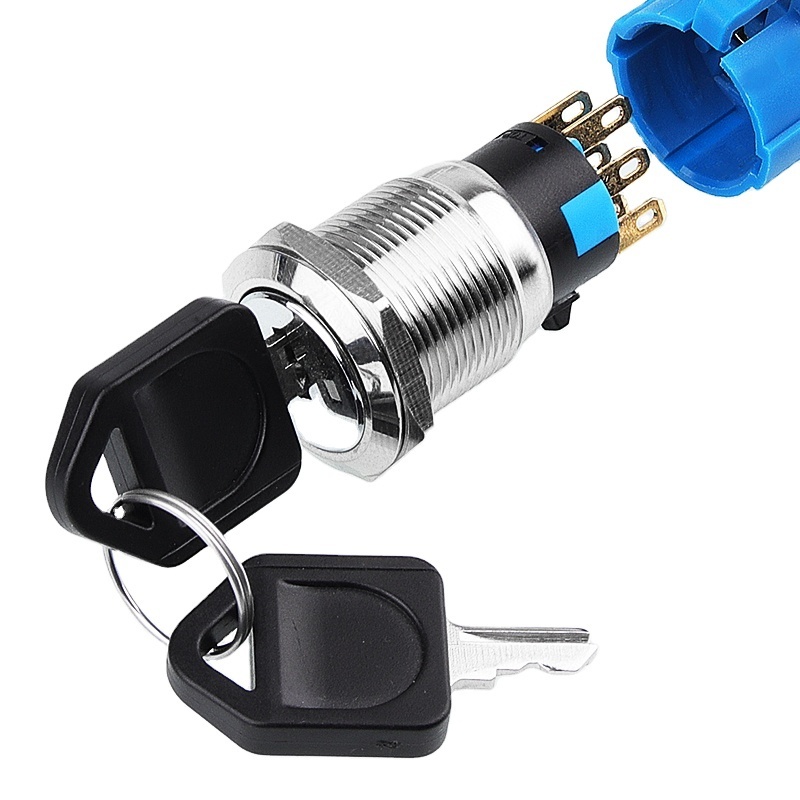

1. 3A metal key switch
2. Optional connector,To ensure contact performance,reduce waste of labor;
3. operation is more convenient;
4. With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5. Waterproof and dustproof grade up to IP65;
6. Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7. 1NO1NC / 2NO2NC function
8. It has applied of many patents ,CCC,CE approved;
9. 19MM SPST ON OFF IP65 IK10 momentary stainless steel key swihch
|
Model Description
|
|
|
|
|||
|
Model NO.
|
|
WD19Y key switch
|
|
|||
|
Mounting diameter
|
|
19mm
|
|
|||
|
Head shape
|
|
Flat Head / High Head
|
|
|||
|
Switch Combination
|
|
1NO1NC/2NO2NC
|
|
|||
|
Operation type
|
|
Momentary/ latching
|
|
|||
|
Illuminating type
|
|
Annular,power symbol,dot
|
|
|||
|
Illuminating color
|
|
/
|
|
|||
|
Lamp voltage
|
|
3V/6V/12V/24V/36V/110V/220V/250V
|
|
|||
|
Shell material
|
|
Stainless steel,aluminum oxide,copper plating
|
|
|||
|
The Others Parameters
|
|
|
|
|||
|
Project
|
Parameter
|
Project
|
Parameter
|
|||
|
ontact type
|
Slow moving single contact
|
Operation Schedule
|
Connected:1.8mm,Total:3.1mm
|
|||
|
Contact Resistance
|
≤50mΩ
|
Actuating Force
|
about 4N
|
|||
|
Insulation Resistance
|
≥1000mΩ
|
Mounting panel thickness
|
≤11mm. customised the others
|
|||
|
Dielectric Strength
|
1000VAC min
|
Nut torque
|
5~14N.m
|
|||
|
Ambient Temperature
|
-30℃~+80℃
|
Outshell/Press Key
|
Stainless Steel/Aluminum Oxide/Copper plate / According to the request
|
|||
|
Protection Levels
|
IK10
|
Diffuser
|
Environmental protection PC
|
|||
|
Electrical Life
|
Rated:2A250VAC-
100,000 time
|
Nut
|
Nickel brass
|
|||
|
|
Rated:5A250VAC-50,000 times
|
Base Seat
|
|
|||
|
|
Rated:8A250VAC-20,000 times
|
Bottom Seat
|
|
|||
|
|
Reated:10A250VAC- 20,000 times
|
Insert seat
|
|
|||
|
|
Momentary-500,000 times
|
Pins
|
H65 / H65 Silver Plated / Gold
|
|||
|
|
Latching-300,000 times
|
Contact
|
Environment-friendly Silver Contact
|
|||
|
Waterproof
|
IP67
|
Spring
|
Imported steel wire
|
|||
|
Switch Rated Load
|
|
|
|
|
|
|||||
|
Project
|
|
Parameter
|
|
|
|
|||||
|
Reated Insulation Voltage
|
|
AC250V
|
|
|
|
|||||
|
Fusing Current
|
|
3A
|
|
|
|
|||||
|
Rated Voltage
|
|
DC12V
|
DC24V
|
DC36V
|
AC220V
|
|||||
|
|
Nonreactive Load
|
3
|
2
|
2
|
3
|
|||||
|
|
Inductive Load
|
1
|
0.5
|
0.5
|
0.5
|
|||||
|
Led Lamp Parameters
|
|
|
|
|||
|
Project
|
|
/
|
|
|||
|
Led type
|
|
/
|
|
|||
|
Luminous color
|
|
/
|
|
|||
|
Rated Voltage
|
|
/
|
|
|||
|
Rated Current
|
|
/
|
|
|||
|
Reference Life
|
|
/
|
|
|||
