Quick Details
-
Power:
-
5W.
-
Voltage:
-
DC 9-12V, 9-24V.
-
Warranty:
-
12 Months
-
Place of Origin:
-
China (Mainland).
-
Brand Name:
-
YIMU.
-
Model Number:
-
WX7310d.1
-
Image sensor:
-
1/4" Color CMOS.
-
Effective pixels:
-
628px * 582px.
-
Resolution:
-
480 TV Lines.
-
Lens angle:
-
120° ~ 170° Large Angle.
-
Certificate:
-
CE, FCC, RoHS.
-
Waterproof grade:
-
IP67.
-
Connector:
-
RCA + DC Plug.
-
TV system:
-
PAL / NTSC Optional.
-
Certification:
-
ce
Quick Details
-
Car Fitment:
-
Abarth, AACHEN SCHNAZER AC SCHNITZER
-
View Angle:
-
120°-170°
-
Function:
-
Waterproof, NIGHT VIEW
-
Power:
-
5W.
-
Voltage:
-
DC 9-12V, 9-24V.
-
Warranty:
-
12 Months
-
Place of Origin:
-
China (Mainland).
-
Brand Name:
-
YIMU.
-
Model Number:
-
WX7310d.1
-
Image sensor:
-
1/4" Color CMOS.
-
Effective pixels:
-
628px * 582px.
-
Resolution:
-
480 TV Lines.
-
Lens angle:
-
120° ~ 170° Large Angle.
-
Certificate:
-
CE, FCC, RoHS.
-
Waterproof grade:
-
IP67.
-
Connector:
-
RCA + DC Plug.
-
TV system:
-
PAL / NTSC Optional.
-
Certification:
-
ce
Product Description
|

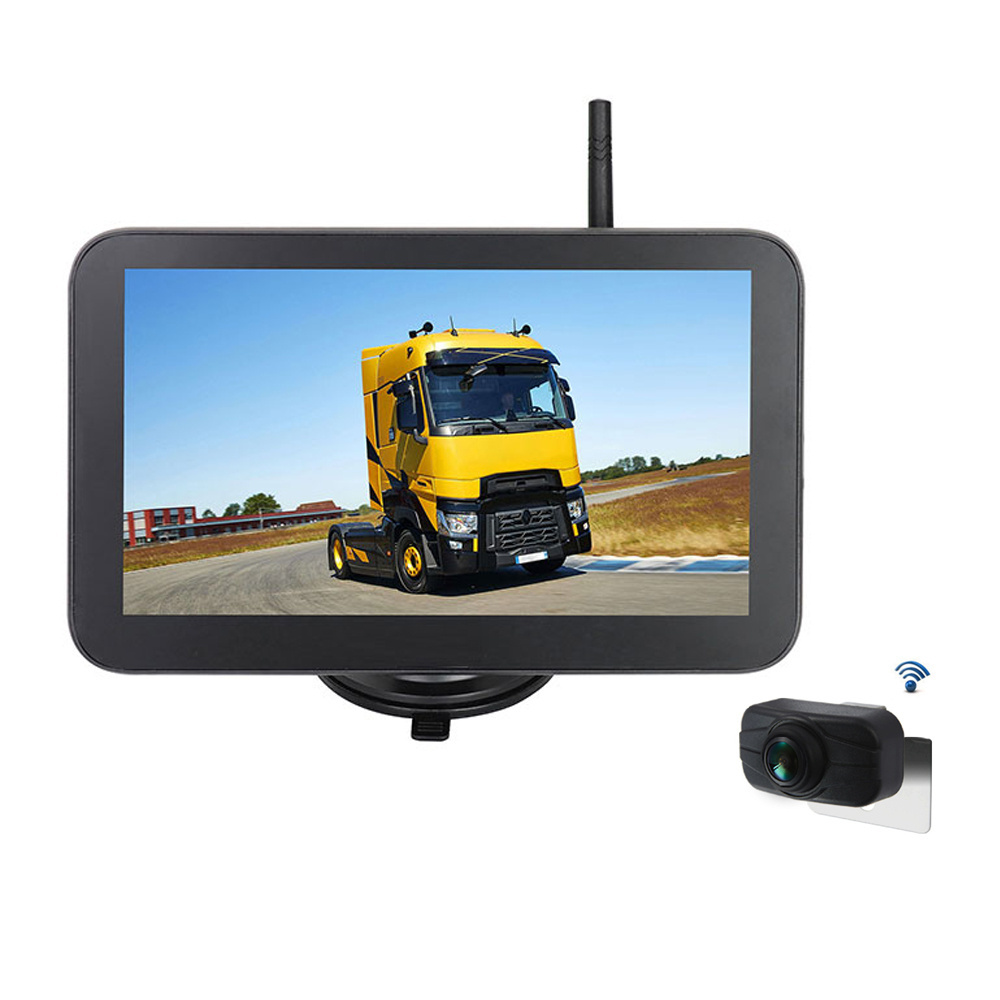

Digitial Wireless Backup Camera Kit
|
Monitor Specification
|
Backup Camera Specification
|
|
Power Supply
|
DC12V-24V
|
DC12V-24V
|
|
Operating temperature
|
-20℃~+70℃
|
-20℃~+70℃
|
|
Storage temperature
|
-30℃~+80℃
|
-30℃~+80℃
|
|
Image Sensor
|
|
1/3” HD CMOS
|
|
View Angle
|
|
120°[H] 170°[D]
|
LCD Monitor Specification:
Screen size: 7 inch LCD screen
Three Button: M button,Up button, Down button
Operating voltage: DC9-36V Working temperature: -20---- +65*
Resolution: 1080POperating Current: MAX 150mA
Parking guide line: 5 options can be set via menukeys(This fountion can choose)
Bracket: Suction cup type
Transmission distance: 100 meters in barrier free open space
Short latency time: 150ms
Camera Specification:
Image Sensor: 1/3 inch color CMOS 7430
Effective pixelsL Resolution:733H*493V Min illumination:0.1LUX
Lens:1.8mm Wide angle horizontal 100 degree,diagonal 140°
Clip-on adhesive bracket for easy installation
Operating voltage: DC9- 36V Camera operating current: MAX 150mA
Working temperature:-20?--- +65*Transmission
Frame rate:25f
