Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
TRQ600
-
Brand Name:
-
TONRY
-
Product name:
-
Welded wire mesh
-
Length:
-
Max. 6m
-
Width:
-
1.2m-2.4m
-
Surface treatment:
-
Black or Galvanized
-
Hole shape:
-
Square Hole
-
Hole size/Aperture:
-
50x50mm,100x100mm,150x150mm,as reuired
-
Certification:
-
ISO
-
Standard:
-
AS/NZS4671,ASTM 1064,ASTM A82,ASTM A185
Quick Details
-
Material:
-
HP300
-
Type:
-
Welded Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
TRQ600
-
Brand Name:
-
TONRY
-
Product name:
-
Welded wire mesh
-
Length:
-
Max. 6m
-
Width:
-
1.2m-2.4m
-
Surface treatment:
-
Black or Galvanized
-
Hole shape:
-
Square Hole
-
Hole size/Aperture:
-
50x50mm,100x100mm,150x150mm,as reuired
-
Certification:
-
ISO
-
Standard:
-
AS/NZS4671,ASTM 1064,ASTM A82,ASTM A185
Dia. 3.15x1400x2400mm welded wire mesh
TONRY welded wire mesh is made of steel wires,and electrically resistant welded together to form a flat mesh sheet with high strength,which has been designed in order to provide a safe working environment by providing roofing and ribbing support on the mine.The mesh can be supplied in kinds of configurations using different wire diameter and wire spacing.
Features&Advantages
Ø Made from high strength steel wire
Ø Wire diameters, spacing and overall dimensions can be customi z ed to suit particular applications
Ø Customi z ed sheets available with double or additional wires if requested
Ø Trimmed edges to ensure there is limited overhang of wire to cause injury when handling
Ø Easy for installation
Ø Suitable for shotcrete applications
Ø Available in black or hot dip galvanized
|
Item |
M easurement unit (mm) |
|
Wire diameter |
3.15mm, 4mm, 5mm, 6mm,as customer’s request |
|
Hole size/Opening/Aperture |
50 x 50mm,100 x 100mm,150 x 150mm,200 x 200mm, as customer ’ s request |
|
Width of mesh |
1200mm, 1800mm, 2400mm,as customer’s request. |
|
Length of mesh |
Max.6000mm |
|
Overhang of wire |
Less than 3mm or punching |
Mechanical Properties:
T ONRY Standard TRQ600, AS/NZS4671, ASTM 1064, ASTM A82, ASTM A185

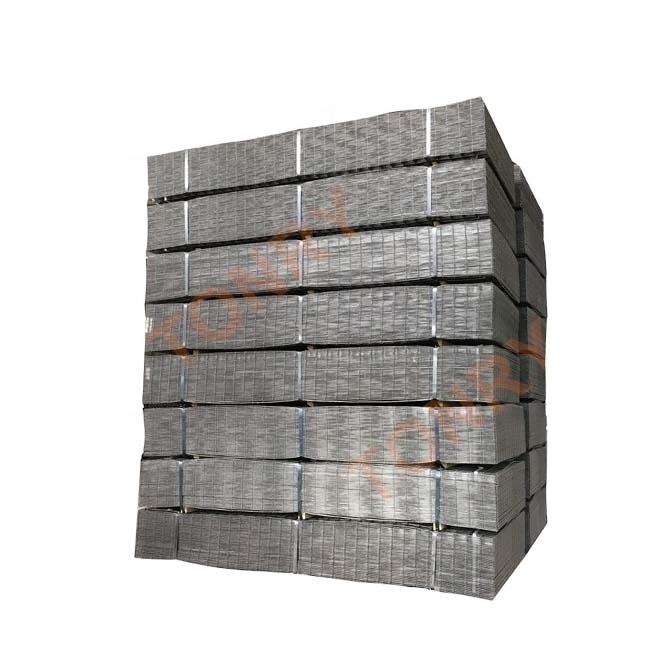

Package
Ø Packed by Steel or Fiber strapping
Ø Package:25 -1 00 sheets each bundle as specified
Applications
Ø Mines
Ø Tunnels
Ø Slopes
Ø Places where need ground support
TONRY Advantages
Ø Ten years' Experience and Innovation
Ø Automatic Production
Ø Strict Quality Assurance:accoding to ISO,SGS,ASTM, AN/NZS standard
Professional Laboratory
Advanced Equipment
Ø Modern and Standard Factory
Ø P rofessional A fter-sales S ervice: 7X24H on line & Technical support
Our Philosophy:
Protect the miners in the world!
Support the mines on the earth!
