Quick Details
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
256 cm³
-
Injection Rate (g/s):
-
220 g/s
-
Injection Weight (g):
-
230 g
-
Screw diameter (mm):
-
42 mm
-
Distance between Tie Bars:
-
520x470mm
-
Weight (KG):
-
4000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
UP-128
-
Brand Name:
-
UNION POWER
-
Power (kW):
-
11 kW
-
Screw Diameter:
-
42mm
-
Screw speed:
-
200rmp
-
Max mold height:
-
450mm
-
Min mold height:
-
135mm
-
Pump pressure:
-
16Mpa
-
Machine Dimension:
-
4.2x1.2x1.8m
-
Machine Weight:
-
4T
-
Injection Weight:
-
230g
-
Power(W):
-
11KW
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
420mm
-
Distance between Tie Bars(Height)(mm):
-
380mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
256 cm³
-
Injection Rate (g/s):
-
220 g/s
-
Injection Weight (g):
-
230 g
-
Screw diameter (mm):
-
42 mm
-
Distance between Tie Bars:
-
520x470mm
-
Weight (KG):
-
4000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
UP-128
-
Brand Name:
-
UNION POWER
-
Power (kW):
-
11 kW
-
Screw Diameter:
-
42mm
-
Screw speed:
-
200rmp
-
Max mold height:
-
450mm
-
Min mold height:
-
135mm
-
Pump pressure:
-
16Mpa
-
Machine Dimension:
-
4.2x1.2x1.8m
-
Machine Weight:
-
4T
-
Injection Weight:
-
230g
-
Power(W):
-
11KW
UNION POWER Machinery is Factory for Plastic Injection Molding Machine.
=============================================
120ton 128ton 130ton injection molding machine
UINON POWER Technical parameters:
| Plastic Electric switches making injection machine | |||
| Technical Parameters | Model UP-128T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 42 | 45 | |
| Shot Volume (cm3) | 256 | 294 | |
| Injection weight (g) | 230 | 265 | |
| injection pressure (Mpa) | 181 | 156 | |
| Screw speed (rmp) | 200 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1280 | ||
| Open stroke (mm) | 350 | ||
| Max Mold height (mm) | 450 | ||
| Min Mold height (mm) | 135 | ||
| Space between tie bars(mm) | 420x380 | ||
| Ejector force (KN) | 38 | ||
| Ejector stroke (mm) | 120 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 11 | ||
| Heating power (KW) | 7.7 | ||
| Machine dimension (M) | 4.2x1.2x1.8 | ||
| Machine weight (T) | 3.2 | ||
| Oiltank cubage (L) | 170 | ||

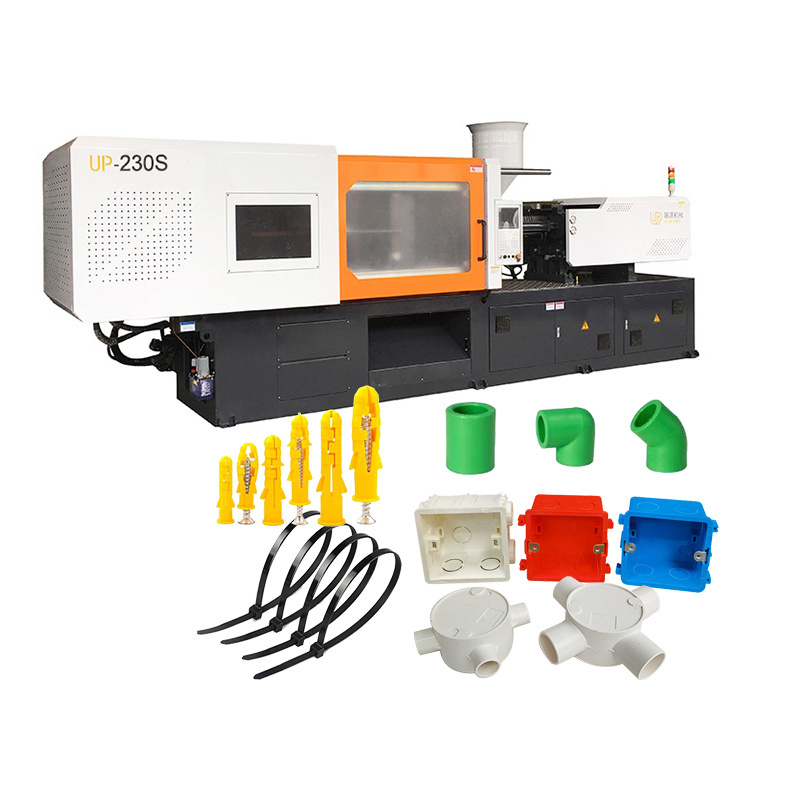

UINON POWER Machine photo :
===================================================================================================
===================================================================================================
===================================================================================================
===================================================================================================
UINON POWER Loading pictures:
UINON POWER Machinery also have other machine model size:
Welcome to join UINON POWER Machinery !
Please contact UNION POWER Sales for more details!
