Quick Details
-
Lock Plate Dimensions(L x W x D):
-
91Lx30Wx28H(mm)
-
Strike Plate Dimensions(L x W x D):
-
33Lx21.5Wx28.5H(mm)
-
Rated Operating Voltage:
-
DC 12V or 24V (Customization Available)
-
Standby Current:
-
300mA
-
Optional Functions:
-
Door Status Sensors
-
Face place material:
-
Zinc alloy,stainless steel
-
Weight in kg:
-
0.30kg
-
Suitable for:
-
Secure Locking of furniture (Wooden & Aluminum& Metal Furniture frame)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Version:
-
Fail locked(the bolt is locked when the current is off)
-
Shear strength:
-
200Lbs/100KG
-
Lock Plate Dimensions(L x W x D):
-
91Lx30Wx28H(mm)
-
Strike Plate Dimensions(L x W x D):
-
33Lx21.5Wx28.5H(mm)
-
Rated Operating Voltage:
-
DC 12V or 24V (Customization Available)
-
Standby Current:
-
300mA
-
Optional Functions:
-
Door Status Sensors
-
Face place material:
-
Zinc alloy,stainless steel
-
Weight in kg:
-
0.30kg
-
Suitable for:
-
Secure Locking of furniture (Wooden & Aluminum& Metal Furniture frame)
Electric furniture refrigerator self locking window sauna gym locker safe box drawer cabinet lock
Overview

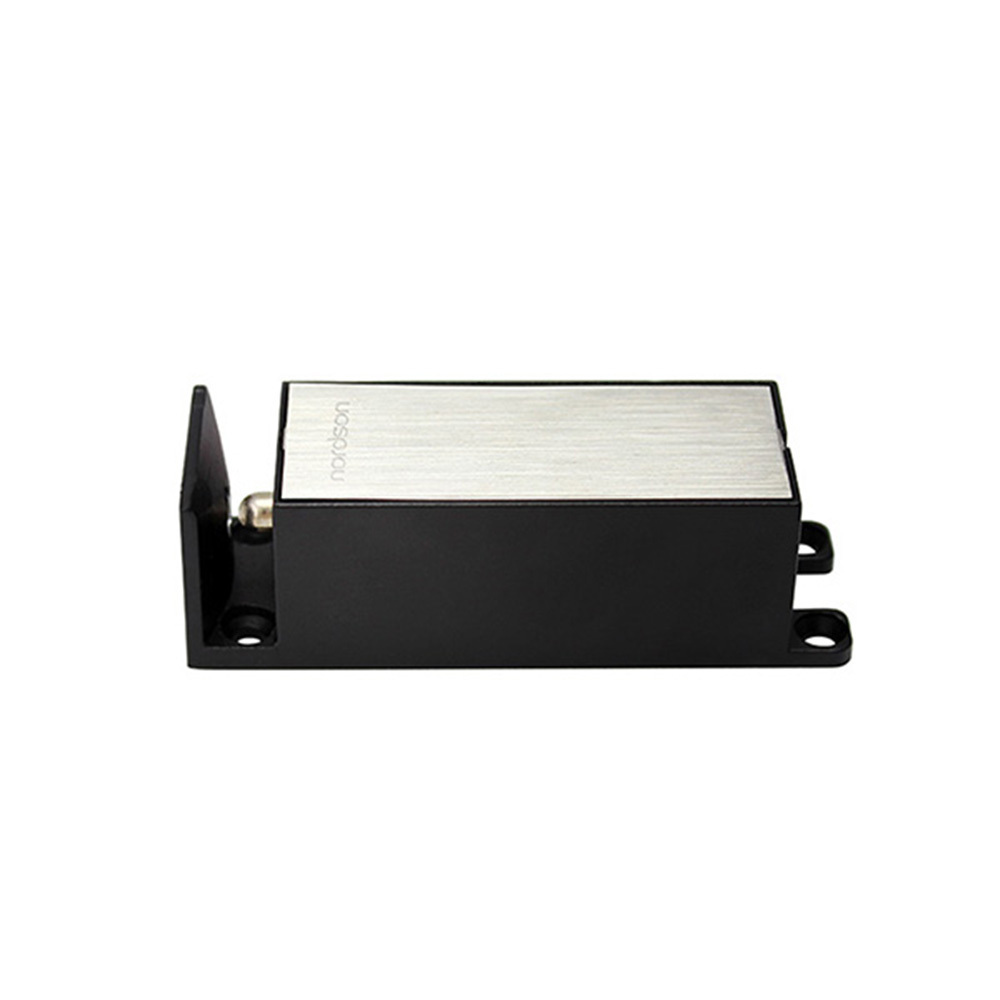

NI-19 Metal Cabinet Locks , suitable for all kinds of boxes, cabinets and other occasions where it should be open frequently. Combine with safe box. cabinet storage etc in demand shopping malls. Instant electrified,safe,durable,energy saving, easy to install.
Specifications:
| Version | Fail locked(the bolt is locked when the current is off) |
| Shear strength | 200Lbs/100KG |
| Lock Plate Dimensions(L x W x D) | 91Lx30Wx28H(mm) |
| Strike Plate Dimensions(L x W x D) | 33Lx21.5Wx28.5H(mm) |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Standby Current | 300mA |
| Optional Functions | Door Status Sensors |
| Face place material | Zinc alloy,stainless steel |
| Suitable for | Secure Locking of furniture (Wooden & Aluminum& Metal Furniture frame) |
| Weight in kg | 0.30kg |
| CE-mark for building | YES |
| Rohs-mark for building | YES |
Package Includes:
1 x Electric Bolt Lock
1 x Installation Accessories
1 x User Manual
