Quick Details
-
Product Name:
-
100p varifocal ip camera
-
Title:
-
Guangdong factory 100p varifocal ip camera
-
Product Color:
-
White/Black/Grey color optional
-
lens:
-
Mega lens 2.8~12mm varifocal
-
LED:
-
36 pcs
-
Software:
-
XMEYE
-
Feature:
-
P2P Cloud With Mobile Surveillance
-
Certificate:
-
CE, Rohs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CTVISON
-
Model Number:
-
CT-VID4105
-
Product Name:
-
100p varifocal ip camera
-
Title:
-
Guangdong factory 100p varifocal ip camera
-
Product Color:
-
White/Black/Grey color optional
-
lens:
-
Mega lens 2.8~12mm varifocal
-
LED:
-
36 pcs
-
Software:
-
XMEYE
-
Feature:
-
P2P Cloud With Mobile Surveillance
-
Certificate:
-
CE, Rohs
Guangdong factory good quality 100p varifocal ip camera
Why Choose Us
- 10 Years Manufacturing experience just for CCTV products
- Well-Known Brand ensure quality and serivce
- Strict quality control system with valued test machines
- Lowest price enure your benifit
- 24 * 7 days full time services satisfy you
Product Advatage
- 4 Times product test separately for PCBA, Lens assembly, semi-product, finisned product
- 3 Times 24 hours Aging test separetely for PCBA, semi-product and finished product
- Failed rate is 0.3%
- Done waterproof test
- Done vibration machine test
- Done high and low temperature machine test
- For details please refer to the part of "Production Flowsheet" as below

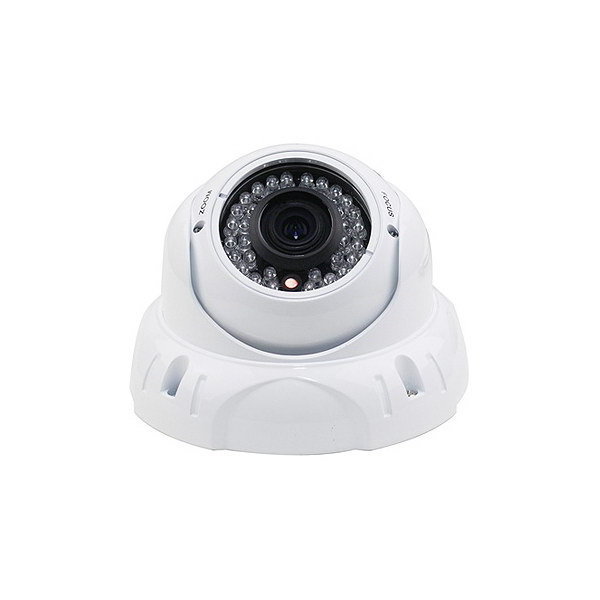

Pictures of 100p varifocal ip camera:
Feature of 100p varifocal ip camera:
-
Smart
Dome Camera
- White/ Black/ Grey color optional
- P2P cloud with mobile surveillance
- 36 pcs IR LED
- 30 Meters Infrared distance
- Clear video with vivid color
- Day/ Night security survillance
- 100p varifocal ip camera
Specification
| Model | CT-VID4105 | CT-VID3105 | CT-VID2105 |
| Image sensor | Hi3518E +1/4 "OV 9712 | Hi3518E +1/3 "AR0130 | Hi3516C +1/2.7" OV2710 |
| Min.illumination | Color 0.1Lux @ (F1.2,AGC ON), 0 LUX with IR | Color 0.01Lux @ (F1.2,AGC ON), 0 LUX with IR | Color 0.06Lux @ (F1.2,AGC ON), 0 LUX with IR |
| Black /white 0.2 Lux @ (F1.8,AGC ON), 0 LUX with IR | Black /white 0.01 Lux @ (F1.2,AGC ON), 0 LUX with IR | Black /white 0.08 Lux @ (F1.2,AGC ON), 0 LUX with IR | |
| Shutter | 1/50(1/60)s - 1/10,000 s | ||
| Lens | HD Mega lens 2.8~12mm varifocal | ||
| Day/night | Support IR-CUT | ||
| Video compression | H.264 High Profile | ||
| Bite rate | 32 Kbps~6Mbps | 100Kbps~6Mbps | 100 Kbps~8Mbps |
| Max.image reolution | 1280* 720 | 1280* 960 | 1920* 1080 |
| Frame rate | 50Hz: 25fps (1280* 720) | 50Hz: 25fps(1280* 720) (1280* 960) | 50Hz: 25fps(1920* 1080) (1280* 720) |
| 60Hz: 30fps (1280*720) | 60Hz: 30fps(1280*720) (1280*960) | 60Hz: 30fps(1920*1080) (1280*720) | |
| IR LED | 36 pcs | ||
| IR Distance | 30 Meters | ||
| Image setting | Saturation, brightness and contrast are adjustable through IE browser or client. | ||
| Intelligent alarm | Motion detection, video loss, cable break, IP address conflicts | ||
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP(HTTPS,SIP ,802.1x, IPv6 optional) | ||
| Basic | anti-flicker, dual-stream, heartbeat, password protection | ||
| Net interface | 1 * RJ45 10M/100M | ||
| Working condition | -10℃ ~ 60℃, humidity less than 90% | ||
| Waterproof | IP66 | ||
| Power Supply | DC12V 1A | ||
| Dimension | D140mmx120mm | ||
| Weight | 800g | ||
Software Show
Product Certificate
Production Flowsheet
MOQ
- 1 pcs for sampe, buyer need pay it in advance, the amount will be deducted from next order
- 50 pcs after sample order, support mixed batch.
Warranty
1. CCTV Cameras
- Two years, products with your own logo or without logo
2. DVR, NVR
- One year, products with your own logo or without logo
3. Speed Dome
- One year, products with your own logo or without logo
Conditions and Terms
- The warranty starts from the delivery date from our factory;
- During the warranty, any defective product will get repaired or replaced for free;
- The warranty is unavailable for those products which are broken by the violence or the carelessness or repaired or altered without the authorization.
- A RMA form will be asked to fill in.
Payment Terms
1. Telegraphic Transfer (T/T)
- Usually we accept 100% T/T in advance;
- Subjected the order amount, we can accept 30% deposit T/T in advance + 70% balance T/T before the shipment.
2. Paypal
- 4.4%+$0.03 commission charges will be added into the amount.
3. Western Union
- Please offer us MTCN and the sender name after you make the payment.
4. Letter of Credit(L/C)
- L/C is available for the sea transit only. We don't accept L/C for the air transit.
- On condition that order amount reaches some one then we will accept L/C;
- We accept L/C at sight only;
Lead Time
- Sample orders will be delivered from our factory within 3 days.
- General orders will be delivered from our factory within 3 - 10 days.
- Big orders will be delivered from our factory within 5 -15 days at most.
Shipme 1. By TNT, DHL, UPS or FedEx.;
- TNT: www.tnt.com
- DHL: www.dhl.com
- UPS: www.ups.com
- FedEx: www.fedex.com
2. By our forwarding agent(by air or by sea);
3. By your own forwarding agent
4. By domestic forwarding agents to any city in China.
ODM/ OEM Services
1. Logo
- Please offer us your own high resolution logo in JPG format;
- There should be two colors at most in the logo;
- There should be no gradient effect in the logo
2. Label
- Please offer us your own model numbers and relative requirements.
3. Manual
- Please offer us the finished manual file that can be printed directly.
4. Packing Box
- We will offer you the demension and the design file;
- Please design your own style based on this file then send it back to us;
- We will print some samples for your checking;
5. Housing
- Please offer us the housing design file then we will offer you a sample for your checking;
Company show
Our Honor
Exhibition Show
Our Promise
- We promise our customers good products backed by good people
- We take pride in committing to the needs and demands of our clients.
- To this end we actively seek to understand our clients needs;
- to supply products of superior quality with an ease-of-use not found with our competitors’ offering, and to provide the best possible service.
Contact Us
- We hope to do win-win business with u soon, please add my personal information of 2-dimensional bar code into your contact list, and waiting for ur enquiry, tks
