Quick Details
-
Power supply:
-
220V/ 110V
-
Rated power:
-
120W*2
-
Working Temperature:
-
-50°C~50°C
-
Usage:
-
Iron gate, wooden gate, villa gate
Quick Details
-
Place of Origin:
-
Fujian, China
-
Certificate:
-
National patent, CE
-
Color:
-
Gold, gray
-
Power supply:
-
220V/ 110V
-
Rated power:
-
120W*2
-
Working Temperature:
-
-50°C~50°C
-
Usage:
-
Iron gate, wooden gate, villa gate
|
Input Voltage |
220V/ 110V |
|
Working Voltage |
DC 24V |
|
Ambient Temperature |
-50 ~ +50 Celsius degree |
|
Gate Width (per wing) |
<= 6M |
|
Gate Weight (per wing) |
<= 600kgs |
|
Regular Components |
2 motors, 1 panel, 2 remote controllers |
|
Optional Parts |
IR sensor, storage battery, visual doorbell, card reader, fingerprint reader |
|
Weight (kg) |
23 |
|
Dimension (cm) |
42*32*31 |
|
Package |
Color printing carton with foam |
Basic functions:
1. open up or close up in sequence
2. Automatically stopping function against extra resistance
3. Infrared protection interface
4. Back-up power supply interface
5. Operating time limit protection
6. Optional operation mode for single or dual wing
7. Adjustable interval setting in sequent close-up
8. Adjustable operating time limit setting
9. Automatically stopping and running reversely against excessive resistance during closing-up
10. Interface for card reader and underground detector
11. Adjustable time setting for automatic close-up function
Details

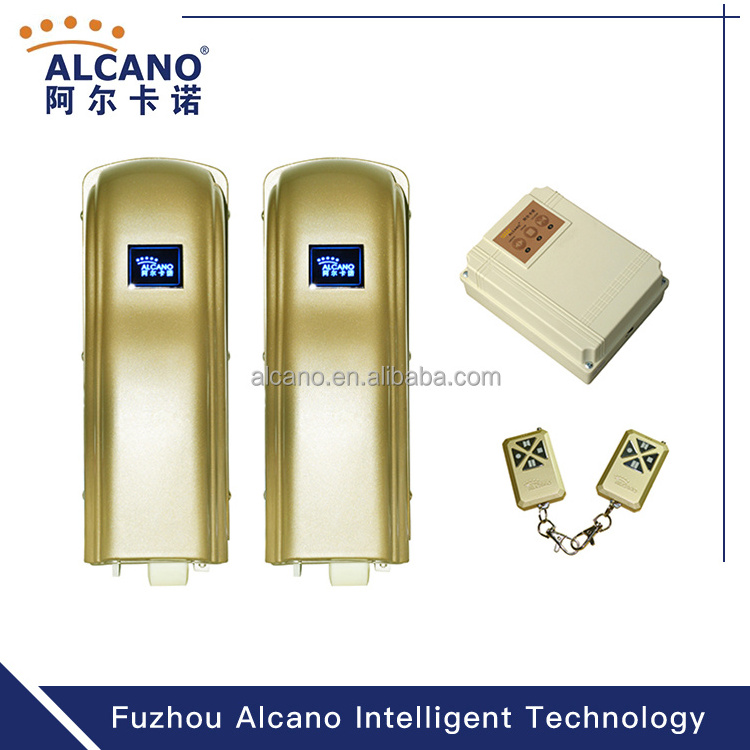

Our PM170 wisdom style swing gate opener is the deluxe version of Alcano swing gate opener. Meeting the demand by the most professional user to test the function limit of remote control automatic gate system.
2 wired control system and integrating movement limiting with motor.
Product features:
1. Easier to drive the gate: The motor is mounted on the far end from the hinge point.
2. Special sliding groove: This enables the tolerance to the unevenness of road surface up to
90mm, maximum tolerance up to 300mm.
3. Unlimited opening angle: As far as the opener is concerned, the opening angle can be
greater than 180°.
4. Automatic locking unit: This unit combines the closing and the locking actions.
5. Optional manual operation: At power cut, the operation mode can be easier switched to
manual with a key.
6. Convenient installation: Can be mounted to any gate regardless of the condition of gate
posts or gate itself.
10 Intelligent Functions:
1. Single or dual gate arm close or open operation mode: The user can make the choice with the remote controller.
2. Prevent mal-operation: The opener cvan distinguish any overlapped instruction.
3. Reminding the close-up: At fully closing and locking of the gate, the controller will remind the user by giving a warning tone of "Di".
4. Optional infra-red protection: When linked with infrared detector, the opener can pause operation whenever any passenger or vehicle is in between the gate.
5. Compatible with auto-identification system: Linked with camera, card reader, etc., the opener can jointly achieve the purpose of safety and antitheft, entry or exit.
6. Lock-up of control box: Use the remote controller to deactivate the panel buttons to prevent unauthorized operation of the gate.
7. Anti-Entrapment protection: The opener will automatically stop running in the case.
8. Overtime protection: To protect the motors, a one-way operation will be automatically terminated at the 60th second.
9. Automatic closing (optional function): The user can choose to activate this function by presetting in the control box.
10. Compatible with stand-by power supply: The opener can work with stand-by powersupply, such as storage battery or solar energy battery.
