Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Z-CROWN
-
Model Number:
-
ZC20230427-1893
-
Product name:
-
RJ45 Connector
-
AWG:
-
23/24/26/28 AWG
-
Pin Material:
-
F 3 15 30 50 U
-
Insulation Diameter:
-
1.1/1.2
-
Pin:
-
4/6/8/10 Pin
-
Shell Material:
-
Environmental Plastic
-
Conductor:
-
Oxygen-free Bare Copper
-
OEM:
-
Customized color can be made.
-
Standard:
-
IEC/ISO 568B.C
-
Temperature Range:
-
-40°C~+70°C
Quick Details
-
Type:
-
RJ45
-
Application:
-
Network
-
Gender:
-
Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Z-CROWN
-
Model Number:
-
ZC20230427-1893
-
Product name:
-
RJ45 Connector
-
AWG:
-
23/24/26/28 AWG
-
Pin Material:
-
F 3 15 30 50 U
-
Insulation Diameter:
-
1.1/1.2
-
Pin:
-
4/6/8/10 Pin
-
Shell Material:
-
Environmental Plastic
-
Conductor:
-
Oxygen-free Bare Copper
-
OEM:
-
Customized color can be made.
-
Standard:
-
IEC/ISO 568B.C
-
Temperature Range:
-
-40°C~+70°C
Z-Crown Factory More Products Please Click Follow Items.
↓
↓ ↓
|
Network Cables :
|
||||
|
Other Cables :
|
||||
|
Fiber Optic :
|
||||
|
Networking
Accessories :
|
||||
|
|
Product Description
Specification
|
Product Name
|
RJ45(RJ11/12)Connector For Cat5e Cat6 Cat7 Cat8
|
|
|
|
Electrical
|
Current Rating
|
1.5AMPS at 25 ℃
|
|
|
|
Voltage Rating
|
125V/ AC
|
|
|
|
Insulation Resistance
|
1000MΩ/ Min at 500V DC EIA-364-21C
|
|
|
|
Withstand Voltage
|
1000V AC RMS OR 1500V DC at 0.5MA 50HZ/ 60HZ/ Min EIA-364-20B
|
|
|
|
Connect Resistance
|
40MΩ Max, EIA-364-23B
|
|
|
Mechanical
|
Retention Strength
|
57.83N/ Min EIA-364-98
|
|
|
|
Durability
|
1000 Mating Cycles/ Min
|
|
|
|
Environmental
|
Yes
|
|
|
|
Operation Temperature
|
一20℃ to 70℃
|
|
|
|
Storage
|
一10℃ to 40℃ Relative Humidity
|
|
|
Material
|
Shell/ Housing
|
Eco-friendly plastic
|
|
|
|
Flammablity Class
|
UL94V-0/ V-2
|
|
|
|
Terminal
|
Thickness 0.3mm Phosphor Bronze Selectrive Gold-plated Over Nickel
|
|
|
|
Gold-plated
|
Fu, 1u, 3u, 5u, 15u, 30u and 50u.
|
|

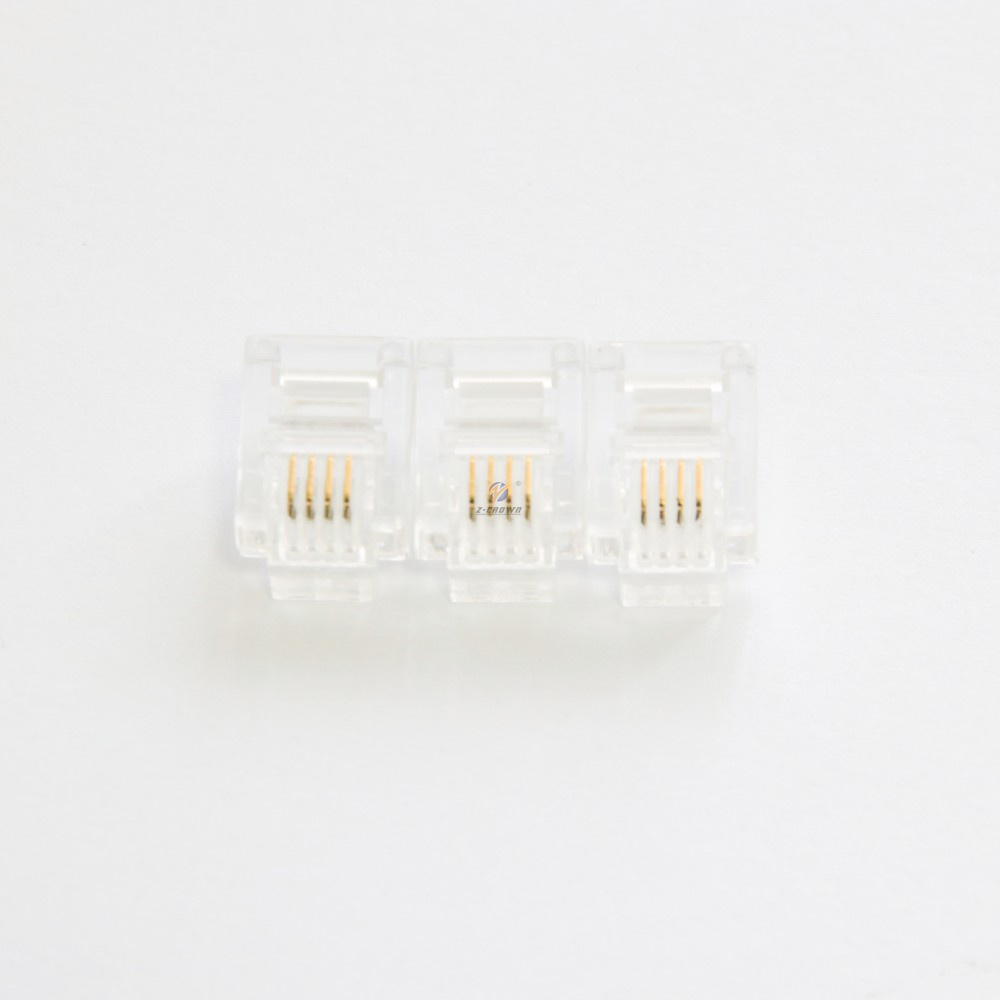

Products Show
