Approvals and standards
ROHS
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LANKA
-
Model Number:
-
OEM
-
Product Name:
-
pvc/pu spiral cable
-
conductor:
-
fine strands copper wire
-
rated voltage:
-
0.75-1.0mm2 300/500V
-
test voltage:
-
3000V
-
Insulation resisistance:
-
>20 Gohm x cm
-
operating temperature:
-
ature: -35℃-+70℃
-
Wrapping tape:
-
Special non-woven Wrap cushioning
-
Outer jacket color:
-
Black
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LANKA
-
Model Number:
-
OEM
-
Product Name:
-
pvc/pu spiral cable
-
conductor:
-
fine strands copper wire
-
rated voltage:
-
0.75-1.0mm2 300/500V
-
test voltage:
-
3000V
-
Insulation resisistance:
-
>20 Gohm x cm
-
operating temperature:
-
ature: -35℃-+70℃
-
Wrapping tape:
-
Special non-woven Wrap cushioning
-
Outer jacket color:
-
Black

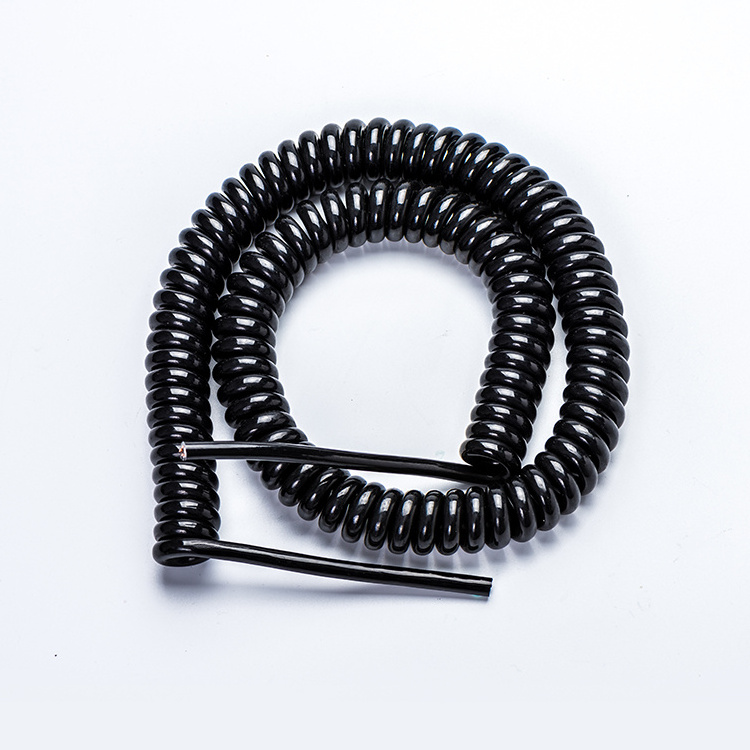

Product Structure
|
Conductor
|
Fine strands copper wire, according to VDE0295 CLASS 5
|
|
Conductor insulation
|
High quality imported TPE insulation
|
|
Wire color
|
Colours core wire
|
|
Wrapping tape
|
Special non-woven wrap cushioning
|
|
Outer jacket material
|
High quality imported PU or TPE-E
|
|
Outer jacket color
|
Black
|
Specification
|
Rated voltage
|
0.75~1.0mm2 : 300/500V
1.5mm2 : 450/750V
|
|
Test voltage
|
3000V
|
|
Insulation resistance
|
>20 Gohm x cm
|
|
Operating temperature: Fixed installation
|
-35℃~+70℃
|
|
Flame resistance
|
Following IEC60332-1or2
|
Special Characteristic
1.Maximum stretch length is the 5 times of the coil length.
2.High resilience (typical big coil).
3.Good oil resistance, abrasion resistance, cold resistance, weatherability.
Application
Widely used in hostile environments,mechanical engineering,construction industry,construction industry,medical equipment,and used in wet inddor and outdoor enviroment,used in these occasion which need big diameter cable,ect.
Lanka Industrial Automation Shanghai Co.,Ltd is an advanced manufacturer integrating research and development,production,sales and service together,We specialize in developing and manufacturing special cables.
The main products are power cords, robot cables, reel cables, flat cables, spiral cables, CE certified flexible cables, data cables, special customized cables, etc. The company has a strong technical research and development team, the core technical team consists of several professional Composed of a team of senior engineers with professional background, the technical team makes full use of profound professional theory and rich practical experience to independently research and develop, constantly penetrate the heart, and the quality is guaranteed.
In 2020, it will obtain the TILVA certification for industrial robot flexible cables from the National Robot Testing and Evaluation Center.
Products are widely used in key projects such as industrial robots, CNC machine tools, laser equipment, logistics systems, packaging equipment, lifting systems, lifting equipment, etc. Excellent quality and service have received widespread praise from the industry and customers.
