Quick Details
-
Application:
-
Workshop
-
Type:
-
Sliding door motor
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Anlin
-
Model Number:
-
QL-600 A
-
Motor Voltage:
-
DC 24 V
-
Product name:
-
Swing Electric Door Gate Opener Motor Controller
-
Push Force:
-
600N
-
Input Voltage:
-
AC220 V
-
Moving Speed:
-
17 m/min
-
Working Temperature:
-
-50~+50
-
Motor Power:
-
35X2
-
Remote Distance:
-
50m
-
Drop Off And Landing:
-
0~250 mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Workshop
-
Type:
-
Sliding door motor
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Anlin
-
Model Number:
-
QL-600 A
-
Motor Voltage:
-
DC 24 V
-
Product name:
-
Swing Electric Door Gate Opener Motor Controller
-
Push Force:
-
600N
-
Input Voltage:
-
AC220 V
-
Moving Speed:
-
17 m/min
-
Working Temperature:
-
-50~+50
-
Motor Power:
-
35X2
-
Remote Distance:
-
50m
-
Drop Off And Landing:
-
0~250 mm
Anlin changes the traditional shutter door motor and leads the whole industry. We invite you to join the "blue ocean plan" for win-win development.

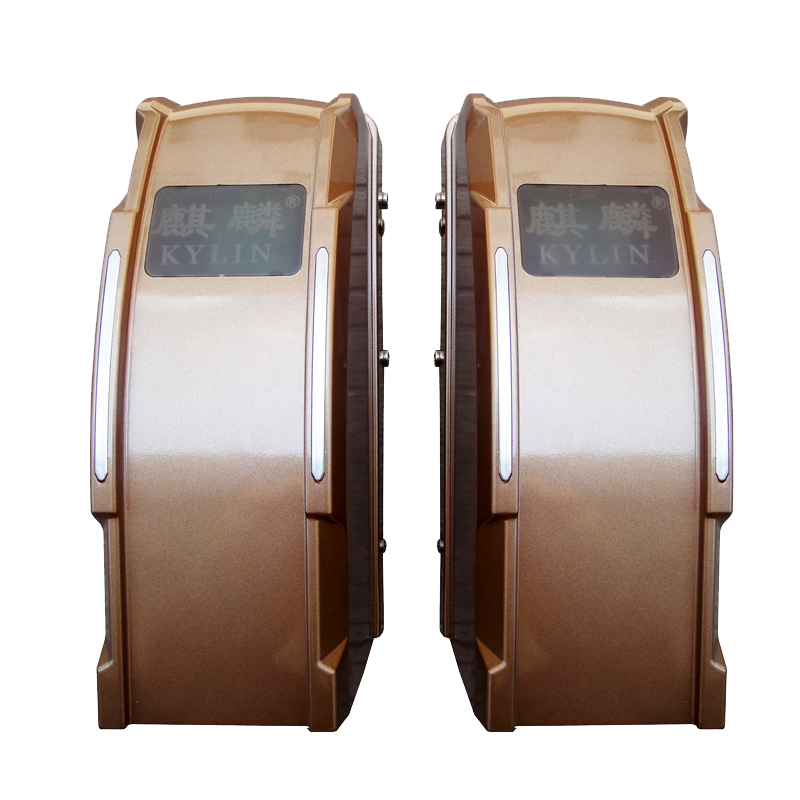

Swing Electric Door Gate Opener Motor Controller
Models:QL-600 A
Input Voltage : AC220 V
Motor Voltage : DC 24 V
Push Force : 600 N
Moving Speed : 17 m/min
Working Temperature : -50~+50
Motor Power : 35X2
Remote Distance : 50 m
Drop Off And Landing 0~250 mm
1.Easier to drive the gate: the motor is mounted on the far end from the hinge point Special
2.Sliding groove: this enables the tolerance to the unevenness of road surface up to 90mm ,
maximum tolerance up to 300mm .
3.Unlimited opening angle : as far as the opener is concened , the opening angle can be
greater than 180.
4.Automatic locking unit: this unit combine the closing and the locking actions.
5.Optional manual operation : at power cut , the operation mode can be easily switched to.
6.Manual with a key convenient installation: can be mounted to any gate regardless of the
condition of gate.
1.Intelligent remote control swing gate opener
2.Remote control box
3.Left door (normal type) 5x0.75mm, two connection wires, (intelligent type) 2x0.75mm,
two connection wires
4.Right door (normal type) 5x0.75mm, two connection wires, (intelligent type) 2x0.75mm,
two connection wires
5.Wires have to use soft and many strands of copper wires (white RVV wire)
