Quick Details
-
Brand Name:
-
Huatian
-
Model Number:
-
HTHL-100A
-
Product name:
-

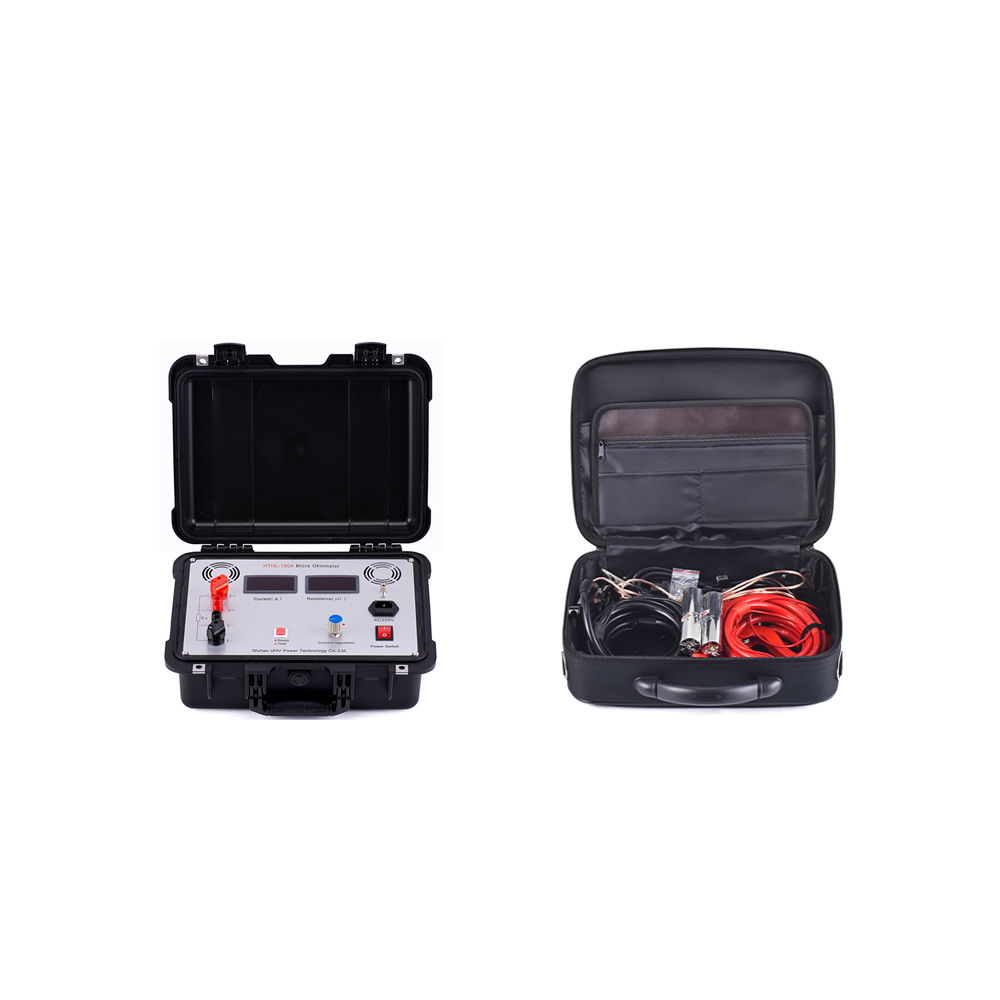

Contact resistance tester
-
Input voltage:
-
AC220V±10%
-
Measured current:
-
DC 100A
-
Measured range:
-
0~1999μΩ
-
Display:
-
Three and a half LCD
-
Accuracy:
-
0.5%±1d
-
Resolution:
-
1μΩ
-
Volume:
-
300*270*200 mm3
-
Weight:
-
5Kg(not including accessory)
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Huatian
-
Model Number:
-
HTHL-100A
-
Product name:
-
Contact resistance tester
-
Input voltage:
-
AC220V±10%
-
Measured current:
-
DC 100A
-
Measured range:
-
0~1999μΩ
-
Display:
-
Three and a half LCD
-
Accuracy:
-
0.5%±1d
-
Resolution:
-
1μΩ
-
Volume:
-
300*270*200 mm3
-
Weight:
-
5Kg(not including accessory)
Product Paramenters
|
Measuring range
|
1～1999μΩ
|
|
Resolution
|
1μΩ
|
|
Test current
|
DC 0-100AContinuous adjustable
|
|
Accuracy
|
0.5%±1d
|
|
Display
|
Current: three and a half LCD
|
|
|
Resistance: three and a half LCD
|
|
Power supply
|
AC220V±10% 50Hz
|
|
Working environment
|
Temperature -10℃ ~ 40℃, humidity: ≤80%RH
|
|
Diemension
|
300×270×200 mm3
|
|
Weight
|
5kg(excluding attachments)
|
Function&Characteristics
1.Large current
: Micro Ohmmeter adopts The new technology of The power supply, which can continuously output large current for a long time. It overcomes The defect of impulse instantaneous current of The power supply, and can effectively break through The oxidation film of switch contact and get good test results
2.Strong anti-interference ability
: under the condition of serious interference, the last bit data of LCD can be stable at ±1 word The scope of, stable reading, good repeatability
3.Micro Ohmmeter has a long service life
: all Micro Ohmmeter adopts high precision resistance, which effectively eliminates The influence of The environment temperature on The measurement results. Meanwhile, The use of military connectors enhances The anti-vibration performance
4.Easy to carry:
small volume、The weight of The weight of The weight
