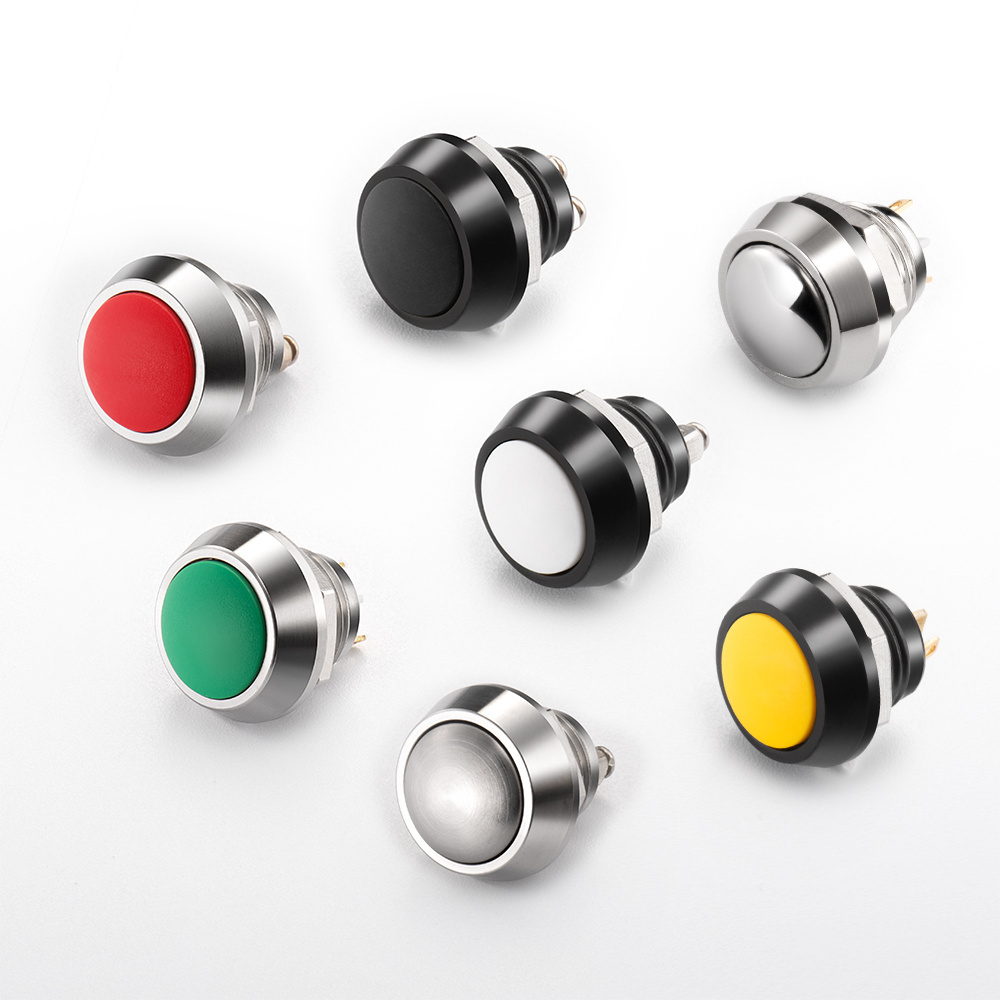

High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch
High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch
High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch
High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch
High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch
High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch
High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch
High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch

High Quality 12mm Anti Vandal Switch Metal Momentary Normal Open waterproof Push Button Switch

FOB Reference Price: Get Latest Price
≥100 Pieces
US $1.2
≥500 Pieces
US $1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Langir
Model Number:
V12
IP level:
IP65
Product name:
12mm Push Button Switch
Operation type:
Momentory
Color:
Red Yellow Green Blue White Black
Material:
Aluminum/Stainless steel/Nickel plated brass
Max. Switch Rating:
2A/ 48VDC
Protection:
IK09/ IP65
Function:
SPST
Mounting Hole Size:
Dia 12mm
Application:
Industrial Control
Head shape:
Ball

Quick Details

Protection Level:
IP65
Max. Current:
2A
Max. Voltage:
48VDC
Place of Origin:
Zhejiang, China
Brand Name:
Langir
Model Number:
V12
IP level:
IP65
Product name:
12mm Push Button Switch
Operation type:
Momentory
Color:
Red Yellow Green Blue White Black
Material:
Aluminum/Stainless steel/Nickel plated brass
Max. Switch Rating:
2A/ 48VDC
Protection:
IK09/ IP65
Function:
SPST
Mounting Hole Size:
Dia 12mm
Application:
Industrial Control
Head shape:
Ball


Product Information

Name : 12mm Push Button Switch

Function : Momentary NO

Color : R / Y / G /W/ B / BK

Material : Stainless steel/Nickel plated brass/Zin-Al Alloy

Warranty : 2 year

Type
V12-B-S
V12-B-N
V12-B-A
Actuator Options
Round


Function
Momentary NO


Number of Switch
Single Control Switch


Max. Panel Thickness
0.236″ (6.0mm)


Terminal
Screw / Solder lug (2.8 x 0.5)
Max. Switch Rating
2A/ 48VDC
Contact Resistance
50mΩ
Insulation Resistance
1000mΩ
Dielectric Strengh
2000VAC
Operation Temp.
-20°C ~ +55°C
Mechanical Life
>1,000,000cycles
Electrical Life
>200,000cycles
Torque
5 ~ 14Nm
Operation Pressure
~5.5N
Operating Stroke
~2.5mm
Protection
IP65
Contact
Silver Alloy
Actuator
Stainless Steel/ Brass/ PBT
Body
Stainless steel
Nickel plated brass
Zin-Al Alloy
Base
PBT

Momentary switch

Momentary switches only remain in their on stateas long as they're being pressed.
Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks.

IP65 Waterproof

As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc. Note that this switch can be used under water.

Wide Use Range

It can use as a door bell, entrance guard push button switch in the outdoors.
Also a good choice to use it as a replacement switch of household Appliances. Such as table lamp switch, PC switch, Audio switch.
Q1. What is your terms of packing? A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Q2. Do you have a catalogue? Can you send me the catalogue to have a check of all your products? A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue. Q3. How about your delivery time? A: Generally, it will take 2 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you provide samples ? Are the samples free ? A: Yes,we can provide samples.But you have to pay for the shipping cos. If you need many items, or need more qty for each item,we will charge for the samples. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test one by one before delivery Q6. What kind of payment do you accept ? A: We accept T/T(Wire transfer),Western Union and Paypal. Q7. How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
