* Dimensions :
48”
x
48”
x 1.5" (1200 x 1200 x 40mm) ,
96” x48” x 1.5" (2400 x 1200 x 40mm)
* Core Material : Formed, semi-rigid inorganic glass fibers
* Facing : Acoustically transparent polyester or paintable glass wool tissue micromesh sealed with latex paint
* Edge Treatment : Sealed and hardened with resin
*
Kit with height adjuster and 2m steel cable and special spring fixing
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Degofon
-
Model Number:
-
tile600
-
Material:
-
fiberglass wool
-
Size:
-
1200*600mm 200*2400mm
-
Tickness:
-
40mm
-
Shapes:
-
Rectangle. Strip. Wave.
-
Fireproof:
-
A2 -s1d0
-
Sound absorption:
-
NRC0.95
-
Install:
-
Spring wires
-
Edge:
-
Square
-
Clour:
-
White RAL
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Degofon
-
Model Number:
-
tile600
-
Material:
-
fiberglass wool
-
Size:
-
1200*600mm 200*2400mm
-
Tickness:
-
40mm
-
Shapes:
-
Rectangle. Strip. Wave.
-
Fireproof:
-
A2 -s1d0
-
Sound absorption:
-
NRC0.95
-
Install:
-
Spring wires
-
Edge:
-
Square
-
Clour:
-
White RAL
ACOUSTIC CLOUD CEILING PANELS
|
MATERIAL
|
Fiberglass wool panels with acoustically transparent membrane
|
|
|
|
||||
|
SURFACE FINISHE
D
|
DEGOACOUSTIC factory applied acrylic latex paint,
|
|
|
|
||||
|
COLOR
|
White .black ，Custom
|
|
|
|
||||
|
SOUND ABSORPTION
|
NRC：0.85-0.9
|
|
|
|
||||
|
SIZE(s）
|
600mm×1200mm×40mm 1200mm×1200mm×30mm),
|
|
|
|
||||
|
|
2400mm×1200mm×40mm 300mm×1800mm×40mm)
|
|
|
|
||||
|
|
150mm×1200mm×40mm 150mm×2400mm×40mm)
|
|
|
|
||||
|
|
100mm×1200mm×40mm 120mm×2400mm×40mm)
|
|
|
|
||||
|
EDGE
|
·Square
|
|
|
|
||||
|
WEIGHT
|
4.55kgs/m 40mm Thick
|
|
|
|
||||
|
LIGHT REFLECTANCE
|
LR 0.85
|
|
|
|
||||
|
MOISTURERESISTANCE
|
RH99
|
|
|
|
||||
|
FIRE CLASS
|
(ASTM E1264) Class A2per CE，lame Spread: 25 or less Smoke Developed: 50 or less
|
|
|
|
||||
|
MILDEW RESISTANC
|
Fiberglass substrate is inherently resistantto the growth of mold and mildew.
|
|
|
|
||||
|
RECOVERABLE
|
71%
|
|
|
|
||||
|
WARRANTY 15Y
|
15Year ，
|
Useful life 50Y
|
|
|
||||
Product Description

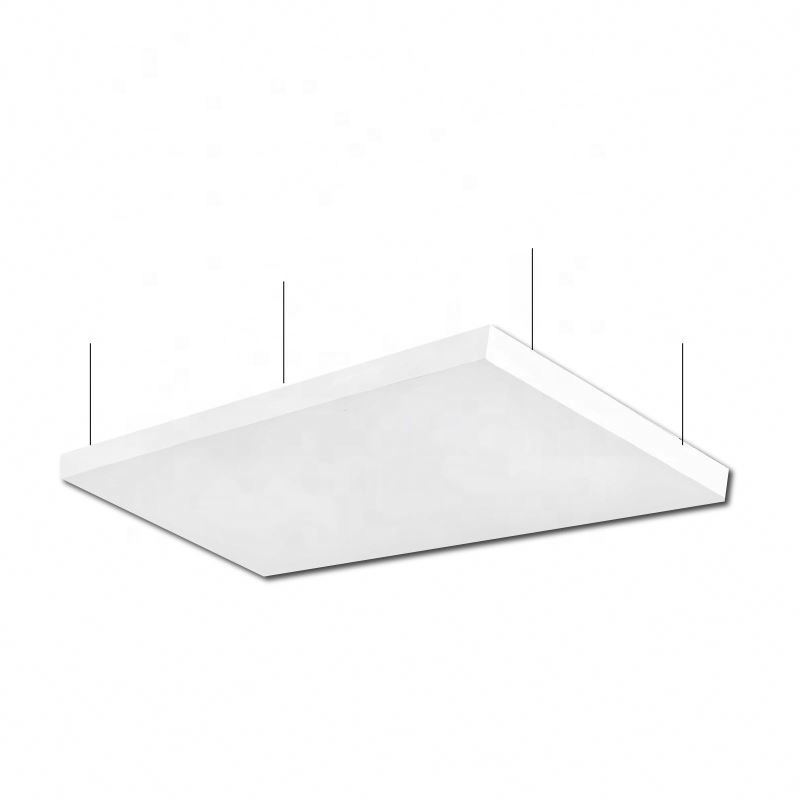

Degofon - Acoustic Ceiling Cloud
The
Degofon - Acoustic cloud ceiling panels
is a high-performance ceiling cloud designed to hang from the ceiling and capture ambient energy by absorbing sound as it hits the face of the panel, all while trapping powerful reflections from the ceiling on the back side of the panel.
The
Degofon - Acoustic cloud ceiling panels
is made from 1.5″ (40mm) thick high-density 6lb per cubic foot (96 kg/m³) glass wool that is completely encapsulated with micromesh and resin hardened edges. The acoustic panel is then covered in either acoustically transparent fabric or coated in DEGOACOUSTICs proprietary textured white paintable finish. Installation is easy using the included screw-in Helix cloud anchors, SlipNot suspension cables and ceiling hooks. As with all Degfofon panels has been fire tested, achieving the most stringent fire safety ratings in Europe CE mark.
Each hanging kit ships with two panels, eight Helix cloud anchors and SlipNot suspension cables, as well as T-anchors and eye hooks for ceiling mounting. Available in black, grey or beige acoustic fabric; or in a paintable textured white finish. The DEGOFON s cloud gracefully suspends from the ceiling of any room to provide effective reverberant control for improved intelligibility.
The
Degofon - Acoustic cloud ceiling panels
is an easy to install acoustic cloud designed to be suspended over an area where a reduction in sound level is desired.
Several
Degofon
clouds may be installed in an array to remove excessive echo and reverberation in large spaces.
The Ceiling panels consists of high denstity glass wool panel that tests show is highly effective at absorbing sound from 100Hz and up.
DEGOFON ACOUSTIC BAFFLE BEAM CEILING
Rectangular
Baffles
·
a vertically suspended lightweight acoustical panel
·H
igh-density fiberglass wool core
-Excellent acoustic comfort.
-Particularly suitable for areas where suspended ceilings cannot be applied
-Factory preformed modular products for easy
installation.
installation.
-Various sizes and colors can be used to create beautiful designs-Modern linear appearance -Great acoustic performances
-CIntegrated spiral anchors
-factory fitted for easy，
-alignment and
installation -install individually or in groups -High light reflectance -for energy savings
installation -install individually or in groups -High light reflectance -for energy savings
Product description
LInea Baffles
Benefits:
Beautiful frameless innovative sound-absorbingindependentceiling.
·Elegant white surface or RAL color custom.
Give full play to the design freedom.
·Vertical installation, especially suitable for areas where suspended ceilings cannot be applied.
·High sound absorption performance,
izes: 150×1200 200×2400,120×2400mm
hick: 30mm 40mm 50mm
The size of standard sound-absorbing pendant is 1200-2400 × 600 × 40mm and 1200-2400 × 150 × 40mm.Modern None The panels is designed to provide a pleasing aesthetic alternative to the ceiling system.Ensures good light reflection and is used in noisy environments with high sound absorption by DEGO Baffle The baffle ceiling provides excellent acoustic performance and can be installed directly on top of the exposed concrete to Realize energy-saving natural cross ventilation cold an airflow.Can also be used for ordinary mineral wool board, gypsum board top.
Detailed detail
DEGO FACTORY
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies
Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Acoustic ceiling TIles
Glass wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A2
Moisture resistance RH99
Sound absorption NRC0.85
Stone Wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A1
Moisture resistance RH99
Sound absorption NRC0.85
