Quick Details
-
Model Number:
-
KCD2-22
-
Max. Current:
-
16A
-
Mechanical Life:
-
50000 Cycles
-
Name:
-

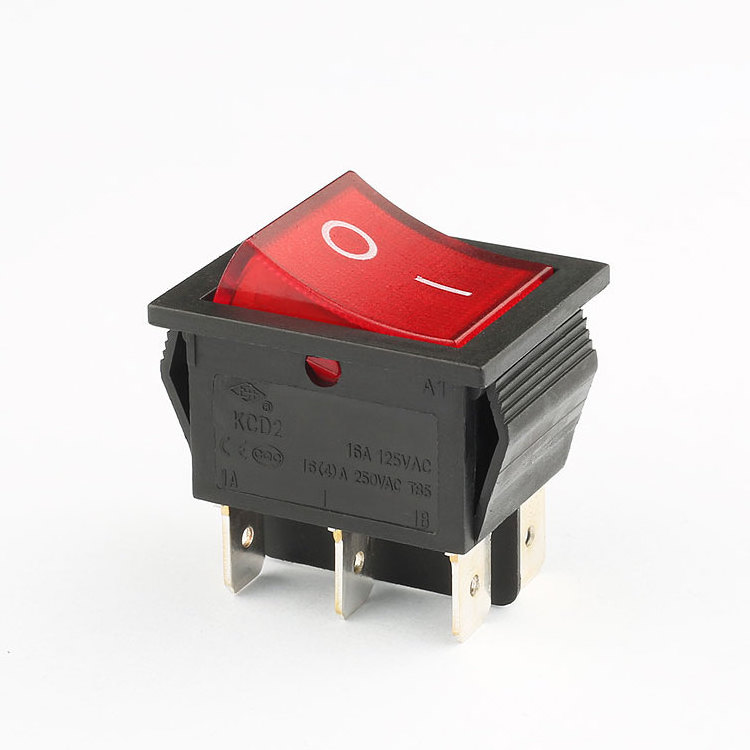

15a 125vac t86 breaker winch 6 pins inline rocker switch
-
Cap colors:
-
white
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥1,000MΩ
-
Dielectric Resistance:
-
1,500V AC , 1 min
-
Pole:
-
DP-DT
-
diagram:
-
on-off,on-on
-
Max. Rating Current & Voltage:
-
16(4)A 250V AC T85
-
Electronic life:
-
10,000 cycles
-
Certification:
-
UL,CQC, RoHS,CE, CQC
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ShangKai
-
Model Number:
-
KCD2-22
-
Max. Current:
-
16A
-
Mechanical Life:
-
50000 Cycles
-
Name:
-
15a 125vac t86 breaker winch 6 pins inline rocker switch
-
Cap colors:
-
white
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥1,000MΩ
-
Dielectric Resistance:
-
1,500V AC , 1 min
-
Pole:
-
DP-DT
-
diagram:
-
on-off,on-on
-
Max. Rating Current & Voltage:
-
16(4)A 250V AC T85
-
Electronic life:
-
10,000 cycles
-
Certification:
-
UL,CQC, RoHS,CE, CQC
15a 125vac t86 smrs-101-1 3 irs-2-r15st breaker winch 6 pin inline rocker switch
15a 125vac t86 smrs-101-1 3 irs-2-r15st breaker winch 6 pins inline rocker switch
Product Description
If you have enough quantity to purchase, we can develop switches that meet your needs. The company has independent plant, injection workshop and advanced experimental equipment. With 60 senior engineers and perfect development process, all workshops are up to 5S and 5M management standards. Click here to contact us
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4) A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4) A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
