Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Material:
-
PTFE/Nylon/MCE/PVDF, PTFE/Nylon/MCE/PVDF
-
Capacity:
-
150 ul
-
Product Name:
-
micro syringe filters
-
Color:
-
Green/ Blue/Red/Yellow/ White
-
Filtration Area:
-
6.15 cm2
-
Holdup Volume (ul):
-
150 ul
-
Wettability:
-
Hydrophilic
-
Inlet/Outlet:
-
Female luer Lock/ Male Luer Slip
-
Maximum Operation Temperature(℃):
-
100
-
Bursting Pressure:
-
10 bar
-
Certification:
-
CE ISO
Quick Details
-
Warranty:
-
5 years
-
Brand Name:
-
NEWAY/OEM
-
Model Number:
-
TY-SF1
-
Place of Origin:
-
Jiangsu, China
-
Material:
-
PTFE/Nylon/MCE/PVDF, PTFE/Nylon/MCE/PVDF
-
Capacity:
-
150 ul
-
Product Name:
-
micro syringe filters
-
Color:
-
Green/ Blue/Red/Yellow/ White
-
Filtration Area:
-
6.15 cm2
-
Holdup Volume (ul):
-
150 ul
-
Wettability:
-
Hydrophilic
-
Inlet/Outlet:
-
Female luer Lock/ Male Luer Slip
-
Maximum Operation Temperature(℃):
-
100
-
Bursting Pressure:
-
10 bar
-
Certification:
-
CE ISO
Product Description

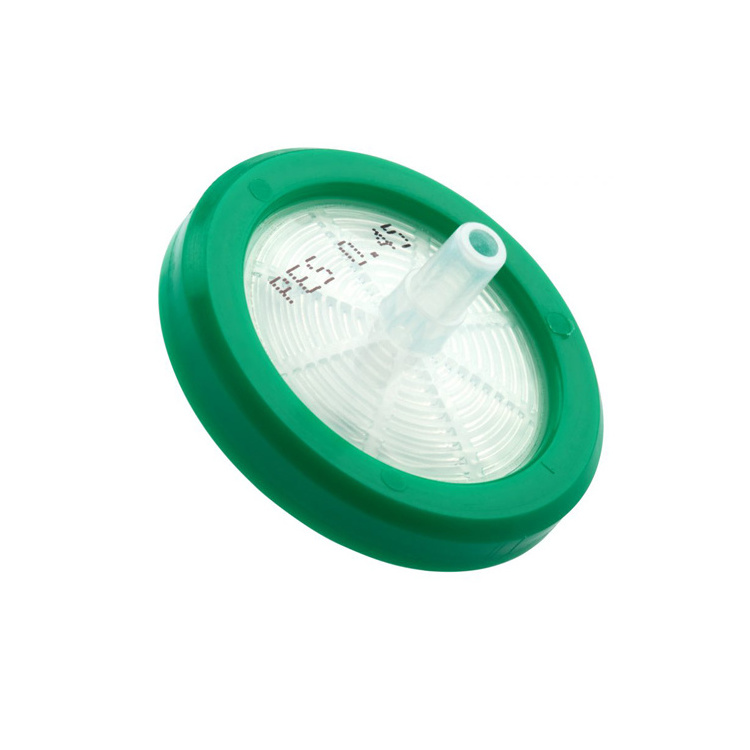

Syringe filters
are a cost-effective way to improve the quality of HPLC analysis, improve consistency, extend column life and reduce maintenance. By removing particulates before the sample enters the column, syringe filters allow unimpeded flow. Without particulates to create obstructions, your column will work more efficiently and last longer.
|
Size
|
Filtration Area
|
Holdup Volume
|
Wettability
|
Volume Throughput (ml)
|
IPA Bubble Point
|
Bursting Pressure
|
|
33mm 0.22um
|
6.15 cm2
|
150ul
|
Hydrophilic/Hydrophobic
|
200
|
≥1.2bar
|
10 bar
|
|
33mm 0.45um
|
|
|
|
|
≥0.8bar
|
|
|
25mm 0.22um
|
3.8 cm2
|
125ul
|
|
100
|
≥1.2bar
|
|
|
25mm 0.45um
|
|
|
|
|
≥0.8bar
|
|
|
13mm 0.22um
|
0.8 cm2
|
15ul
|
|
10
|
≥1.2bar
|
15 bar
|
|
13mm 0.45um
|
|
|
|
|
≥0.8bar
|
|
Details Images
|
Syringe Filter Specification
|
|
|
|
Filtration Area
|
6.15 cm2/3.8 cm2/0.8 cm2
|
|
|
Holdup Volume (ul)
|
150ul/125 ul/15ul
|
|
|
Wettability
|
Hydrophilic/Hydrophobic
|
|
|
Inlet/Outlet
|
Female luer Lock/ Male Luer Slip
|
|
|
Maximum Operation Temperature(℃)
|
|
|
|
Bursting Pressure
|
10 bar/15bar
|
|
