- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hauvrex
-
Model Number:
-
HC8610T
-
Warranty:
-
18 Months
-
Color:
-
Customer Request
-
Logo:
-
Customer Request
-
Voltage:
-
220v / 380v
-
Rim Diameter:
-
10"~26"
-
Max. Wheel Weight:
-
150kg
-
Max. Wheel Diameter:
-
1200mm
-
Wheel Width:
-
1.5"~20"
-
Delivery time:
-
25-30days
-
Package:
-
Wooden Box
Quick Details
-
Motor Power:
-
0.75kW/1.1kW
-
Operating Pressure:
-
8~10 Bar
-
Power Supply:
-
380V/220V, 2.2KW
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hauvrex
-
Model Number:
-
HC8610T
-
Warranty:
-
18 Months
-
Color:
-
Customer Request
-
Logo:
-
Customer Request
-
Voltage:
-
220v / 380v
-
Rim Diameter:
-
10"~26"
-
Max. Wheel Weight:
-
150kg
-
Max. Wheel Diameter:
-
1200mm
-
Wheel Width:
-
1.5"~20"
-
Delivery time:
-
25-30days
-
Package:
-
Wooden Box
Product Description
|

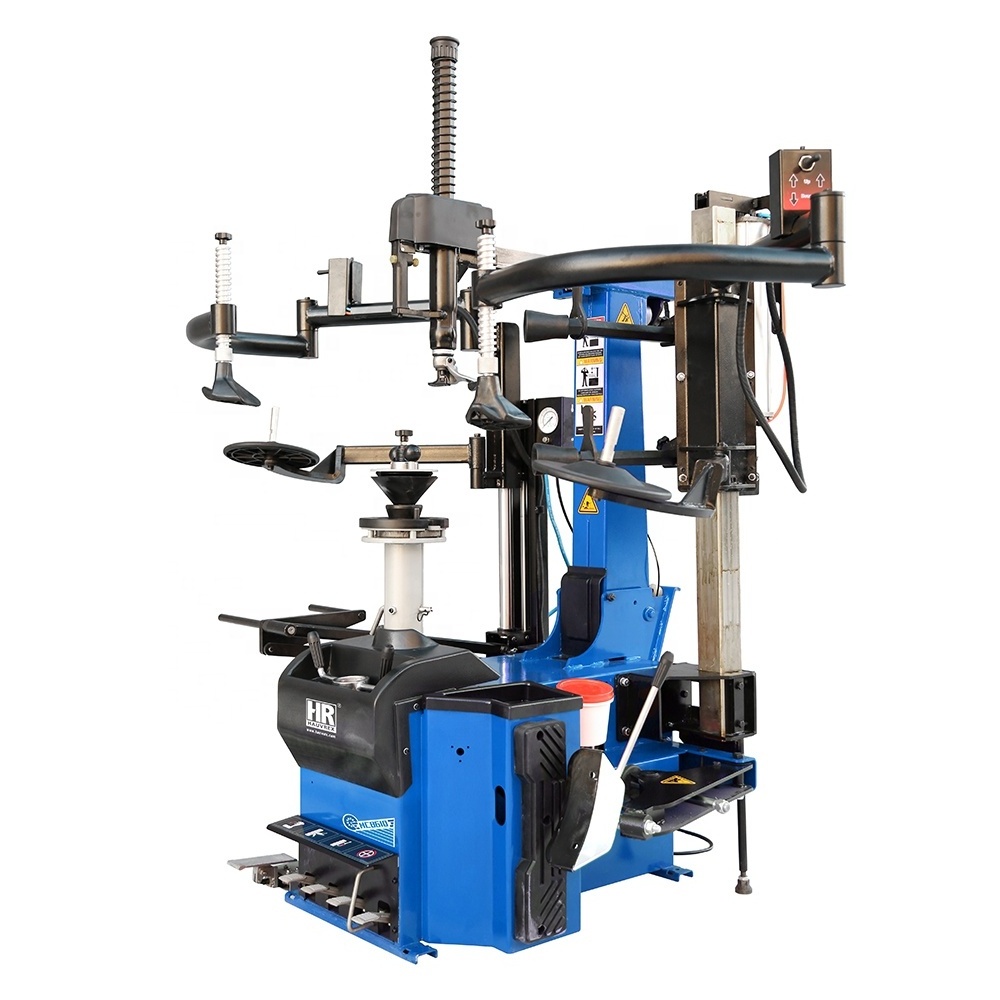

Automatic Tilt Column Tyre Changer
without Turntable
, with
Tire Lifter
and Dual Helper Arms
|
|
|
|
Tyre Changer model
|
HC8610
|
|
|
Outer Clamping Range
|
12"~28"
|
|
|
Inner Clamping Range
|
10"~24"
|
|
|
Max. Wheel Diameter
|
1150mm
|
|
|
Max. Wheel Width
|
3"~15"
|
|
|
Beadbreaking Force
|
2700kg
|
|
|
Operating Pressure
|
8~10 bar
|
|
|
Power Supply
|
220V/50Hz/1Ph, 1.5kW
380V/50Hz/3Ph, 1.0kW
|
|
Technical Features
HC8610 | Automatic Tire Changer
♦ Quick fit center wheel clamping eliminates rim edge damage and provides positive center hole clamping using a cone and quick nut with pneumatic locking .
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ Tool head with interchangeable plastic inserts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button.
♦ Integrated wheel lift reduces fatigue and the chance for injury presented by handling heavy tires and rims.
PX30 left helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
DP70 right helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
» Dual bead roller system.
♦ Quick fit center wheel clamping eliminates rim edge damage and provides positive center hole clamping using a cone and quick nut with pneumatic locking .
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ Tool head with interchangeable plastic inserts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button.
♦ Integrated wheel lift reduces fatigue and the chance for injury presented by handling heavy tires and rims.
PX30 left helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
DP70 right helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
» Dual bead roller system.
