compressor for LPG propane station

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1980

≥5 Pieces

US $1950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 1400X1200X1000

Weight:: 560kgs

Marketing Type:: New Product 2024

Gas Type:: lpg

After Warranty Service:: Spare parts

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: COWELL

Model Number:: ZW

Voltage:: 380V

Dimension(L*W*H):: 1400X1200X1000

Weight:: 560kgs

Marketing Type:: New Product 2024

Gas Type:: lpg

After Warranty Service:: Spare parts

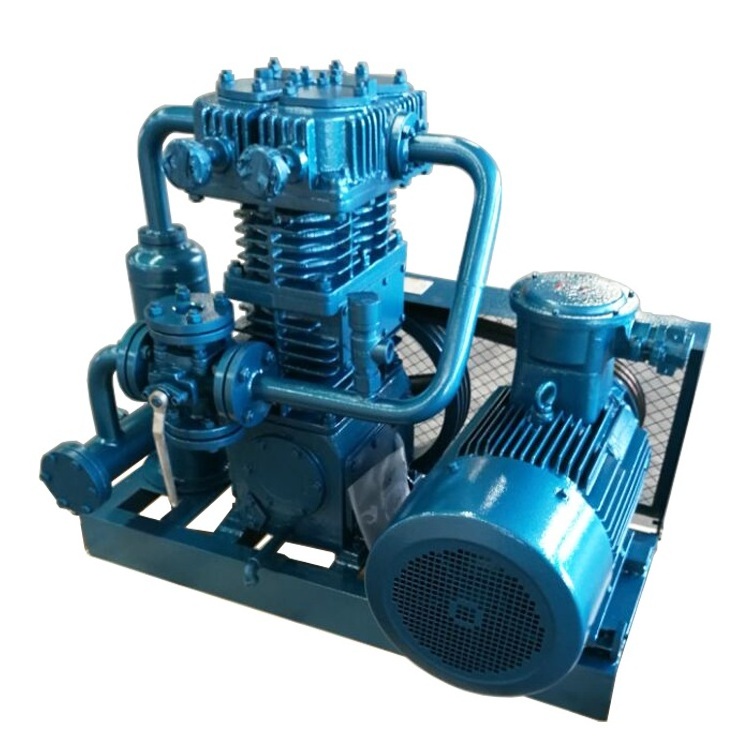

LPG Compressor /air compressor/ lpg air compressor

Description:

ZW series of liquefied petroleum gas recycle compressor is v ertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit . This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication.

Excellent complement, satisfied performance, light weight, small occupying area, more compressing ratio , smooth running, long service life of spare parts, simple operation, reliability and easy maintenance. ZW series compressors have bot h fixed or movable types ; b oth normal atmosphere (0.1~1.5MPa) and high pressure (1.6~2.4MPa) to meet different requirements of customers.

Applications:
It is suitable for working in large, middle and small LPG storages, conveying and distribution stations, bottle filling stations, gasification stations, gas mixing stations and tank vehicle loading and has the functions of vehicle loading, unloading, bottle filling, bottle emptying, conveying, residue removal and residual gas recycling and it can be also used in the processes of other petrol-industries.

LPG MOBILE COMPRESSOR

		ZW-0.2/ 10-16	ZW-0.4/ 10-16	ZW-0.5/ 10-16	ZW-0.6/ 10-16	ZW-0.8/ 10-16	ZW-1.0/ 10-16	ZW-1.3/ 10-16	ZW-1.6/ 10-16	ZW-20/ 10-16
		ZW-0.2/ 10-16	ZW-0.4/ 10-16	ZW-0.5/ 10-16	ZW-0.6/ 10-16	ZW-0.8/ 10-16	ZW-1.0/ 10-16	ZW-1.3/ 10-16	ZW-1.6/ 10-16	ZW-20/ 10-16
M3/Min nominal volume of flow		0.2	0.4	0.5	0.6	0.8	1.0	1.3	1.6	2.0
MPa rated delivery pressure		1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
MPa rated intake pressure		1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Intake temperature		≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40
delivery temperature		≤110	≤110	≤110	≤110	≤110	≤110	≤110	≤110	≤110
Speed r/min		500	750	980	775	550	750	850	1000	750
Lubrication mode	crankshaft connecting rod crosshead	splashing lubficatde
Lubrication mode	cylinder temperature	without lubricating
lubricant temperature		70	70	70	70	70	70	70	70	70
electrical motor type		YB12M-4(4kw)	YB132S-4(5.5kw)	YB132M-4(7.5kw)	YB132M-4(7.5kw)	YB160M-4(11kw)	YB160M-4(15kw)	YB80M-4(18.5kw)	YB180L-4(22kw)	YB200L-4(30kw)
kg weight		390	410	430	430	550	580	630	660	910
L×W×H overall dimensions		1000×865×710			1100×980×750				1400×1180×830
flange srardad		DN25,PN25JB/T81-94			DN40,PN25JB/T81-94				DN50,PN25JB/T81-94
