N230 Automatic carbonated drink can filler and seamer machine production line
N230 Automatic carbonated drink can filler and seamer machine production line
N230 Automatic carbonated drink can filler and seamer machine production line
N230 Automatic carbonated drink can filler and seamer machine production line
N230 Automatic carbonated drink can filler and seamer machine production line
N230 Automatic carbonated drink can filler and seamer machine production line
N230 Automatic carbonated drink can filler and seamer machine production line
N230 Automatic carbonated drink can filler and seamer machine production line

N230 Automatic carbonated drink can filler and seamer machine production line

FOB Reference Price: Get Latest Price
≥1 Sets
US $22500
≥2 Sets
US $21500
≥5 Sets
US $20000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
99.8%
Voltage:
220v/380 V
Place of Origin:
Jiangsu, China
Brand Name:
OK Machinery
Dimension(L*W*H):
1750*1250*1900MM
Weight:
1800 KG
Name:
can Filling Machine
Capacity:
1000-36000CPH
Filling volume:
200ml-2000ml
Product name:
can filling machine
Function:
Can Filling Capping
Processing Types:
Automatic can Filling Sealing Machine
Usage:
Filling Capping Labeling Packaging
Bottle type:
Plastic aluminum can
Material:
SUS304/316
After-sales Service Provided:
Video Technical Support

Quick Details

Machinery Capacity:
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
Packaging Material:
Plastic, Wood
Filling Material:
Beer, Other, Juice
Filling Accuracy:
99.8%
Voltage:
220v/380 V
Place of Origin:
Jiangsu, China
Brand Name:
OK Machinery
Dimension(L*W*H):
1750*1250*1900MM
Weight:
1800 KG
Name:
can Filling Machine
Capacity:
1000-36000CPH
Filling volume:
200ml-2000ml
Product name:
can filling machine
Function:
Can Filling Capping
Processing Types:
Automatic can Filling Sealing Machine
Usage:
Filling Capping Labeling Packaging
Bottle type:
Plastic aluminum can
Material:
SUS304/316
After-sales Service Provided:
Video Technical Support
Product Description

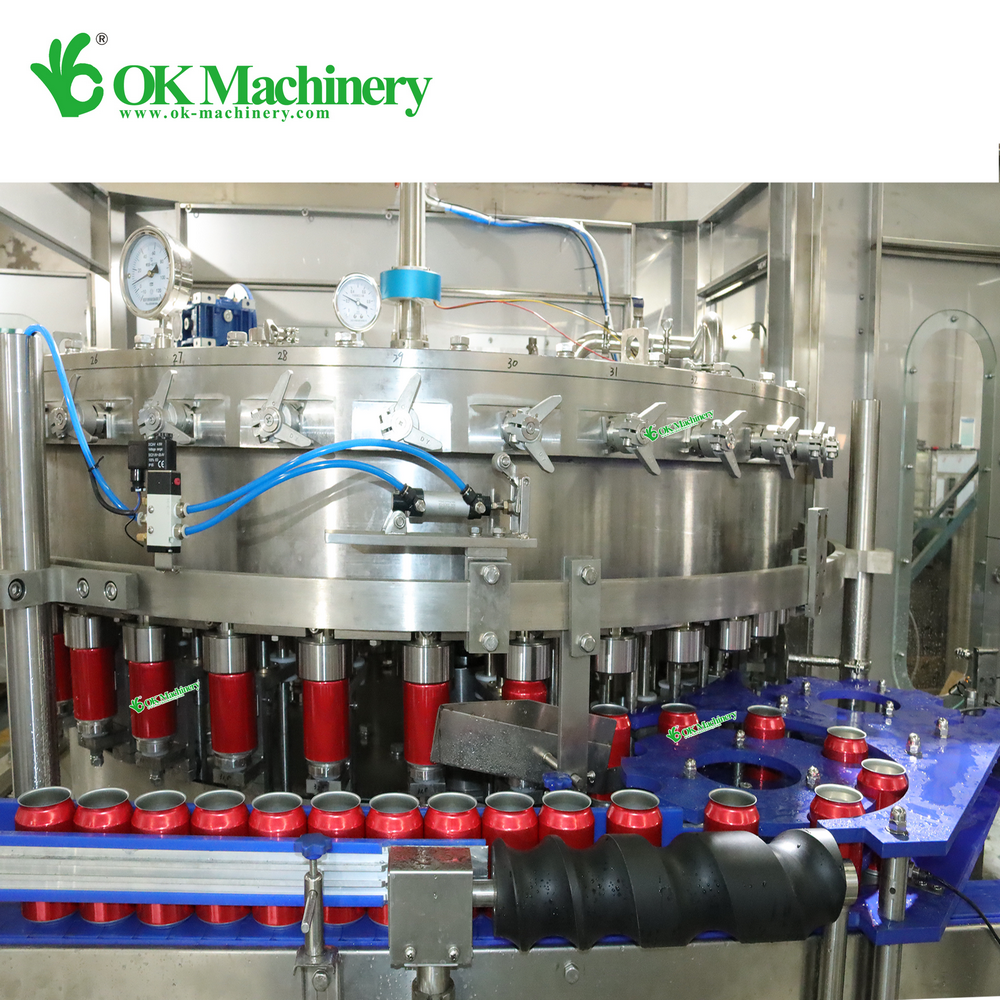

This can filling machine is used for filling carbonated beverage in cans, such as beer, cola, energy drinks and soda water. This can be used for different material of cans, such as plastic, iron, aluminum and so on, and the different size of cans is allowed. We can design the equipment according to your requirements, filling and sealing is the overall designed power system by filling sealing system to ensure that both the absolute synchronization and coordination.
A to Z complete line Can Filling Profuction Line :
(1) 2T/H -30T/H water treatment syatem ;
(2) Carbonated drink mixing and blending machhine ;
(3) 1000CPH -36000CPH can filling machine based on 200-1000ML can ;
(4) Labeling machine (PVC shrinking labeling machine ,OPP labeling machine ,sticker labeling machine );
(5) Laser printer (CO2 laser date printing machine);
(6) Packaging machine (film wrapping machine ,canton packing machine .....)
(7) Automatic palletizer and winding machine .
Model
GF18-6
GF32-6
GF36-6
GF40-8
Capacity
4000-6000CPH
10000-12000 CPH
12000-15000 CPH
15000-20000 CPH
Can Volume
200ml-1000ml
200ml-1000ml
200ml-1000ml
200ml-1000ml
Can diameater
50-70mm
50-70mm
50-70mm
50-70mm
Bottle high
120-170mm
120-170mm
120-170mm
120-170mm
Machine power
3.5KW
5.5KW
7.5KW
9.5KW
Machine size
175x120x195CM
305x175x220CM
340X195X220CM
350x235x225CM
Specification
Washing Part
Function : washing cans inside and outside dust .
<1>All 304/316stainless steel rinse heads, water spray style inject design, more
save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing
<3> 304/316 stainless steel washing pump
Filling Part
Fucntion : filling beverage into cans .
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in
fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping part
Function : put caps on cans .
<1> Place and can sealing system, electromagnetic capping heads, with burden discharge function,make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction <3> No cans no capping
<4> Automatic stop when lack of cans
3 in 1 procution line video . This video will show you washing can inside and outside , filling liquid into can put cap on bottle and capping it，after all will inlet with flat conveyor belt . automatic can filling machine for sale.
Related machine
Can depalletizer
It can replace the manual can arrangement,increase production efficiency ,it is an indispensable ideal device for middle and large sized beverage plants ,PLC Programmable computer automatic controller ,photo-electricity switch,over travel-limit switch and pneumatic control ,etc ,use the famous brand from Germany and Japan and Taiwan
Water Treatment System
Stainless steel high pressure film shellAll kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system Online type pressure auto self-protection device Online type electricity indicator System safe protecting and alarm system System frame from 2T/H to 25T/H.

Sterilization tunnel

Pasteurization machine using high-quality SUS304 stainless steel,temperature, speed can be set according to process
requirements,the machine running moothly, stainless steel mesh belt with high strength, small scalability, easy deformation.

Film wrapping machine

In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.

Sleeve shrinking labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels.

cans Flat Conveyor

- Energy saving. High efficient. Adapt to customer factory layout - Special lubrication system, keep products clean, health, safety - Extended service life
- Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine
OK Machine Advantages
Advange :
(1) Provide services for empty can , label designs, and layout drawings
(2) Professional production of various filling machines for water can juice ,beer ,soda water ,oil,tea ............
(3) Our electric part use international famous brands,Mitsubishi,Siemens,Schneider........
(4) 24-hour online after-sales service .English communication helps solve problems .
(5) Serve customers over 50 countries and regions worldwide.
Our Advantages
Shanghai OK Machinery Co., LTD was found in 1997, String with filling machine , it's located at Leyu Town,Zhangjiagang City, SuZhou city , JiangSu Province . OK Machinery leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.So far we have provided more than 1000 water filling lines for more than 90 countries in the world. We will always keep researching and innovating in the fastest-growing market and make sure us and our customer to be the leader of our industry.
Product Packaging
FAQ
HOW TO FIND OK MACHINE?
● Search Alibaba, Made in China, Google, Youtube and find suppliers and manufactrue and not traders
● Visit exhibition in different countries
● Send OK Machine an request and tell your basic inquiry
● OK Machine sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to OK Machine site
● The meaning of visiting supplier, because seeing is believing, OK Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE OK MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF OK MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
