Quick Details
-
Packaging Type:
-
Antistatic Bag,Carton Box
-
Application:
-
Appliance/Pipe inspection/Mechanical/Security
-
Type:
-
UVC camera
-
Series:
-
mCam
-
Features:
-
Six LEDs
-
Mounting Type:
-
CMOS Imaging
-
Description:
-
OV9734 cmos camera module
-
Image Sensor:
-
OV9734
-
Array Size:
-
1280x720
-
Optical Format:
-
1/9"
-
Tip Dimension:
-
3.9mm OD x 28mm
-
Current:
-
110mA
-
FOV:
-
68° Diagonal
-
Lens Type:
-
3P+IR
-
Output format:
-
MJPEG/YUV2
-
Audio:
-
No
-
Focus:
-
30mm-60mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COMedia
-
Model Number:
-
uCam703
-
Packaging Type:
-
Antistatic Bag,Carton Box
-
Application:
-
Appliance/Pipe inspection/Mechanical/Security
-
Type:
-
UVC camera
-
Series:
-
mCam
-
Features:
-
Six LEDs
-
Mounting Type:
-
CMOS Imaging
-
Description:
-
OV9734 cmos camera module
-
Image Sensor:
-
OV9734
-
Array Size:
-
1280x720
-
Optical Format:
-
1/9"
-
Tip Dimension:
-
3.9mm OD x 28mm
-
Current:
-
110mA
-
FOV:
-
68° Diagonal
-
Lens Type:
-
3P+IR
-
Output format:
-
MJPEG/YUV2
-
Audio:
-
No
-
Focus:
-
30mm-60mm
Product Description

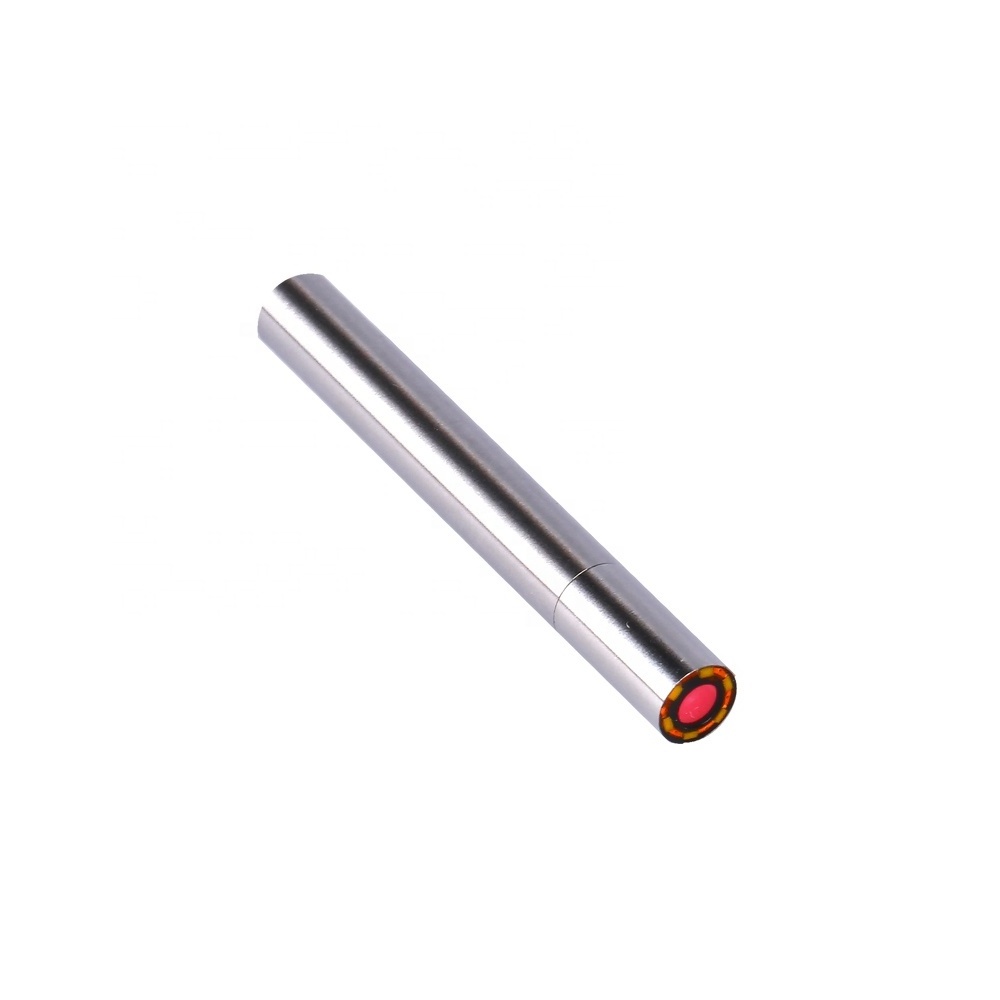

The uCam703 is a miniature camera system that contains a complete sensor and back-end motherboard in a compact size.
It is based on an ultra-compact and power efficient CameraChip™ image sensor ov9734 designed for slim notebooks, tablets, handsets,and other devices that require a thin bezel. Built on OmniVision’s PureCel® technology, the OV9734 CameraChip™ delivers premium quality images and video, while consuming significantly less power than previous generation image sensors. It integrates image
array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
COMedia
|
|
Model Number
|
uCam703
|
|
Packaging Type
|
Antistatic Bag,Carton Box
|
|
Application
|
Medical Endoscope
|
|
Lens
|
3Plastic+IR Glass
|
|
Series
|
mCam
|
|
Interface
|
USB2.0
|
|
Description
|
OV9734 cmos camera module
|
|
Image Sensor
|
OV9734
|
|
Array Size
|
1280x720
|
|
Optical Format
|
1/9"
|
|
Tip Dimension
|
3.9mm OD x 28mm
|
|
Focus
|
30mm-60mm
|
|
FOV
|
68° Diagonal
|
Recommend Products
|
|
Sensor
|
Resolution
|
Led Number
|
Compatible Backend
|
|
muC103T
|
OVM6946
|
400x400
|
0
|
C8262/C8203E103
|
|
muC103P
|
OVM6946
|
400x400
|
0
|
C8203DP/C8209DP
|
|
muC103L1
|
OVM6946
|
400x400
|
1
|
C8203DL/C8209DL
|
|
muC103L2
|
OVM6946
|
400x400
|
2
|
C8203DL/C8209DL
|
|
muC108P
|
OVM6948
|
200x200
|
0
|
C8203DP/C8209DP
|
|
muC110P
|
OCHTA10
|
400x400
|
0
|
C8203DP/C8209DP
|
|
muC112P
|
OCHFA10
|
720x720
|
0
|
C8203HP/C8209HP
|
|
mCam703L2
|
OV9734
|
1280x720
|
2
|
C8203ML/C8209ML
|
|
mCam703U
|
OV9734
|
1280x720
|
2
|
C8207
|
|
mCam101L2
|
-
|
1000x1000
|
2
|
C8203ML/C8209ML
|
|
mCam101L4
|
-
|
1000x1000
|
4
|
C8203ML/C8209ML
|
|
mCamA10L4
|
OCHSA10
|
800x800
|
4
|
C8203ML/C8209ML
|
