Quick Details
-
Knitting Method:
-
three
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, negotiable
-
Knitting width:
-
60 inch
-
Place of Origin:
-
China
-
Power:
-
1KW
-
Weight:
-
1160 KG
-
Dimension(L*W*H):
-
3220*1050*1840mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Color:
-
Blue Computerized Flat Knitting Machine
-
Product Name:
-

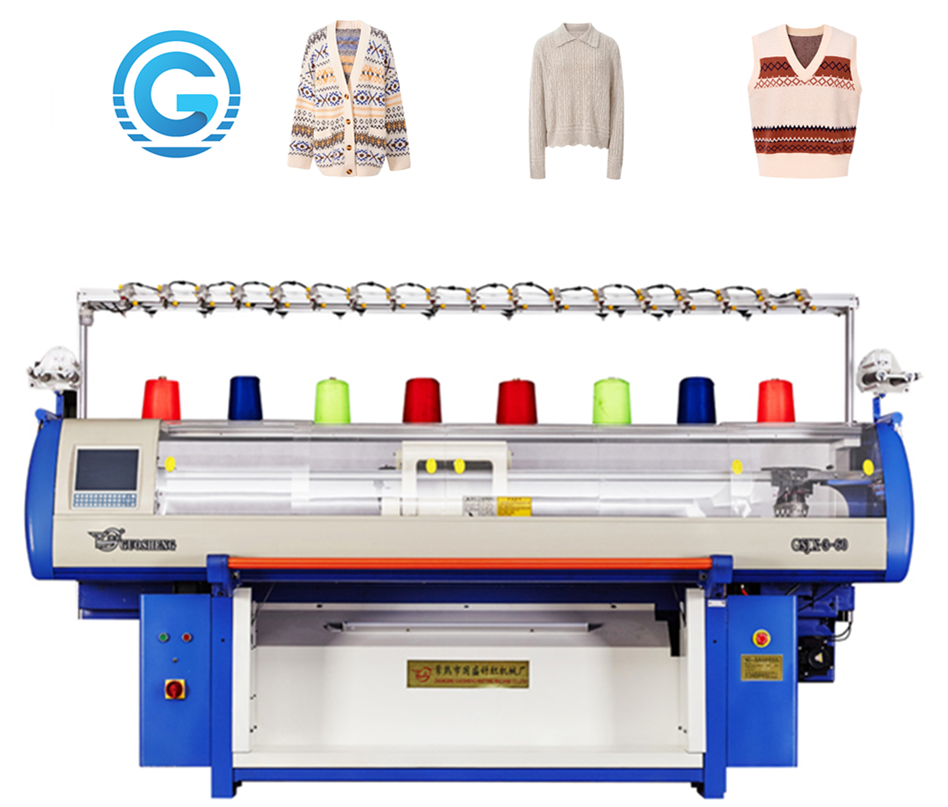

Computerized Flat Knitting Machine
-
Name:
-
Computer Flat Kniting Machine
-
Function:
-
Knititing
-
Certificate:
-
CE ISO
-
System:
-
Three System
Quick Details
-
Type:
-
jacquard
-
Production Capacity:
-
100%
-
Knitting Style:
-
Flat
-
Knitting Method:
-
three
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, negotiable
-
Knitting width:
-
60 inch
-
Place of Origin:
-
China
-
Power:
-
1KW
-
Weight:
-
1160 KG
-
Dimension(L*W*H):
-
3220*1050*1840mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Color:
-
Blue Computerized Flat Knitting Machine
-
Product Name:
-
Computerized Flat Knitting Machine
-
Name:
-
Computer Flat Kniting Machine
-
Function:
-
Knititing
-
Certificate:
-
CE ISO
-
System:
-
Three System
Products Description
|
Model :
|
GSJX-3-60
|
Knitting speed:
|
Max 1.2m/s
|
|
gauge:
|
3GG---16GG
|
Knitting function:
|
Tranfer,tuck,miss,jacquared,intarsia...
|
|
Knitting Syetem:
|
Three system ,single carriage
|
Drive system:
|
Synchronous belt drive ,AC servo system
|
|
Knitting width:
|
44inch,52inch,60inch,80inch,
100inch
|
Power:
|
Have memorizing fauction at the power-off moment, 220V,single-phase
|
Needle bed:
Divided structure ,steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance with needles and increase the longevity.
Touch screen:
One-touch screen,easy operation ,satisfy experience .
The display is capable of showing pictures with colors,displaying number og pieces,finished pieces,knitting time,speed,roller,mesh numbers ,yarn nozzle,etc.,whicj can be adjusted any time during the operation of the machine .
Positive yarn provider :
Positive yarn providing ,successfully reduce yarn resistance ,increase knitting efficiency.
Carriage:
The journey of the carriage can be automatically adjusted as per the width of the knitting fabric.The adjustment can be done swiftly and the positioning is precise,which avoids the useless movement and greatly elevates the productivity of the machine.
Side yarn bracket:
The side yarn bracket adopts high performance springs to exert direct force to the part of yarn-picking .It is also able to pickup the redundant yarn when the carriage stops moving upon change of the direction ,making the yarn tensed under a certain tension...
Prode alarming device.
Probe alarming device is a breakthrough as compared with the current monotonous detecting mode where the probes sway from side to side .
If you want to more about our flat knitting machine ,please
<<
click here
>>
.
