300 meters Water well drilling machine dth cum rotary water well drilling machine readily available for sale

300 meters Water well drilling machine dth cum rotary water well drilling machine readily available for sale

FOB Reference Price: Get Latest Price

≥1 Pieces

US $135000

≥2 Pieces

US $134000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Drilling Speed:: 1000 feets

Place of Origin:: Telangana, India

Brand Name:: PRL

Model Number:: PDTHR-300

Voltage:: 2400

Dimension(L*W*H):: 12L*3W*4.5

Weight (KG):: 26000 KG

Core Components:: water wel drilling

Weight:: 26 Tonnes

Truck:: Ashok Leyland

Truck Model:: 6 x 4

Air Compressor:: ELGI

Engine Rating:: 230 HP @ 2400 rpm

Maximum Depth:: 300Meters(1000Feet)

Rod Handling:: 4.5 inch(15Feet)

Air compressor Model:: 1100cfm/ 300psi

Height:: 8.0 mtr (27 ft)

Rod handling capacity:: 6.0 mtr (20 ft)

Quick Details

type:: LAND BASED

Max. Drilling Dia. (mm):: 300 mm

Range of Spindle Speed(r.p.m):: 1 - 100 r.p.m

Drilling Speed:: 1000 feets

Place of Origin:: Telangana, India

Brand Name:: PRL

Model Number:: PDTHR-300

Voltage:: 2400

Dimension(L*W*H):: 12L*3W*4.5

Weight (KG):: 26000 KG

Core Components:: water wel drilling

Weight:: 26 Tonnes

Truck:: Ashok Leyland

Truck Model:: 6 x 4

Air Compressor:: ELGI

Engine Rating:: 230 HP @ 2400 rpm

Maximum Depth:: 300Meters(1000Feet)

Rod Handling:: 4.5 inch(15Feet)

Air compressor Model:: 1100cfm/ 300psi

Height:: 8.0 mtr (27 ft)

Rod handling capacity:: 6.0 mtr (20 ft)

Product Description

PDTHR-300 Truck mounted Drilling Rig

The PDTHR-300 drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The PDTHR-300 rig's flexibility means it can be mounted on single truck version, two truck versions and on local truck matching the rig to the terrain it will be used. Can be used for both DTH and mud rotary drilling.

Detailed Images

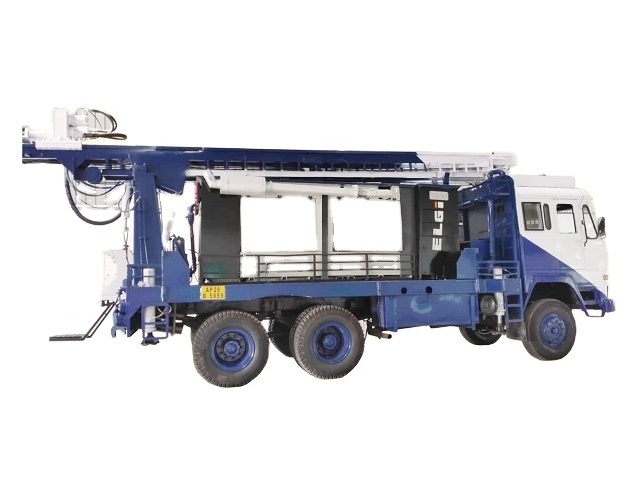

PDTHR-300 Truck Mounted Drilling Rig

Drill rod handling:15 feet (4.5 meter) - 20 feet (6.0 meter)
Drilling depth :1,000 feet (300 meters)
Drilling diameter:6.5 inch (165 mm) - 12.25 inch (311 mm)
Pull up force: 11,200 kgf
Drill head torque: 600 kg.m
Air compressor: 1,100 cfm/300 psi
Mud pump: 700 lpm-1,000 lpm
Carrier: Truck(Optional: Skid)
