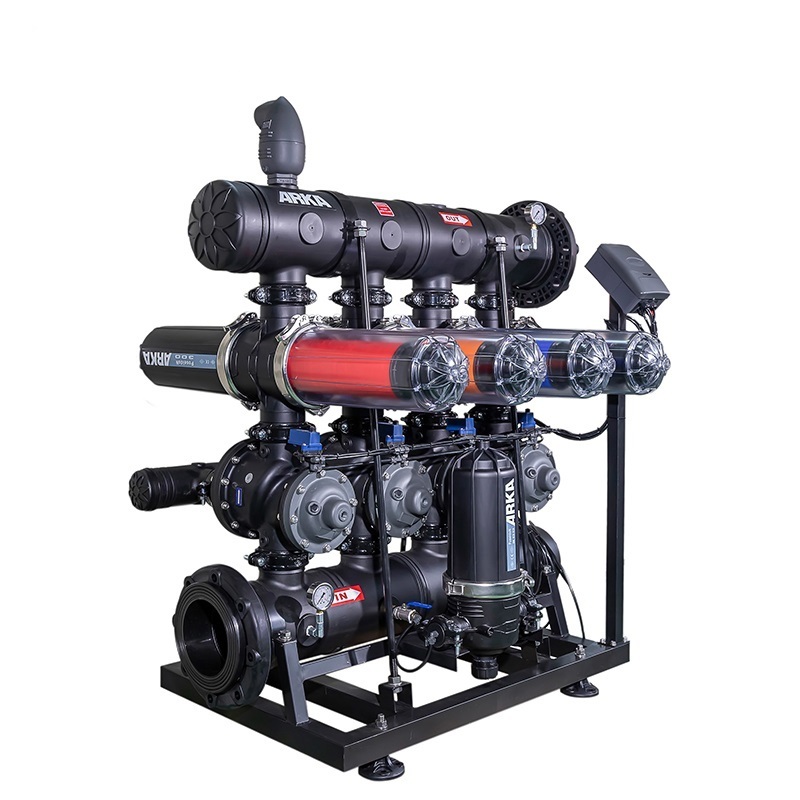

Disk filtration system provides a sustainable solution with its PA6 body and backwash technology. Disk channels perform deep filtration, combining precise depth filtration, high dirt-holding capacity, and an easy-to-scale modular design that permits a wide range of flow rates and configurations.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
57 kg
-
Product name:
-
Disc filtration system
-
Filter housing material:
-
PA6
-
Piping material:
-
PE/SS304/Carbon Steel with anti-corrosive coating
-
Disc element material:
-
PP
-
Sealing material:
-
NBR/EPDM/Silicone
-
Micron rating:
-
20, 50, 100, 130, 200, 400 μm
-
Size of filter:
-
2", 3", 4"
-
Backwash pressure:
-
1.8 bar - 8 bar
-
Backwash flow:
-
2.5 l/s - 3.3 l/s
-
Application:
-
Residential, Municipal, Industrial irrigation
Quick Details
-
Core Components:
-
Plastic PA6
-
Place of Origin:
-
China
-
Productivity:
-
50~256TPH
-
Weight (KG):
-
57 kg
-
Product name:
-
Disc filtration system
-
Filter housing material:
-
PA6
-
Piping material:
-
PE/SS304/Carbon Steel with anti-corrosive coating
-
Disc element material:
-
PP
-
Sealing material:
-
NBR/EPDM/Silicone
-
Micron rating:
-
20, 50, 100, 130, 200, 400 μm
-
Size of filter:
-
2", 3", 4"
-
Backwash pressure:
-
1.8 bar - 8 bar
-
Backwash flow:
-
2.5 l/s - 3.3 l/s
-
Application:
-
Residential, Municipal, Industrial irrigation
Specifications
DISC FILTRATION SYSTEM
Material of Construction
|
Component
|
Material
|
|
● Filter housing
|
PA6
|
|
● Disc element
|
PP
|
|
● Piping
|
PE/SS304/Carbon Steel with anti-corrosive coating
|
|
● Sealing
|
NBR/EPDM/Silicone
|
FEATURE & ADVANTAGE
● Manufactured in polypropylene, resistance to chemical products, wear-resistant;
● Chip built-in controller to collect water pressure data, achieve unmanned automatic perform;
● Modular design, works as an automatic unattended water filtration system, which ensures continuous water supply while discharging the sewage;
● Smart back flush auto-procedure setting;
● Efficient water saving in auto-flushing.
Technology Overview
Filtration stage:
Under the command of the controller, the dirty water flow into the filters in filtration stage via the back-flushing control valves, then the Vortex and the disc keeps the particles in the groove of the discs, the clean water flow into the outlet pipe.
Backwashing stage:
Under the command of the controller, only one of filter starts back-flushing at a time. The back-flushing control valves change the water flow direction, then the filtered water is introduced in reverse through the filtering element which decompresses the stack of disc for the backwash procedure. The solids are expelled from the discs and discharged through the drain manifold.
|
SPECIFICATIONS
|
|
SPECIFICATIONS
|
|
|
|
|||||
|
|
|
2" UNIT
|
|
3" UNIT
|
|
|||||
|
|
MICRON
|
130
|
100
|
130
|
130
|
|||||
|
QUALITY OF WATER
|
MESH
|
120
|
150
|
120
|
120
|
|||||
|
GOOD
|
m3/h
|
25
|
17
|
36
|
32
|
|||||
|
AVERAGE
|
m3/h
|
20
|
14
|
32
|
30
|
|||||
|
POOR
|
m3/h
|
18
|
10
|
26
|
24
|
|||||
|
VERY POOR
|
m3/h
|
12
|
7
|
16
|
14
|
|||||
APPLICATIONS
● Water filtering for household irrigation
● Agriculture irrigation
● Municipal garden irrigation, landscape irrigation
