Quick Details
-
Model Number:
-
SUL181d
-
Max. Current:
-
16A
-
Frequency:
-
50~60 Hz
-
Width:
-
3 modules
-
Incandescent/halogen lamp load:
-
1100 W
-
Shortest switching times:
-
15 min
-
Programmable every:
-
15 min
-
Number of switching segments:
-
96
-
Stand-by consumption:
-
0.5W
-
Type of protection:
-
IP 20
-
Ambient temperature:
-
-20 °C ... +55 °C
-
Certification:
-
CCC
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Naidian
-
Model Number:
-
SUL181d
-
Max. Current:
-
16A
-
Frequency:
-
50~60 Hz
-
Width:
-
3 modules
-
Incandescent/halogen lamp load:
-
1100 W
-
Shortest switching times:
-
15 min
-
Programmable every:
-
15 min
-
Number of switching segments:
-
96
-
Stand-by consumption:
-
0.5W
-
Type of protection:
-
IP 20
-
Ambient temperature:
-
-20 °C ... +55 °C
-
Certification:
-
CCC

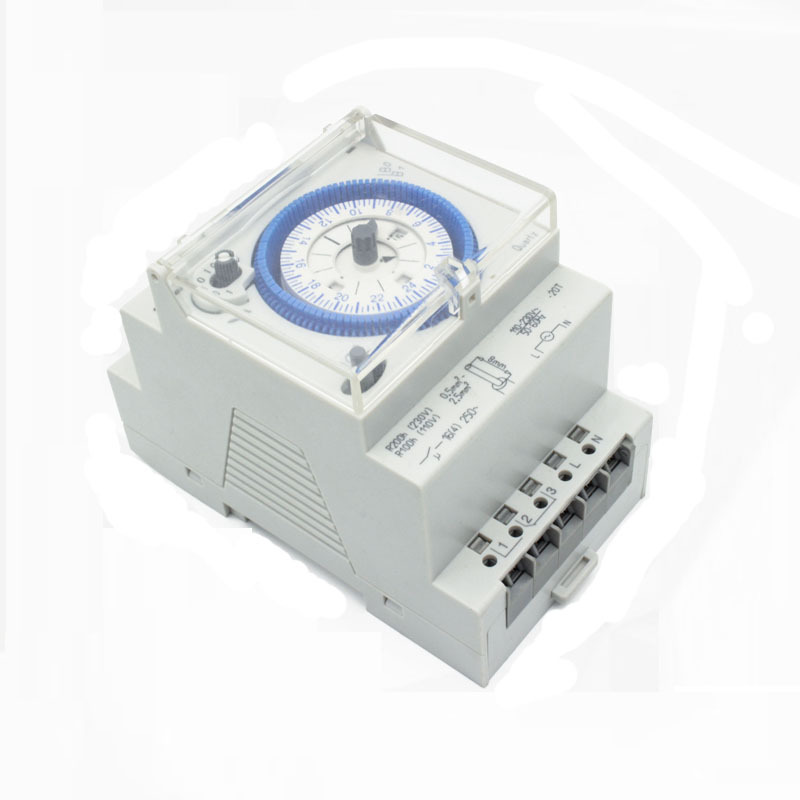

Mechanical timer SUL181d programmable timer switch
--------- Product Show ---------
Welcome to Naidian Group Co., Ltd. Welcome to contact us
Application
SUL18 1 d Mechanical Timer is suit for water heater, Water dispensers, Street lamp, Staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigate, Office power auto control, in anywhere need time control in home or industrial, etc.
Feature :
1) With power reserve (NiMH rechargeable battery)
2) 96 switching segments
3) Quartz controlled
4) Shortest switching time: 15 minutes
Specification :
|
Operating voltage |
110 – 230 V AC |
|
Frequency |
50 – 60 Hz |
|
Number of channels |
1 |
|
Width |
3 modules |
|
Installation type |
DIN rail |
|
Type of connection |
DuoFix spring terminals |
|
Drive |
Quartz-controlled stepper motor |
|
Program |
Daily program |
|
Power reserve |
200 hours approx. 100 hours at 110 V |
|
Switching capacity at 250 V AC, cos φ =1 |
16 A |
|
Switching capacity at 250 V AC, cos φ =0,6 |
4 A |
|
Incandescent/halogen lamp load |
1100 W |
|
Shortest switching times |
15 min |
|
Programmable every |
15 min |
|
Time accuracy at 25 °C |
≤ ± 1 s/day (quartz) |
|
Type of contact |
Changeover contact |
|
Switching output |
Potential-free and phase-independent |
|
Number of switching segments |
96 |
|
Stand-by consumption |
0,5 W |
|
Test approval |
VDE |
|
Housing and insulation material |
High-temperature resistant, self-extinguishing thermoplastic |
|
Type of protection |
IP 20 |
|
Protection class |
II according to EN 60 730-1 |
|
Ambient temperature |
-20 °C … +55 °C |
