mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes
mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes
mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes
mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes
mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes
mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes
mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes
mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes

mini ISUZU LHD dump tipper truck 4KH1CN engine bottom price China manufactured 2T dump truck for dirt soil domestic wastes

FOB Reference Price: Get Latest Price
≥1 Pieces
US $22378
≥5 Pieces
US $19043
≥10 Pieces
US $17239
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Market Segement:
Urban construction muck transportation
Engine Capacity:
< 4L
Gross Vehicle Weight:
5-10T
Drive Wheel:
4X2
After-sales Service Provided:
Video technical support, Online support, Free spare parts
Brand Name:
ISUZU
Place of Origin:
Hubei, China
Engine Brand:
ISUZU
Gear Box Brand:
ISUZU
Dimensions (L x W x H) (mm):
5700*2100*2250(mm)
Cargo Tank Dimension:
Standard
Product name:
Dumper Truck
Driving type:
Left Hand Drive 4*2
Brand:
ISUZU
Engine:
4KH1CN
Emission standard:
,Euro 4 emission standard
Loading capacity:
3.5T-4T
Color:
Customer's Request
Tire:
7.00R16
Wheel base:
3360mm
Application:
Civil Engineering

Quick Details

Condition:
New
Horsepower:
98hp
Emission Standard:
Euro 4
Market Segement:
Urban construction muck transportation
Engine Capacity:
< 4L
Gross Vehicle Weight:
5-10T
Drive Wheel:
4X2
After-sales Service Provided:
Video technical support, Online support, Free spare parts
Brand Name:
ISUZU
Place of Origin:
Hubei, China
Engine Brand:
ISUZU
Gear Box Brand:
ISUZU
Dimensions (L x W x H) (mm):
5700*2100*2250(mm)
Cargo Tank Dimension:
Standard
Product name:
Dumper Truck
Driving type:
Left Hand Drive 4*2
Brand:
ISUZU
Engine:
4KH1CN
Emission standard:
,Euro 4 emission standard
Loading capacity:
3.5T-4T
Color:
Customer's Request
Tire:
7.00R16
Wheel base:
3360mm
Application:
Civil Engineering
specification

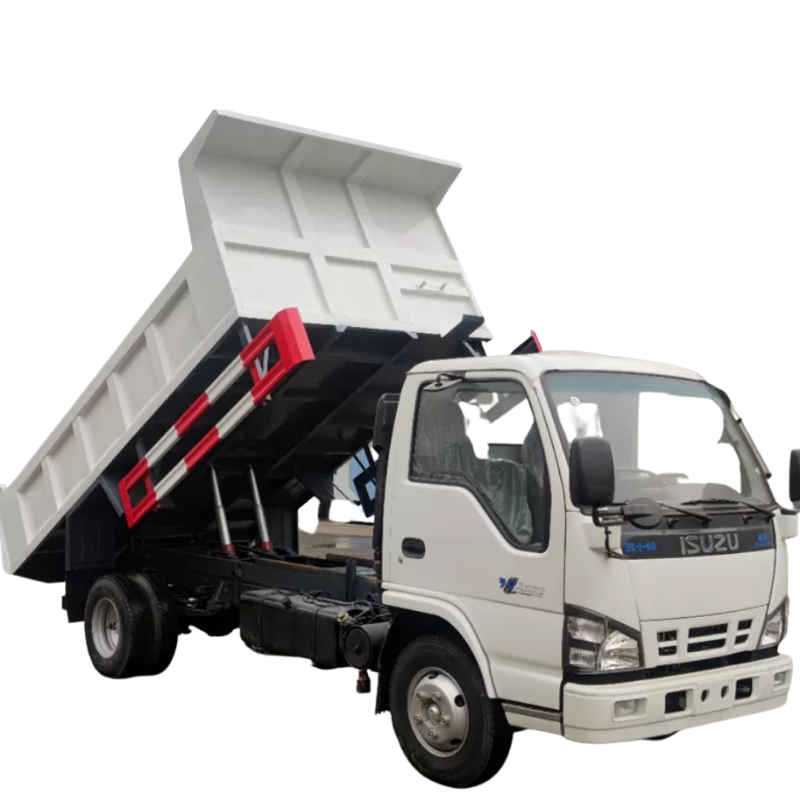

smaller ISUZU 4*2 LHD 130hp light duty dump truck ISUZU engine 4KH1CN5HS
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box
bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.

More information, please feel free to contact with Ms. Anita Deng,
Whatsapp/Wechat/Mob.: 0086 13329899995.
Product Paramenters
Good price and high quality ISUZU 4T light duty domestic wastes dump truck for sale
Smaller ISUZU 100P 4*2 LHD light duty dump tipper truck for sale
ISUZU 600P single row driver cab, reversible
3360mm wheelbase,
4*2 LHD(left hand drive)
4KH1CN5HS 96KW/130hp/2999ml displacement, Euro 5emission standard
ISUZU MSB 5+1 gears, manual type
7.00R16 tires
air conditioner + power steering+ABS,
The overall dimension(L*W*H): 5850×2000×2250(mm)
Dump tipper box dimension(L*W*H): 3700×1900×800(mm)
3mm thickness for side sheet and 4mm thickness for bottom sheet
Total mass: 7300kgs
Curb mass: 3670kgs
Rated mass: 3500kgs

The loading capacity of the ISUZU 4*2 130HP diesel dump truck is up to 4T.

main technical parameters of 4T loading capacity light duty dump truck ISUZU brand as below.
Items
Descriptions
Specifications and Types
General
Truck Name
ISUZU 4*2 LHD light duty dump tipper truck for sale
Drive Type
4*2 LHD
Total mass(kg)
7300
Curb Weight (kg)
3670
Rated mass
3500
Overall Dimensions L*W*H(mm)
5850×2000×2250
Engine
Engine Model
4KH1CN5HS
Engine Brand
ISUZU
Fuel Type
Diesel
Power
96kw/130HP
Emission Standard
Euro 5
Displacement(ml)
2999
Chassis
Chassis Brand
ISUZU
Tire No.
6
Tire Specification
7.00R16
Wheelbase (mm)
3360
Axle No.
2
Gear Box
ISUZU MSB 5+1 gears, manual type
Steering Wheel
Left Hand Drive with power steering
Driver cab
ISUZU 600P single row driver cab with air conditioner
Tipping system
Box inner dimension(mm)
3700×1900×800(mm)
Box material
High quality Carbon steel, 3mm thickness for side sheet and 4mm thickness for bottom sheet.
Tipping way
Double hydraulic cylinders middle installed tipping
Open type
Rear door open
Details Images
Our Advantages
As a dump truck supplier, in truck brand, we have many dump trucks , such as dongfeng dump truck, sinotruck dump truck, foton dump truck, forland dump truck, faw dump truck, beiben dump truck, iveco dump truck, jac dump truck, jmc dump truck, etc. In dump truck capacity, we have mini 5 cubic meters dump truck, medium 20 cubic meters dump truck, heavy 30 cubic meters dump truck . In drive type, we have 4x2 dump truck, 4x4 mini dump truck, 6x4 dump truck, 8x4 dump truck. In steering wheel, we have right hand drive dump truck, LHD dump truck.

The dump truck is kind of special truck self-discharging goods by hydraulic lifting or mechanism lifting. It is also called
tipper, made up of chassis, hydraulic lifting mechanism, van, PTO, etc. In engineering, the dump truck is always working with digging machine/vehicle, loader, band conveyor, etc. with a production line of loading, transporting, unloading, loading, unloading, and transporting earth, freestone, bulk cargo, etc.

The new dump truck of after mending dump truck must be trial operating, making the van lifting safety and steady. Every part of the dump truck should choose the right lube oil, much more saving discharging time and manpower, the lifting mechanism should be strictly change lube oil. The dump truck cannot be overload, according to the rated mass.

Dump truck types:
1. outlook, single axle dump truck, double axle dump truck, flathead dump truck, long head dump truck, front four and rear eight dump truck, 2 axles tipper semi-trailer, 3 axles tipper semi-trailer, etc.
2. Usage: agricultural dump truck, mining dump truck/tipper, garbage dump truck, coal dump truck/tipper, engineering dump truck, sewer dump truck, etc.
3. Driving type: 6*4, 8*4 dump truck and tipper semi-trailer, etc.
