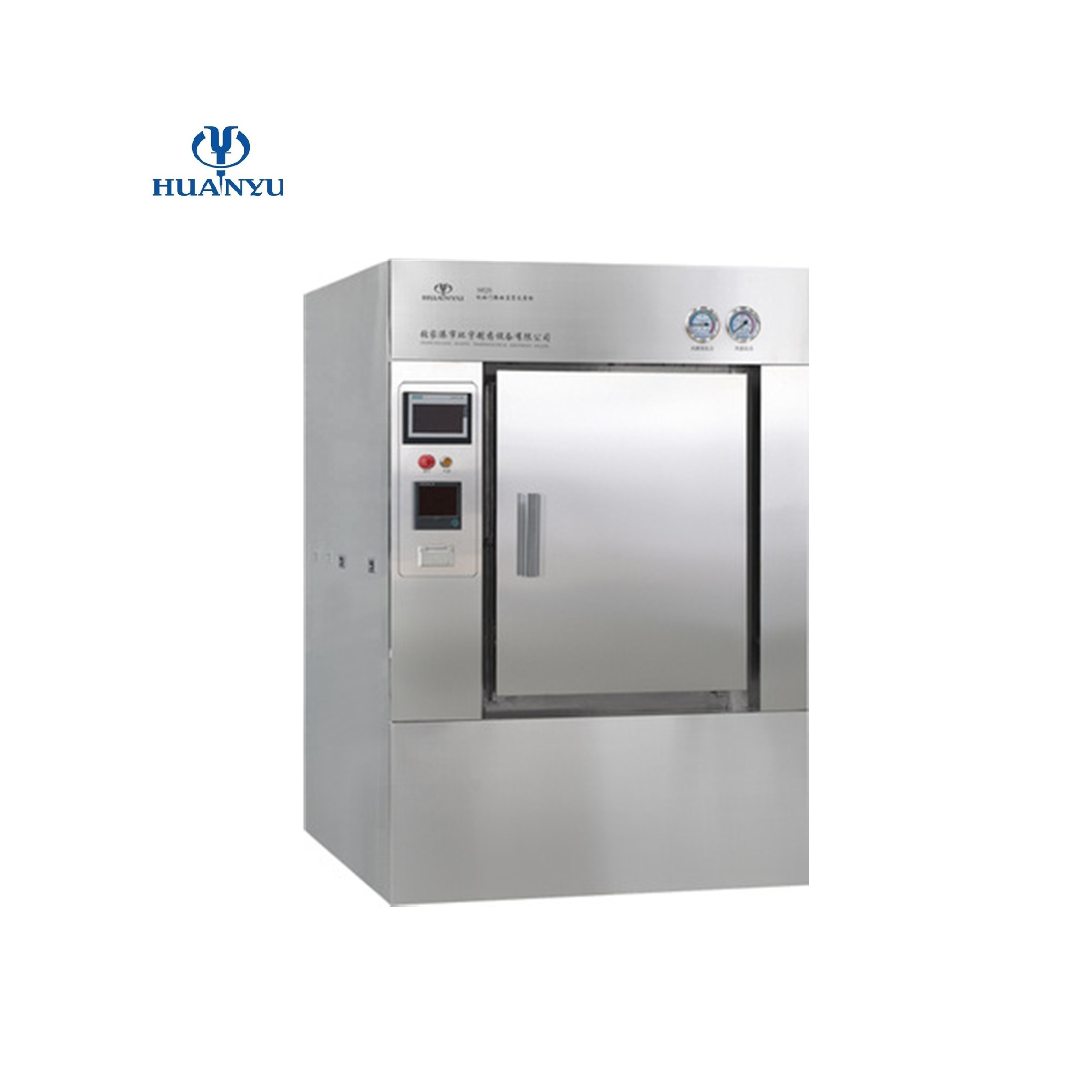

MQS steam autoclave 250 liters and larger used in pharmaceutical factory hospital

MQS steam autoclave 250 liters and larger used in pharmaceutical factory hospital

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: MQS steam autoclave 250 liters and larger

Place of Origin:: Jiangsu, China

Name:: steam autoclave 250 liters and larger

Material:: 304/316L Stainless Steel Optional

Accessories:: SIEMENS, MITSUBISHI, PALL, AIRTAC

Automatic door type:: Motor-driven door / Cylinder door

System language:: Optional (English / Russian...)

Documents:: FAT, SAT, DQ, PQ, OQ, IP

Output System:: Recorder, Printer

Control System:: PLC, touch screen system

Quick Details

Warranty:: 1 Year

After-sale Service:: Onsite Training

Brand Name:: Huanyu steam autoclave 250 liters and larger

Model Number:: MQS steam autoclave 250 liters and larger

Place of Origin:: Jiangsu, China

Name:: steam autoclave 250 liters and larger

Material:: 304/316L Stainless Steel Optional

Accessories:: SIEMENS, MITSUBISHI, PALL, AIRTAC

Automatic door type:: Motor-driven door / Cylinder door

System language:: Optional (English / Russian...)

Documents:: FAT, SAT, DQ, PQ, OQ, IP

Output System:: Recorder, Printer

Control System:: PLC, touch screen system

Products Description

Basic features

■ Door selection : sliding door / hinged door.

■Chamber volume : 150 liters to 800 liters.
■The chamber is designed to withstand pressure : -0.1Mpa to 0.25Mpa.
■The chamber is designed to withstand temperature up to 140℃.
■The structure is horizontal rectangular shape.
■2 test programs, 5 programmable cycle programs for users to set.
■Built-in printer.
■USB port to download cycle data to memory devices.
■User friendly control system with touch screen display on loading side and touch buttons on unloading side.
■Independent pressure gauges for chamber and jacket on both front and back panel.

VOLUME (liter)	MODEL	CHAMBER DIMENSION (mm) Depth Width Height					External DIMENSION (mm) Depth Width Height
150	MQS0.15-V	600	500	500	1000	1250	1800
250	MQS0.25-H	800	600	600	1100	1320	1700
250		MQS0.25-V	1000	500	500	1400	1250	2000
360	MQS0.36-H	1000	600	600	1300	1320	1700
360		MQS0.36-V	1000	600	600	1400	1350	2100
600	MQS0.6-H	1200	610	910	1500	1320	1950
600		MQS0.6-V	1450	650	650	1850	1400	2180
800	MQS0.8-H	1450	610	910	1750	1320	1950
800		MQS0.8-V	1900	650	650	2300	1400	2180

Detail image

Loading trays

Loading cart & trolley

Sealing door

1）Door panel material: 316L(304) stainless steel, inner surface precision polishing treatment.

2）Switch mode: the motor drives the locking mechanism to translate up and down to achieve the purpose of locking and releasing.
3）Safety interlock: the door is not sealed, and the steam is not allowed into the chamber; when there is pressure in the chamber,not allowed to open the door; Fully comply with the pressure vessel safety interlock standard.
4)Flange,Rack and tooth plate:made of 304 stainless steel,the sealing groove is formed by CNC planer milling machine, and the sealing effect of door apron is good.

Pipeline system

1）Stainless steel pipes without dead angle, ensuring complete drainage. 2）High quality pneumatic valve. 3）Filter: The autoclave is accessorized with high efficiency antibacterial air filter with oylet less than 0.22 micrometers protected by a check valve, which could avoid secondary pollution, and it could be optionally equipped with SIP function. 4）Validation port: Validation port is equipped on the side of the autoclave for the insert of the validation probes for the GMP validation. 5）Temperature control: Both movable and fixed sensor is installed on the autoclave. 6）Optionally accessorized with built-in steam generator;;

CONTROL

■PLC and HMI from SIMENS

■Automatic & Manual Operation Mode;

■ Stable performance & precise control;

■ Multiple sterilize cycles;

■ Sterilizing parameters can be set on HMI;

■ Print of time, temperature, pressure and etc.

■ Display the real-time data and curve and valve status.

GRAVITY CYCLE

The gravity cycle is used for the liquid and media inside the open top glass containers, for instance, the culture medium and animal drinks. The gravity cycle displace the chamber air by gravity of the air.

PRE VACUUM CYCLE

The autoclave vacuum pump conducts 3/4 times of pre-vacuum in the beginning of the cycle to remove the chamber air more than 99%, so that the chamber steam could have good penetration, and temperature more even by this way.

Application

This series of MQS series pulse vacuum autoclave is widely used for the sterilization of textile, metal utensils, filters, glassware, and medium (liquid product stored in open container).
