Quick Details
-
Brand Name:
-
Shangkai(SK)
-
Model Number:
-
AX16-212-3
-
Max. Current:
-
3A
-
Mechanical Life:
-
50,000 cycles
-
Color:
-
Black
-
Terminals:
-
6 pins
-
Mounting hole size:
-
16mm
-
Electrical life:
-
25,000 cycles
-
Position:
-
3
-
max.rating cnrrent&voltage:
-
3A 250vac
-
contact resistance:
-
<50mΩ
-
insulation resistance:
-
≥100MΩ
-
operating temperature:
-
-25℃-55℃
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Shangkai(SK)
-
Model Number:
-
AX16-212-3
-
Max. Current:
-
3A
-
Mechanical Life:
-
50,000 cycles
-
Color:
-
Black
-
Terminals:
-
6 pins
-
Mounting hole size:
-
16mm
-
Electrical life:
-
25,000 cycles
-
Position:
-
3
-
max.rating cnrrent&voltage:
-
3A 250vac
-
contact resistance:
-
<50mΩ
-
insulation resistance:
-
≥100MΩ
-
operating temperature:
-
-25℃-55℃

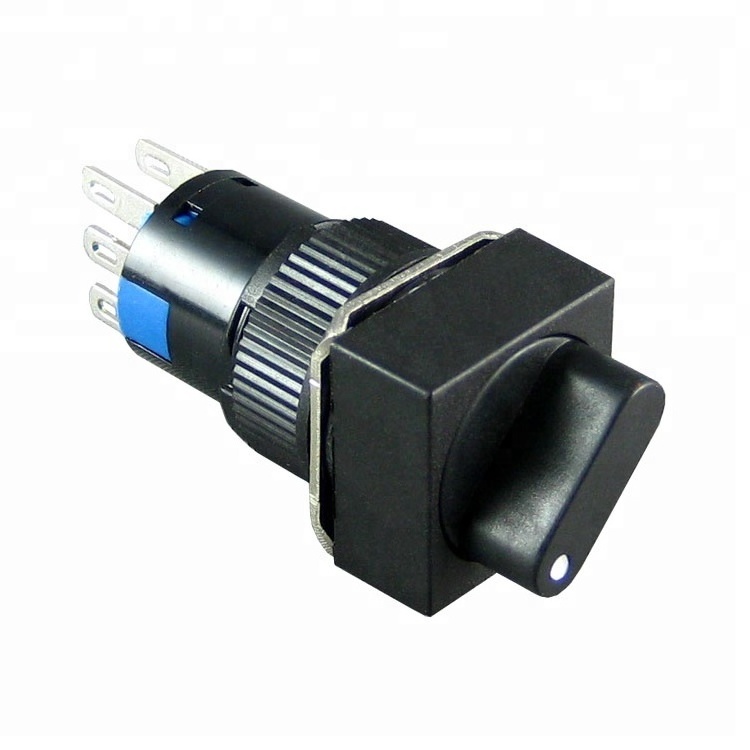

factory provide samples for free 3a 250v 3 phase black square rotary switch
If you have enough quantity, we can customize the switch that meets your requirements. Our company has
independent plant,
injection molding workshop and advanced experimental equipment.We have more than
60 senior engineers and implement 5S management in all our workshops.Please click to contact us
| Contact Resistance:≤50mΩ | Insulation Resistance:≥100mΩ |
| Dielectric Strength:1,500V,1min | Electronic Life:25,000 cycles |
| Operating temperature:-25℃-55℃ | Rating current/voltage:3A/250V AC |
Click to find more similar switches that meet your needs.
Our quality policy is:"Make progress by Technology,Create Brand by Quality".All our products are 100% strictly inspected before being shipped.You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.
