Quick Details
-
Type:
-
Smart Power Analyzer 96x96
-
Rated Current:
-
3*1.5(6)
-
Measurement:
-
U,I,P,Q,Hz, kWh, kVarh,dma etc
-
Standard:
-
IEC62052-11/IEC62053-21
-
Certificate:
-
CE ROHS
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
400/230V,110/63V,208/120V
-
Place of Origin:
-
China
-
Type:
-
Smart Power Analyzer 96x96
-
Rated Current:
-
3*1.5(6)
-
Measurement:
-
U,I,P,Q,Hz, kWh, kVarh,dma etc
-
Standard:
-
IEC62052-11/IEC62053-21
-
Certificate:
-
CE ROHS
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
One choice, All solved
Brief Introduction:

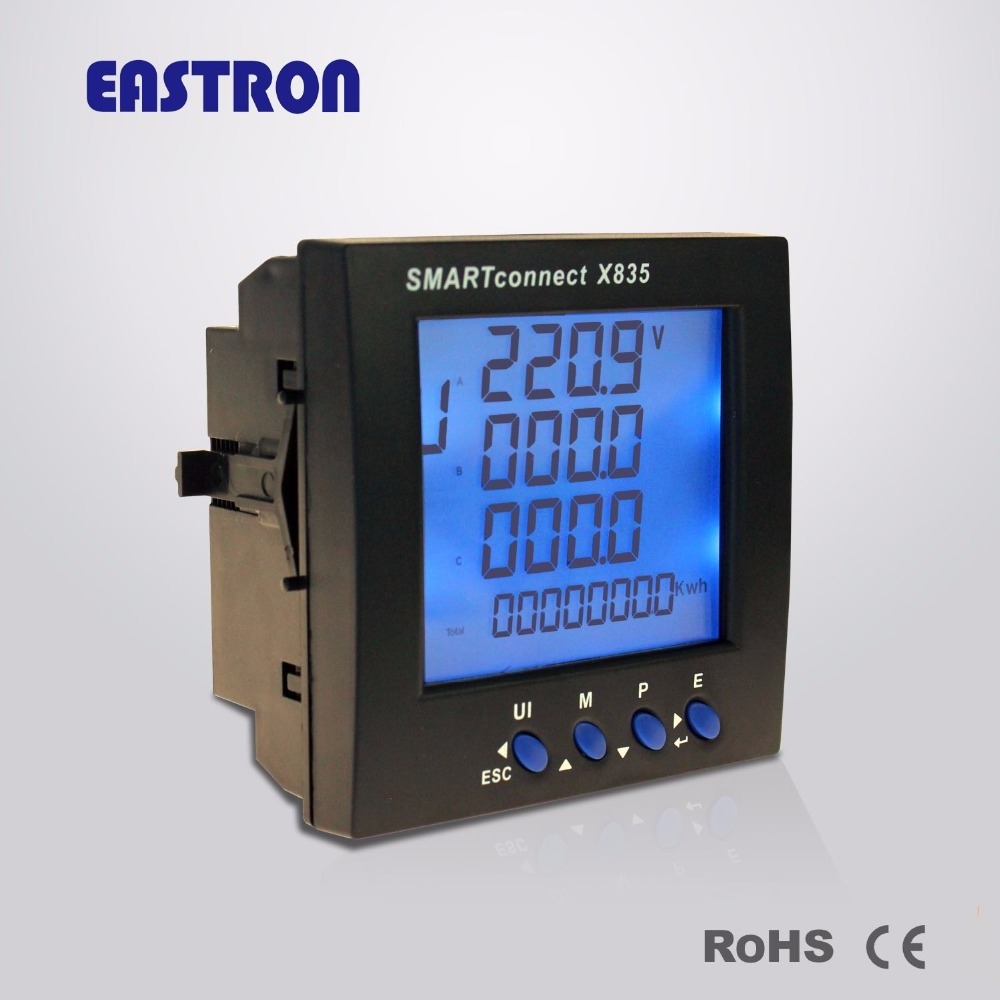

The new version Smartconnect X835 is multifucntion panel meter with current, voltage,frequency,demand,power,energy and THD parameters. Data can be transferred using RS485 Modbus or Pulsed output. It reduces costs on labour by reducing wiring time and elimination of wiring errors. It is a simple and fast solution which consists of plug in Current Transformers, Plug in Multifunction Power Mete and pre-manufactured iring looms. The SMARTconnect product allows less qualified personnel to install an saves uo to 80% on labour.
Within the product range we offer a 96x96 Din meter SmartConnectX835 ( SDM630) and comes with built in RS485 and Pulsed Output. The meter has a voltage connection output which can allow you to daisy chain up to 32 meters instead of connection back to the origina supply. We also have 3 models of our 3 in 1 curret transformers ranging from 60A to 630A. We stock a range of pre-manufaturd wiring looms and can supply as a ready made kit based on the customer requirement.
Features:
- A complete wiring solution with integral connectors and earthing;
- Screwingless terminal connections vibration proof and maintenance free
- Reduces intallation time by at least 80% over standard methods
- Eliminates protential cost of errors in electronical connections or programming
- Tidy solustion to cable management
Technicial specification
Current Transformeters
A range of 3 in 1 current transformers for use with smart connection solution. The 3 in 1 current transformers combine three traditional current transformers in one moulded case with a pliggable locking connectors for simple and easy installation.
Wiring Cables with integral clips
- High Pull resistance connectors for durable use
- Pre-cut specific to application for easier cable dressing
- Voltage cables are multipurpose can be used for first incoming voltage supply and for additional meter looping
Certification by SGS:
