Quick Details
-
After-sales Service Provided:
-
Overseas third-party support available
-
Model:
-
hand tractor manual
-
Color:
-
green,red,bule,orange ,any color
-
Logo:
-
costomizd,for free
-
Implements:
-
loader,plough,mower,trailer,snow blower and so on
-
Package:
-
nude package or SKD
-
Payment:
-
T/T,LC
-
Tire:
-
radial tire
Quick Details
-
Brand Name:
-
HUAXIA
-
Place of Origin:
-
Shandong, China
-
Weight:
-
3100 KG
-
After-sales Service Provided:
-
Overseas third-party support available
-
Model:
-
hand tractor manual
-
Color:
-
green,red,bule,orange ,any color
-
Logo:
-
costomizd,for free
-
Implements:
-
loader,plough,mower,trailer,snow blower and so on
-
Package:
-
nude package or SKD
-
Payment:
-
T/T,LC
-
Tire:
-
radial tire

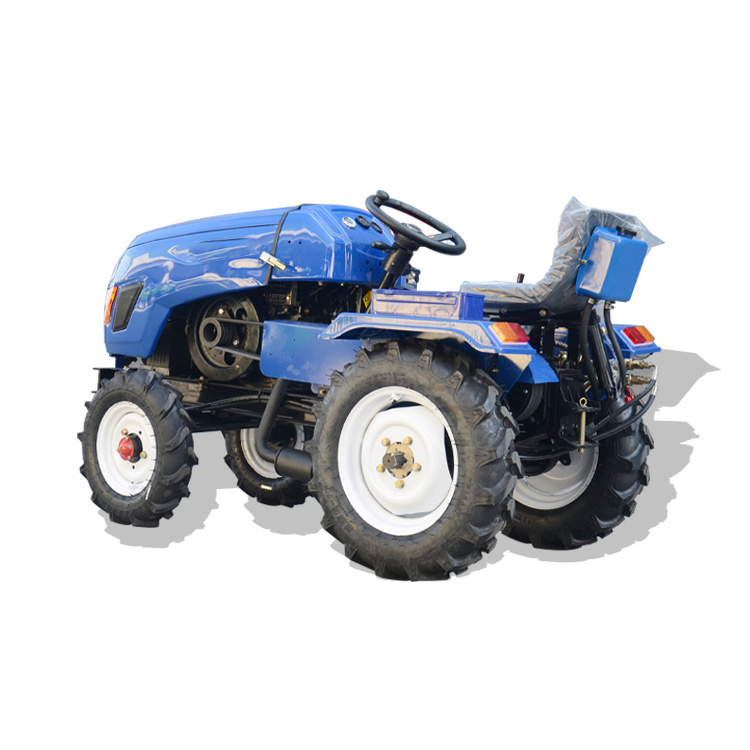

new design hot sale mini tractor with plow from china
|
Chassis Information |
|
|
Model |
GN-20 |
|
Overall Dimensions:(L×W×H) |
2950×980×1240mm |
|
Wheel tread |
570,630,690,750,810mm |
|
Tyres |
Front 6.00-12 |
|
Rear 4.00-8 |
|
|
Skid Wheels |
2 Nos. 40Kg |
|
Ground clearance |
210mm |
|
Working weight (with rotary tiller) |
480 kg |
|
Speed (km/hr) |
Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30 |
|
Reverse 1.10, 4.10 |
|
|
Rotary tiller |
Model:1GL-60 |
|
Whole weight: 118 kg |
|
|
Width 600 mm |
|
|
Transmission type: chain drive |
|
|
Turning Speed: Low:199, High:250 |
|
|
Number of blades: 18 pieces |
|
|
Engine Information |
|
|
Model |
CJ25 Diesel |
|
Type |
Single cylinder,4-stroke,horixontal,water-cooled,diesel |
|
Cooling model |
Condenser (Radiator) |
|
Rated power |
17.6kw |
|
Rated speed |
2000rpm |
|
Fuel efficiency |
≤244.8gl/kw.hr |
|
Net weight |
150 kg |
|
Packing |
Case dimensions 116×108×108cm |
|
N.W/G.W 480/540 kg |
|
|
Optional accessories |
Trailer 600USD |
|
Disc plough 285USD(BIG) 100USD(SAMLL) |
|
|
Double plough 100USD |
|
|
Single plough 65USD |
|
|
Water pump 65USD |
|
|
Container Load |
|
|
Qty/20' FCL |
30 PCS(22 PCS/20FTC,mud wheels outside the packing) |
|
Qty/40' FCL |
60 PCS(48 PCS/40FTC,mud wheels outside the packing) |
Help and Support Centre - Frequently Asked Questions
Q. I'm a complete tractor novice, never driven one in my life - can you help me?
A. Absolutely! Your new tractor comes with a training DVD and instruction manual. If you still need assistance, we're only a phone call away - we're here to help.
Q: Why are HuaxiaTractors such awesome value for money?
A: Huaxia Tractors are awesome value because we are manufacturer. We have no commercial lease to pay. Tractors and implements are stored in a rural shed, so we pass the savings directly on to you.
Q: Do implements require any assembly?
A: Yes. Most implements have some assembly required, they're typically partially assembled for transportation. Tightening of all bolts is required.
Q: What lubrication do implements require?
A: Unless otherwise stated, all implements with gearboxes, such as slashers, post hole borers and rotary tillers, are shipped dry and require the addition of gear oil.
Q: Is the three point linkage limited to just two positions? (Up or down).
A: No. The three point linkage can be stopped at any position.
Q: What type of three-point linkage does the tractor have?
A: The tractor has a Category 1 three-point linkage
Q: How much weight can the three point linkage lift?
A: This depends on which model tractor you purchase. Please review the specifications page.
Q: How much fuel does the tractor use?
A: Approximately 5 - 7 litres per hour, depending on engine capacity, speed, load, etc.
Please review the specifications page for more information.
Q: What speed and power does the PTO deliver?
A: The PTO has dual speeds: 540 / 1000 RPM.
Q: What type of brakes does the tractor have?
A: The Fumetsu has Non-Hydraulic Drum Brakes on the rear wheels.
