APET Injection Molding Series is a fully new concept PET preform injection machine ,which design based on more than 10 years of manufacturing experience ,and good understanding on injection molding processing and PET preform technology ,for the beverage botte preform ,salad oil PET preform , cosmetics/pharmaceutical preform ,we design the injection machine more reliable,more closer to the market demand.Our injection machine is more compatible ,and application to all various PET preform field .
- Product Details
- {{item.text}}
Quick Details
-
Mold Height(mm):
-
220 - 610 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
88 kN
-
Theoretical Shot Volume(cm³):
-
452 cm³
-
Injection Rate (g/s):
-
606 g/s
-
Injection Weight (g):
-
1500 g
-
Screw Speed (rpm):
-
156 - 200 rpm
-
Screw diameter (mm):
-
75 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
760x760
-
Weight (KG):
-
14000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
640 mm
-
Model Number:
-
ZSJ
-
Brand Name:
-
ALPS
-
Power (kW):
-
67 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Keyword:
-
fast food box injection machine
-
Controlled:
-
PLC (SIEMENS)
-
Drive type:
-
Hydraulic system
-
Voltage:
-
Customed Avaiable
-
Application:
-
Plastic products
-
LANGUAGE:
-
Language Customized
-
Motor:
-
Energy Saving Pump
-
Machine dimension(L*W*H):
-
7.3*1.85*1.4m
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
639mm
-
Distance between Tie Bars(Height)(mm):
-
590mm
-
Plasticizing Capacity(g/s):
-
32
-
Mold Height(mm):
-
220 - 610 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
88 kN
-
Theoretical Shot Volume(cm³):
-
452 cm³
-
Injection Rate (g/s):
-
606 g/s
-
Injection Weight (g):
-
1500 g
-
Screw Speed (rpm):
-
156 - 200 rpm
-
Screw diameter (mm):
-
75 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
760x760
-
Weight (KG):
-
14000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
640 mm
-
Model Number:
-
ZSJ
-
Brand Name:
-
ALPS
-
Power (kW):
-
67 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Keyword:
-
fast food box injection machine
-
Controlled:
-
PLC (SIEMENS)
-
Drive type:
-
Hydraulic system
-
Voltage:
-
Customed Avaiable
-
Application:
-
Plastic products
-
LANGUAGE:
-
Language Customized
-
Motor:
-
Energy Saving Pump
-
Machine dimension(L*W*H):
-
7.3*1.85*1.4m
Product Description

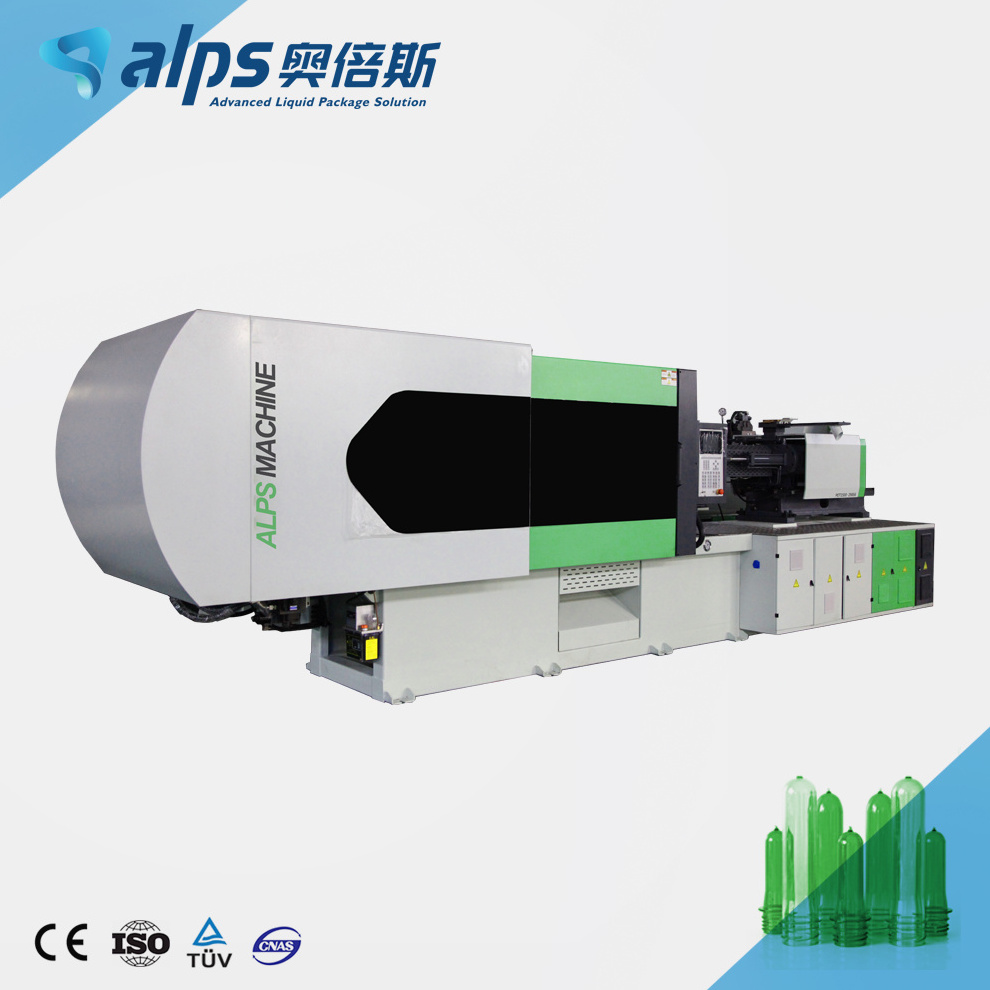

Servo Energy Saving PET PET Preform Injection Molding Machine
Detail photos
|
Technical Parameter :Injection Molding Machine
|
|
|
|
|
|
|||||
|
Model
|
Clamping force
|
Screw diameter
|
Injection weight
|
Motor power
|
Heating power
|
|||||
|
APET600/208S7
|
2080KN
|
52mm
|
611g
|
23KW
|
13.3KW
|
|||||
|
APET800/208S7
|
2080KN
|
60mm
|
814g
|
23KW
|
16.5KW
|
|||||
|
APET1200/208S7
|
2080KN
|
67mm
|
1209g
|
27.8KW
|
23.6KW
|
|||||
|
APET1200/288S7
|
2880KN
|
67mm
|
1209g
|
27.8KW
|
23.6KW
|
|||||
|
APET1500/288S7
|
2880KN
|
75mm
|
1515g
|
36.5KW
|
30.7KW
|
|||||
|
APET1500/328S7
|
3280KN
|
75mm
|
1515g
|
39.4KW
|
30.7KW
|
|||||
|
APET2300/328S7
|
3280KN
|
83mm
|
2369g
|
39.4KW
|
35.7KW
|
|||||
|
APET3100/328S7
|
3280KN
|
95mm
|
3103g
|
72KW
|
45.3KW
|
|||||
|
APET2300/388S7
|
3880KN
|
83mm
|
2369g
|
39.4KW
|
35.7KW
|
|||||
|
APET3100/388S7
|
3880KN
|
95mm
|
3103g
|
72KW
|
45.3KW
|
|||||
|
APET4500/388S7
|
3880KN
|
100mm
|
4521.6g
|
36.5KWx2
|
55KW
|
|||||
|
APET5000/388S7
|
3880KN
|
105mm
|
4984.8g
|
36.5KWx2
|
61KW
|
|||||
|
APET3100/458S7
|
4580KN
|
95mm
|
3103g
|
72KW
|
55KW
|
|||||
|
APET4500/458S7
|
4580KN
|
100mm
|
4521.6g
|
36.5KWx2
|
55KW
|
|||||
|
APET5000/458S7
|
4580KN
|
105mm
|
4984.8g
|
36.5KWx2
|
61KW
|
|||||
|
APET6000/458S7
|
4580KN
|
110mm
|
5926.8g
|
39KWx2
|
67KW
|
|||||
|
APET7000/458S7
|
4580KN
|
120mm
|
7053.6g
|
39KWx2
|
73KW
|
|||||
|
APET8000/458S7
|
4580KN
|
125mm
|
8242.8g
|
45KWx2
|
80KW
|
|||||
Detailed Images
Injection Molding Machine
High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
