Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
W3SSX
-
Seals Type:
-
ZZ 2RS OPEN
-
Place of Origin:
-
China
-
Material:
-
Chrome Steel, Carbon Steel, Stainless Steel, Plastic, Ceramic
-
Certificate:
-
ISO9001:2008
-
Service:
-
OEM
-
Sample:
-
Available
-
Package:
-
Tube
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use
-
Bore Size:
-
1 - 10 mm
-
Precision Rating:
-
P0,P6,P5,P4,P2
-
Number of Row:
-
Single row
-
Model Number:
-
W3SSX
-
Seals Type:
-
ZZ 2RS OPEN
-
Place of Origin:
-
China
-
Material:
-
Chrome Steel, Carbon Steel, Stainless Steel, Plastic, Ceramic
-
Certificate:
-
ISO9001:2008
-
Service:
-
OEM
-
Sample:
-
Available
-
Package:
-
Tube

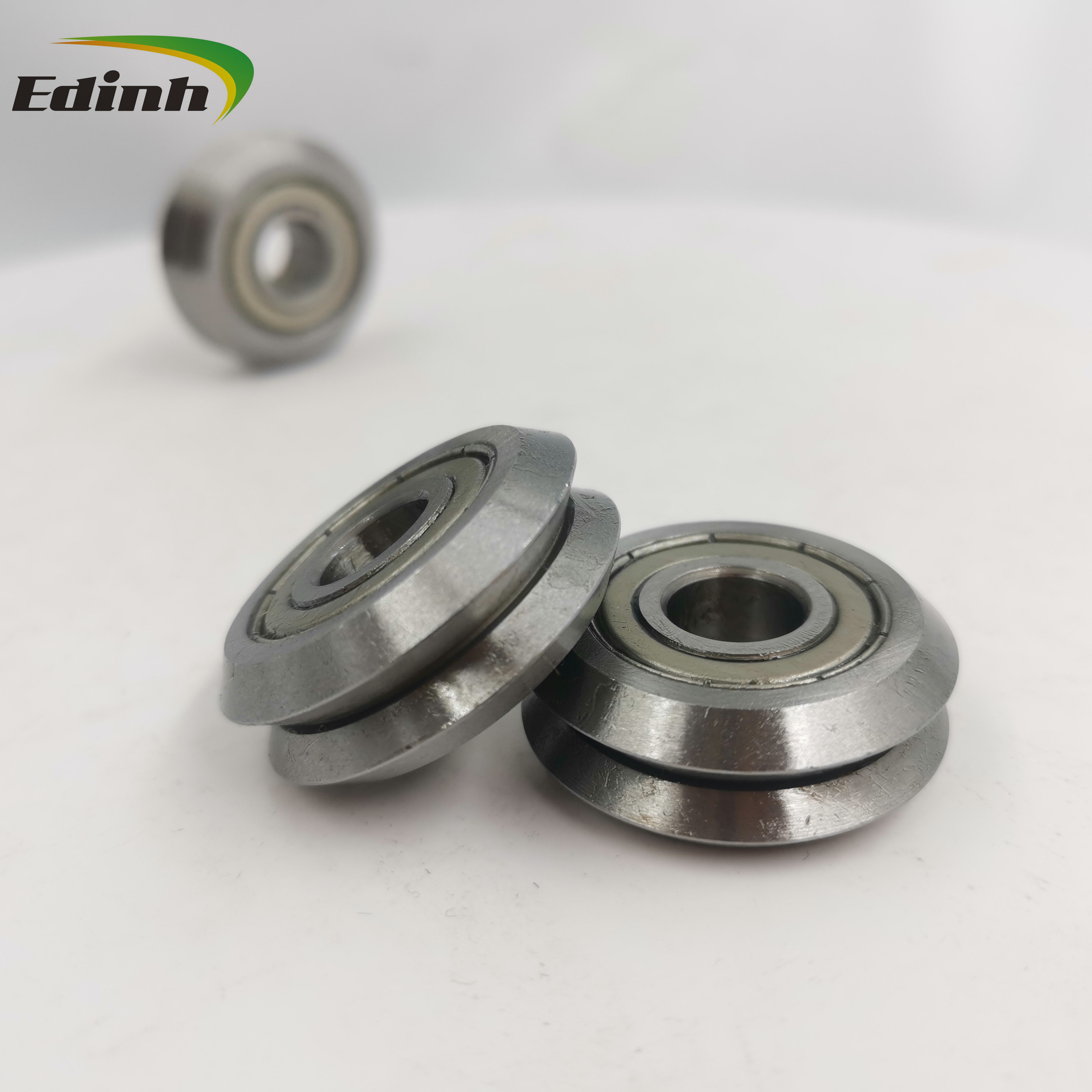

W Wheel Roller Guide Stainless Steel Ball Bearing W3ssx W1ssx W2ssx W4ssx
Product Description
Deep Groove ball bearings
are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
Embroidery machine track roller bearing
*Guide roller bearing manufacturer
*ISO9001: 2008
*LV(RV) SG W V U LFR series
*OEM
V W series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W1) and rubber cover seal (name of X suffix, such as: W2X) two kinds
If using stainless steel material, the name will be the words with the SS, such as: W3SSX
*Guide roller bearing manufacturer
*ISO9001: 2008
*LV(RV) SG W V U LFR series
*OEM
V W series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W1) and rubber cover seal (name of X suffix, such as: W2X) two kinds
If using stainless steel material, the name will be the words with the SS, such as: W3SSX
W type guide roller bearing: W (RM) 0, 1 W (RM), W (RM) 2, 3 W (RM), W (RM) 4, W (RM) 0 x, W (RM) 1 x, 2 x W (RM), W (RM) 3 x, W
(RM) 4 x, W (RM) 4 xl, W4XXL, W (RM) 1 SSX, W (RM) 2 SSX, W (RM) 3 SSX, W (RM) 4 SSX.
The application of the guide roller, W (RM) type roller guide system main components, widely used in industrial robots, cutting equipment, mobile guide rail, production lines, etc.
Guide roller bearing outer ring as consisting of two 90 - degree V W shaped outer surface.Can be used alone inner side or outer side with 90 - degree inside outside V or V rail adapter, also available in the side with cylindrical guide adaptation.
Guide roller adopts the internal structure of double row angular contact ball bearing design and thickening of the outer ring,roller have a higher bearing capacity.
Guide roller made of high quality bearing steel, after heat treatment, precision grinding and become, and long life of high
quality by filling in internal multipurpose grease.Wheel dust using metal dust cover, or rubber sealing ring (suffix X).IBS with concentric and eccentric bearing company can also provide sets of roller, can also provide the corrosion resistance of stainless steel roller.
(RM) series of guide roller bearing W guidance system has the following characteristics:
1. The small resistance, long life and wide application
W (RM) series of guide roller working surface after fine grinding, good roughness, 90 degree Angle accurately.Roller w-shaped slots with inner ring installation plane parallelism.The stress of the work, between wheel and rail is smooth, small friction resistance.
2. Easy installation and simple
Guide roller configuration eccentric sleeve and concentric sleeve, the installation is very convenient, adjust the amount of
eccentric wheel can get proper preloading.
(RM) 4 x, W (RM) 4 xl, W4XXL, W (RM) 1 SSX, W (RM) 2 SSX, W (RM) 3 SSX, W (RM) 4 SSX.
The application of the guide roller, W (RM) type roller guide system main components, widely used in industrial robots, cutting equipment, mobile guide rail, production lines, etc.
Guide roller bearing outer ring as consisting of two 90 - degree V W shaped outer surface.Can be used alone inner side or outer side with 90 - degree inside outside V or V rail adapter, also available in the side with cylindrical guide adaptation.
Guide roller adopts the internal structure of double row angular contact ball bearing design and thickening of the outer ring,roller have a higher bearing capacity.
Guide roller made of high quality bearing steel, after heat treatment, precision grinding and become, and long life of high
quality by filling in internal multipurpose grease.Wheel dust using metal dust cover, or rubber sealing ring (suffix X).IBS with concentric and eccentric bearing company can also provide sets of roller, can also provide the corrosion resistance of stainless steel roller.
(RM) series of guide roller bearing W guidance system has the following characteristics:
1. The small resistance, long life and wide application
W (RM) series of guide roller working surface after fine grinding, good roughness, 90 degree Angle accurately.Roller w-shaped slots with inner ring installation plane parallelism.The stress of the work, between wheel and rail is smooth, small friction resistance.
2. Easy installation and simple
Guide roller configuration eccentric sleeve and concentric sleeve, the installation is very convenient, adjust the amount of
eccentric wheel can get proper preloading.
SG Series Embroidery machine track roller bearing models:
SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N LFR50/5-4N LFR50/5N LFR50/5 LFR50/8N LFR50/8-8N
LV Series track roller bearing: LV 20/7 ZZ, LV 20/8 ZZ, LV20/10ZZ, LV 202-38 ZZ, LV 202-40 ZZ, LV 201 ZZ, LV 201-14.2RS, LV 202-41
ZZ, LV 203 ZZ, LV 204-57 ZZ, LV 204-58 ZZ
SG SIZE
SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N LFR50/5-4N LFR50/5N LFR50/5 LFR50/8N LFR50/8-8N
LV Series track roller bearing: LV 20/7 ZZ, LV 20/8 ZZ, LV20/10ZZ, LV 202-38 ZZ, LV 202-40 ZZ, LV 201 ZZ, LV 201-14.2RS, LV 202-41
ZZ, LV 203 ZZ, LV 204-57 ZZ, LV 204-58 ZZ
SG SIZE
|
Model
|
Weight
|
Size (mm)
|
|
|
|
|
||||
|
|
≈ (g)
|
dw
|
d
|
D
|
C
|
B
|
||||
|
SG15
|
8
|
6
|
5
|
17
|
8
|
5.75
|
||||
|
SG15-10
|
9
|
10
|
5
|
17
|
8
|
5.75
|
||||
|
SG20
|
25
|
8
|
6
|
24
|
11
|
7.25
|
||||
|
SG25
|
49
|
10
|
8
|
30
|
14
|
8.5
|
||||
|
SG35
|
136
|
12
|
12
|
42
|
19
|
12.5
|
||||
|
SG15N
|
8
|
6
|
5
|
17
|
8
|
5.75
|
||||
|
SG20N
|
25
|
8
|
6
|
24
|
11
|
7.25
|
||||
|
SG25N
|
49
|
10
|
8
|
30
|
14
|
8.5
|
||||
|
SG35N
|
136
|
12
|
12
|
42
|
19
|
12.5
|
||||
|
LFR 50/5-4 N
|
8
|
4
|
5
|
16
|
7
|
5
|
||||
|
LFR 50/5-5
|
8
|
5
|
5
|
17
|
7
|
5
|
||||
|
LFR 50/5 N
|
8
|
6
|
5
|
17
|
7
|
5
|
||||
|
LFR 50/8 N
|
25
|
6
|
8
|
24
|
11
|
7
|
||||
|
LFR 50/8-8 N
|
25
|
8
|
8
|
24
|
11
|
7
|
||||
Our Services
|
Samples
|
OK
|
|
OEM
|
OK
|
Packing & Shipping
|
package
|
1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet
|
|
Delivery Time
|
1-3 days after order
|
|
Shipping
|
by air to door address / by sea to sea port
|
