Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Weight:
-
3000 KG
-
Power:
-
7.5KW
-
Reed width:
-
170-380cm
-
Yarn range:
-
cotton;slub;worsted;filament
-
weaving speed:
-
450-650rpm
-
insertion rate:
-
1350m/min
-
weft:
-
4-8color,electronic selector/step motor
-
weft cutter:
-
mechanical
-
Shedding Type:
-
jacquard;electronic dobby;positive cam motion
-
pick density range:
-
2-20 picks/cm
Quick Details
-
Type:
-

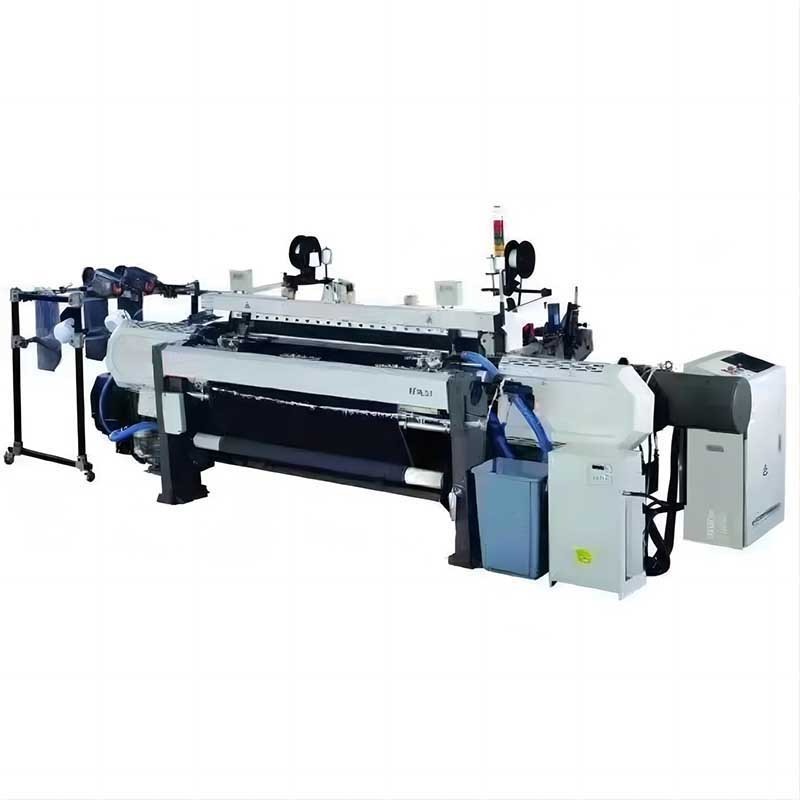

Rapier Loom
-
Production Capacity:
-
98%
-
Application:
-
Home textile fabric
-
Place of Origin:
-
Zhejiang, China
-
Weight:
-
3000 KG
-
Power:
-
7.5KW
-
Reed width:
-
170-380cm
-
Yarn range:
-
cotton;slub;worsted;filament
-
weaving speed:
-
450-650rpm
-
insertion rate:
-
1350m/min
-
weft:
-
4-8color,electronic selector/step motor
-
weft cutter:
-
mechanical
-
Shedding Type:
-
jacquard;electronic dobby;positive cam motion
-
pick density range:
-
2-20 picks/cm
Product Paramenters
|
Reed width
|
Nominal:170、190、200、210、220、230、240、260、290、320、340、360、380cm
|
|
Working reed width:
|
reduce 0-80cm from nominal width
|
|
Yarn range
|
Cotton and man-made fiber yarn:500tex(120Ne)
|
|
|
Slub & worsted:680tex(1.5Nm)~10tex(100Nm)
|
|
|
Filament:10dtex(9Td)~1650dtex(1500Td)
|
|
|
Fabric weight:20~850g/m2
|
|
Weaving speed
|
Designed speed:700rpm
|
|
|
Working speed:450~650rpm(rest with its reed space
|
|
|
Insertion rate: 1350m/min(rest with its reed
|
|
Weft
|
4-8 color, electronic selector with linear motor or step
|
|
|
Accumulator:FPD electronic accumulator
|
|
|
Weft cutter: mechanical
|
|
Power
|
Driving controlling:super direct motor or main motor controls start or stop through belt and electromagnetism clutch
|
|
Shedding
|
High-speed electronic dobby, 20 shafts max or positive cam motion (max 8 shafts)
|
|
|
Electronic jacquard
|
|
Beating
|
Conjugated cams of two sides drive sley
|
|
Insertion
|
Spatial crank system, free flight weft insertion
|
|
|
Continuous alternative current servo electronic let-off
|
|
Let-off
|
Continuous altenative current servo electronic let-off
|
|
|
Single beam、twin beam
|
|
|
Flange dia.:φ1000mm、φ800mm
|
|
Take-up
|
Continuous altenative current servo electronic take up
|
|
|
Cloth roller dia.φ600mm max.batcher φ1200mm
|
|
|
Pick density range:2-200 picks/cm
|
|
|
Leno selvage: Electronic sevage with Linear motor or step motor
|
|
|
Selvage cutter: mechanical , options electronic
|
|
|
Temple: LH &RH individual options full-width
|
|
|
Centralized pressure bath oil
|
|
Stop motion
|
Warp yarn: 6/8 line electronic contact stop motion
|
|
|
Weft yarn: electronic high-sensitive piezoelectricity inspection
|
|
|
Others: leno selvage yam and waste selvage yarn break then auto stop
|
|
|
Stop display: the panel shows the stop reason.
|
|
|
functional 4-color stop lights showing
|
|
Automatic
|
auto stop/auto pick-finding/cloth-fell compensation/auto adjust warp
|
|
|
tension/auto inspection/replacement/fault showing
|
|
Electric controlling
|
Controlling: functional CUP controlling system ,can control, scout, auto diagnose, information showing
|
|
|
Display:big LCD screen showingbidirectional communication. button operation,instant adjustment/parameter set making programme.
|
Product Details
More Products
Application scope
Label, Tie, Furnishings, Curtain, Sofa cloth, Bed Cloth, Towel, Carpet, Velvet, Craft Brocade, Garment Fabric, Lining, Saree, Silk Fabric, Leno fabric and so on.
Applicable Machine
Suitable for all kinds of looms at home and abroad, like rapier loom, air jet loom, water jet loom, projectile loom.
