- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
OEM, OEM
-
Model Number:
-
CLASS 1, JFB,JDB
-
Material.. a.:
-
Bronze
-
Material.. b.:
-
Graphite
-
Type.. a.:
-
Sleeve
-
Type.. b.:
-
Flanged
-
Standard to be.. a.:
-
DIN1494
-
Standard to be.. b.:
-
Euro Standard
-
Standard to be.. c.:
-
Japan Standard
-
Samples:
-
Charged of sample oilless bronze bushings
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops
-
Type:
-
sleeve
-
Material:
-
Bronze
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
OEM, OEM
-
Model Number:
-
CLASS 1, JFB,JDB
-
Material.. a.:
-
Bronze
-
Material.. b.:
-
Graphite
-
Type.. a.:
-
Sleeve
-
Type.. b.:
-
Flanged
-
Standard to be.. a.:
-
DIN1494
-
Standard to be.. b.:
-
Euro Standard
-
Standard to be.. c.:
-
Japan Standard
-
Samples:
-
Charged of sample oilless bronze bushings

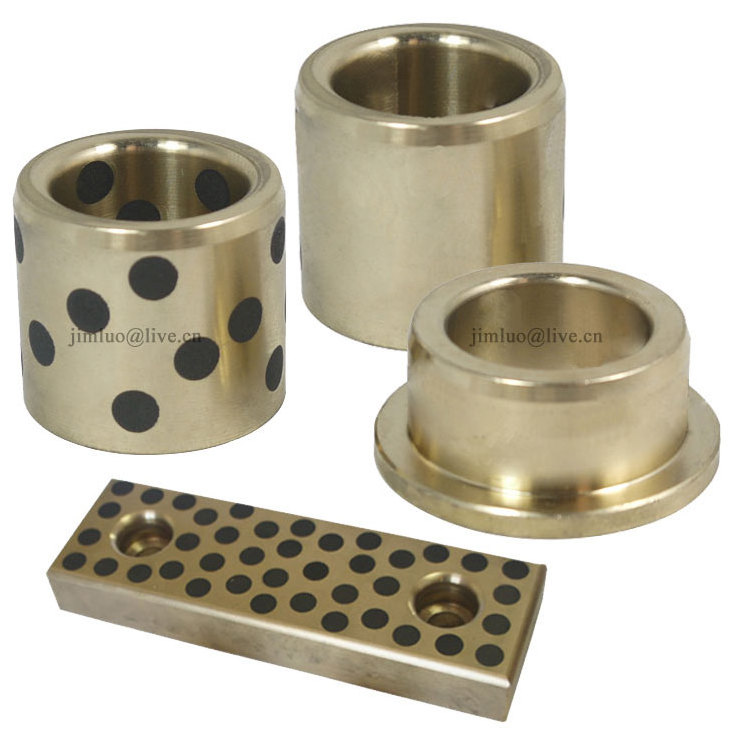

graphite bronze sleeve bush
- Introduction
Bi-Metal bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear.
It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.
- Features:
1. High fatigue and impact bearing capacity
2. High loading capacity
3. Lubricating grooves design
- Specifications:
|
Material |
JF-800 |
Steel+Bronze(CuSn10Pb10) |
|
JF850 |
Steel+ Bronze(CuSn6Zn6Pb3) |
|
|
JF-720 |
Steel+ Bronze(CuSn4Pb24) |
|
|
JF-20 |
Steel+ Bronze(AlSn20Cu) |
|
|
JF700 |
Steel+ Bronze(CuPb30) |
|
|
Load capacity |
|
150N/mm 2 |
|
Speed limit |
Oil lubricating |
2.5m/s |
|
Dry Friction |
0.4m/s |
|
|
PV value limit |
Oil lubricating |
10N/mm 2 .m/s |
|
Dry friction |
2.8 N/mm 2 .m/s |
|
|
Mating axis required |
Hardness |
>=48~53HRC |
|
Roughness |
Ra=0.16~0.63 |
|
|
Friction coef |
|
0.05-0.22 |
|
Working temperature max. |
|
200 °C |
- Types:
- Size List
- Production Flow
- Plant
- Production Line
- Inspection
- Packings:
Other busings:
Solid bronze bushing / Sintered bushing / DU composit bushing / Wrapped bronze bushing/DX composit bushing
Our sliding bearings including:
|
SF-1(du) oilless bearing bushing |
|
SF-2(dx) slide bearing bushing |
|
FB090(FB090G) bronze bushing |
|
FB092 bronze bushing |
|
JDB,JFB solid graphite lubricating bushing |
|
JF bi-metal bushing |
|
FU sintered bronze or iron bushing |
|
FZ POM/Al/Cu ball cage retainer |
Also we can make customized bushings as per your drawings or samples.
Welcome inquiry us for details so that we can offer you related information at the first time!
