swage-lok 1 inch screw type thread connect VCR series female and male part hydraulic fitting hydraulic quick coupler

swage-lok 1 inch screw type thread connect VCR series female and male part hydraulic fitting hydraulic quick coupler

FOB Reference Price: Get Latest Price

≥50 Pieces

US $14.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Pressure:: Hydraulic

Structure:: Tube

Weight:: 1.77

Power:: NO

Dimension(L*W*H):: 15*4*4 CM

Material:: Carbon Steel

Application:: Engineering vehicle

Body size:: 1 inch

Rate pressure:: 160 Mpa

Rated flow:: 30L/Min

Temperture range:: -25℃ to +125 ℃

Packing:: White box

Product name:: Hydraulic quick couplings

Color:: According to customers' needs

Delivery time:: 7-15 Days

Quick Details

Warranty:: 1 Year

Brand Name:: Free fit

Place of Origin:: Jiangsu.China

Pressure:: Hydraulic

Structure:: Tube

Weight:: 1.77

Power:: NO

Dimension(L*W*H):: 15*4*4 CM

Material:: Carbon Steel

Application:: Engineering vehicle

Body size:: 1 inch

Rate pressure:: 160 Mpa

Rated flow:: 30L/Min

Temperture range:: -25℃ to +125 ℃

Packing:: White box

Product name:: Hydraulic quick couplings

Color:: According to customers' needs

Delivery time:: 7-15 Days

Product Description

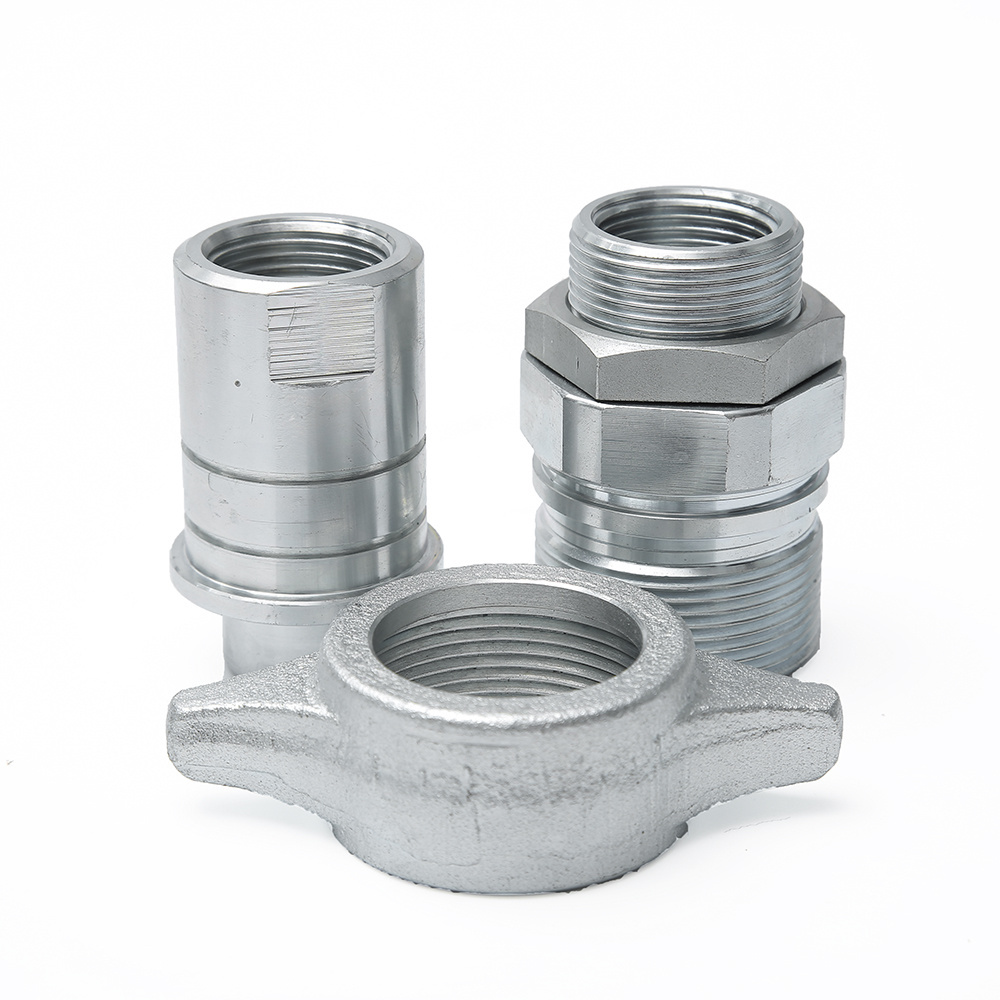

VCR hydraulic quick Couplings use a screw thread connection. The female coupling has a wing nut sleeve which enables operators to connect the couplings by hand, even when there is low residual pressure in the line.

Hydraulic quick coupling are designed for use on mobile plant such as commercial vehicle trailers, agricultural equipment and construction plant.

Features and Materials

Materials:

1. Body: steel (Yellow zinc-chromate plating)

2.Seal:NBR

3. Thread: BSPP(G) or NPT female thread, other thread available for customized order

4.Wide Variety of Materials Available, we can design and change the coupling according to Customers' requirement

Features:

1. Heavy-duty design as standard

2. Heavy-dust wing nut is ruggedly built specifically to withstand the hammer blows commonly used to tighten and loosen thin coupler.

3. Steel nipple body is hardened for durability

4. Assembled valve seal can permits full pressure connect and disconnect, without seal washout

5. Connect with pressure up to 5 MPA is possible

6. Disconnexion by unscrewing the two parts, s hut off by poppet valve. This c oupling is mainly applied for Agriculture, Industry, hydraulic tools, Earth moving, Building & Construction.

Specifications
