Quick Details
-
Productivity:
-
10-15m3
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAYA
-
Weight:
-
950 kg
-
Dimension(L*W*H):
-
2100*800*1400
-
Product name:
-
HUAYA brandnew small cement concrete pump machine
-
Keyword:
-
Concrete Pump
-
Brand:
-
HUAYA
-
Color:
-
Customized
-
Bore*trip:
-
140*600mm
-
Pipe diameter:
-
80(76)
-
The largest outlet pressure:
-
11Mpa
-
Unloading distance:
-
>1260mm
-
Aggregate particle size of the largest:
-
≤20(≤10)mm
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
80-100m
-
Max. horizontal conveying distance:
-
160m
-
Productivity:
-
10-15m3
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAYA
-
Weight:
-
950 kg
-
Dimension(L*W*H):
-
2100*800*1400
-
Product name:
-
HUAYA brandnew small cement concrete pump machine
-
Keyword:
-
Concrete Pump
-
Brand:
-
HUAYA
-
Color:
-
Customized
-
Bore*trip:
-
140*600mm
-
Pipe diameter:
-
80(76)
-
The largest outlet pressure:
-
11Mpa
-
Unloading distance:
-
>1260mm
-
Aggregate particle size of the largest:
-
≤20(≤10)mm

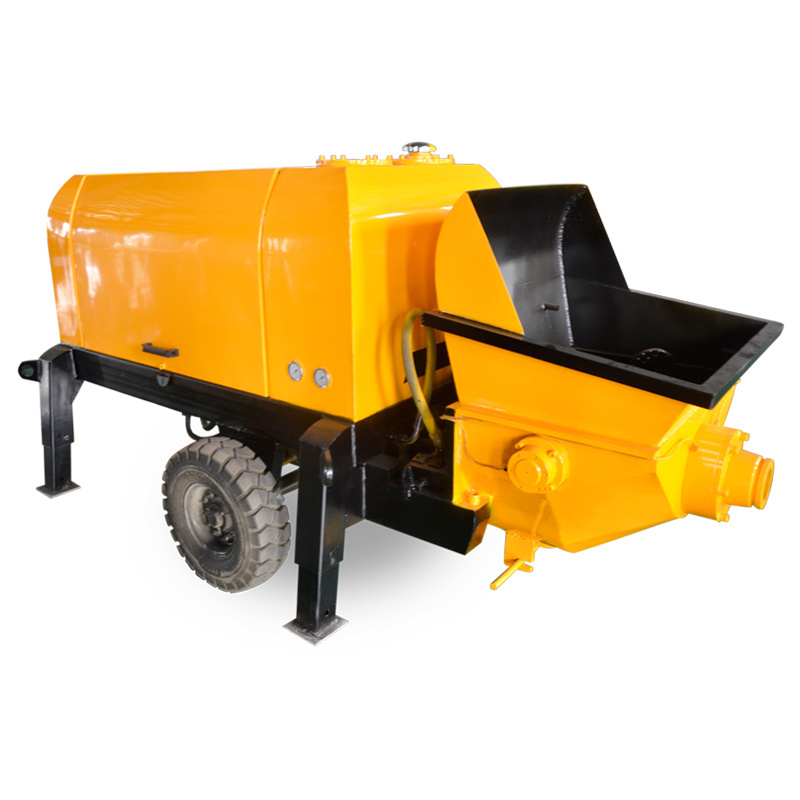

HUAYA brandnew small cement concrete pump machine
1.Distribution valve system is S valve to make sure fine stone concrete pumping smoothly
2.Power system, hydraulic system and pumping system match a reasonable, effective play the motor power
3.High suction efficiency, the actual pumping efficiency reached the theoretical value of 80% or more
4.Air cooling system for hydraulic oil, good performance and convenient
1.deliver warm or lightweight insulation foam cement, mortar, small aggregate concrete;
2.deliver and spray fire protection, thermal insulation material;
3.deliver and spray ecological environment in the green soil;
4.deliver and spray the plain concrete, fiber concrete in various projects construction;
5.pressure grouting for various kinds of foundation piles.
|
Parameter |
|
|
Motor |
22KW |
|
Output |
10-15m3/h |
|
The max diameter of aggregate |
20mm |
|
The convey vertical distance |
80-100m |
|
The convey level distance |
160m |
|
Pipe diameter |
76mm |
|
L*W*H |
2100*800*1400mm |
|
Weight |
950KG |
